Exploded View

WARNING: This page is about a different car, the 2019 Infiniti Q70L. However, it is still accessible from the selected car via links, so may be relevant.

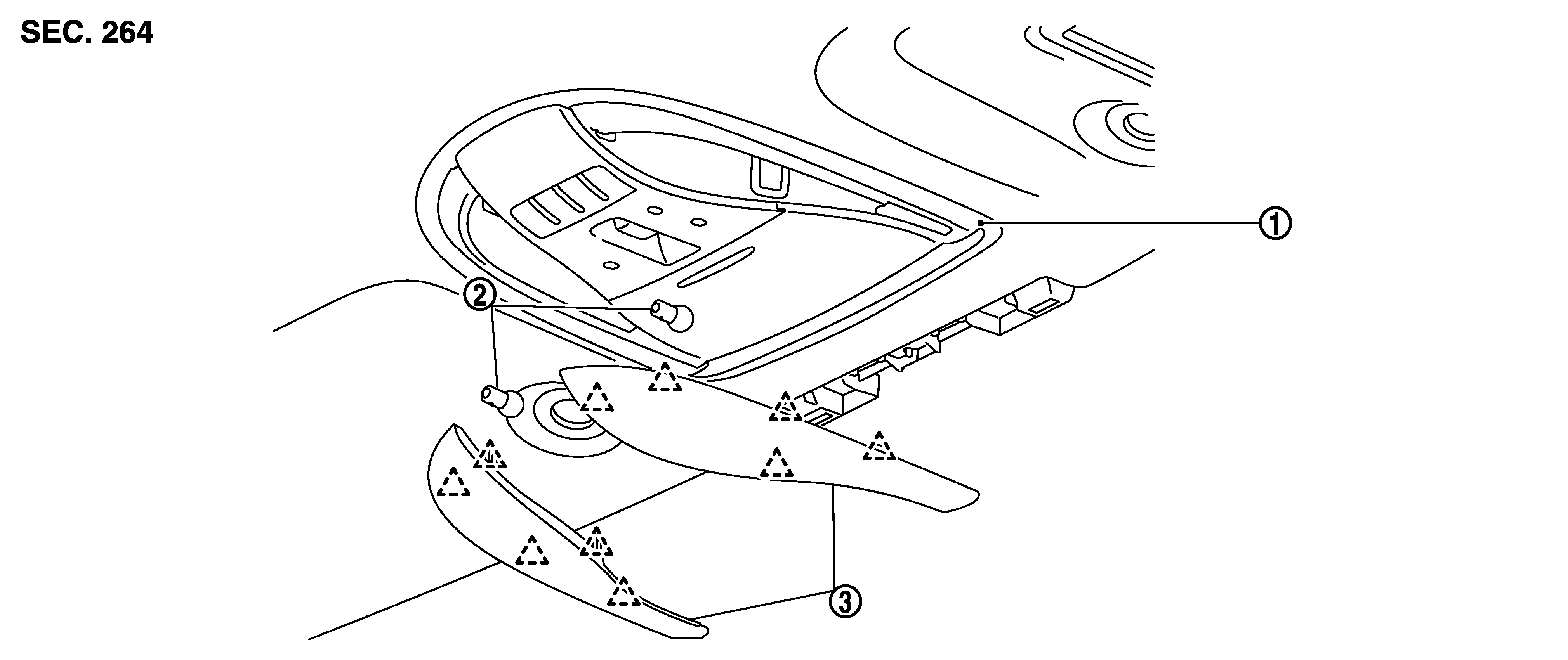

GNSJMLIA0808Z-808Courtesy of NISSAN NORTH AMERICA, INC.

1.

Map lamp assembly

2.

Bulb

3.

Lens

SYMBOL

: Pawl
