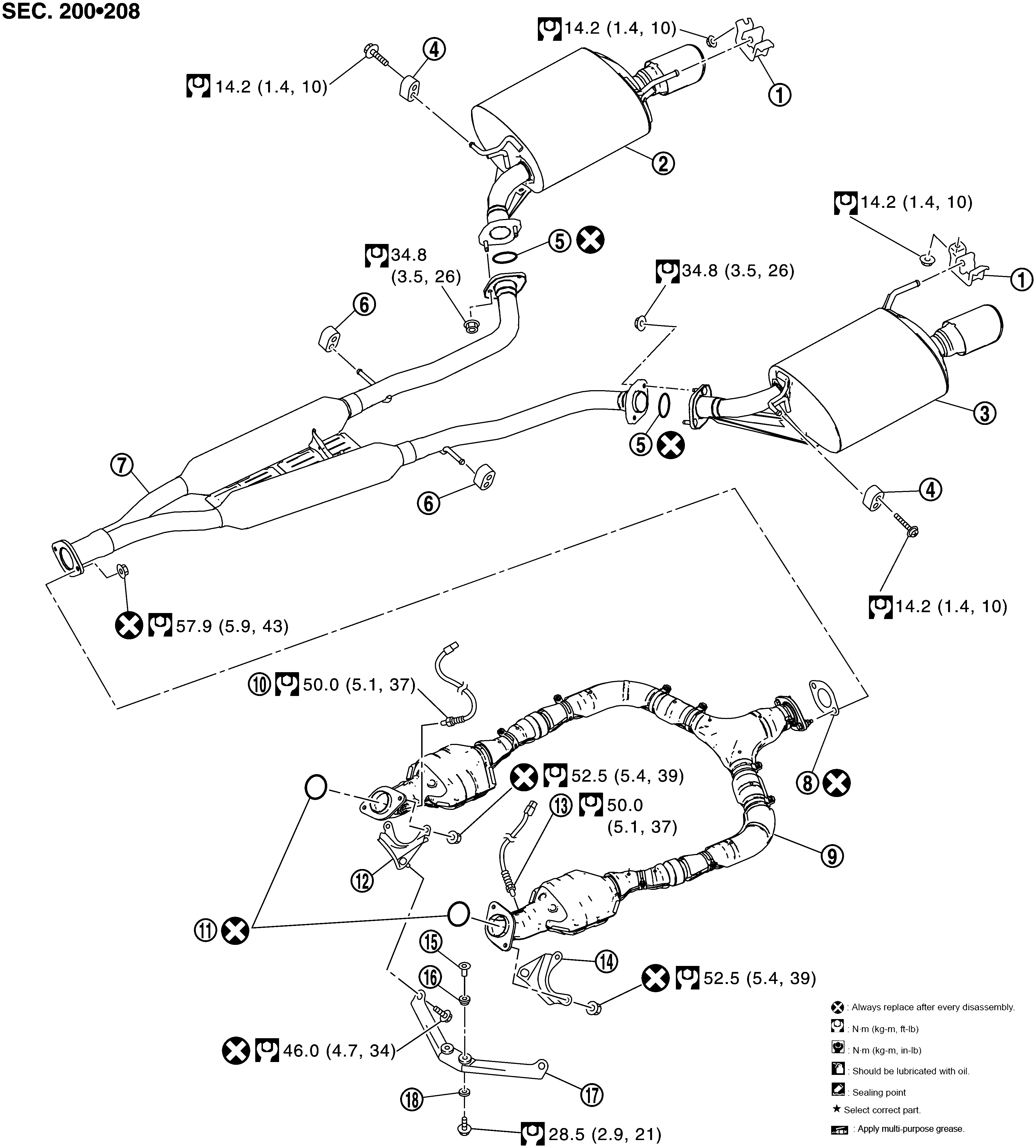

Exploded View

1.

Mounting rubber

2.

Main muffler (RH)

3.

Main muffler (LH)

4.

Mounting rubber

5.

Ring gasket

6.

Mounting rubber

7.

Center muffler

8.

Gasket

9.

Exhaust front tube

10.

Heated oxygen sensor 2 (bank 2)

11.

Ring gasket

12.

Mounting bracket

13.

Heated oxygen sensor 2 (bank 1)

14.

Mounting bracket

15.

Collar

16.

Grommet

17.

Mounting bracket

18.

Grommet

: N.m (kg-m, ft-lb)

: Always replace after every disassembly.
