Exploded View

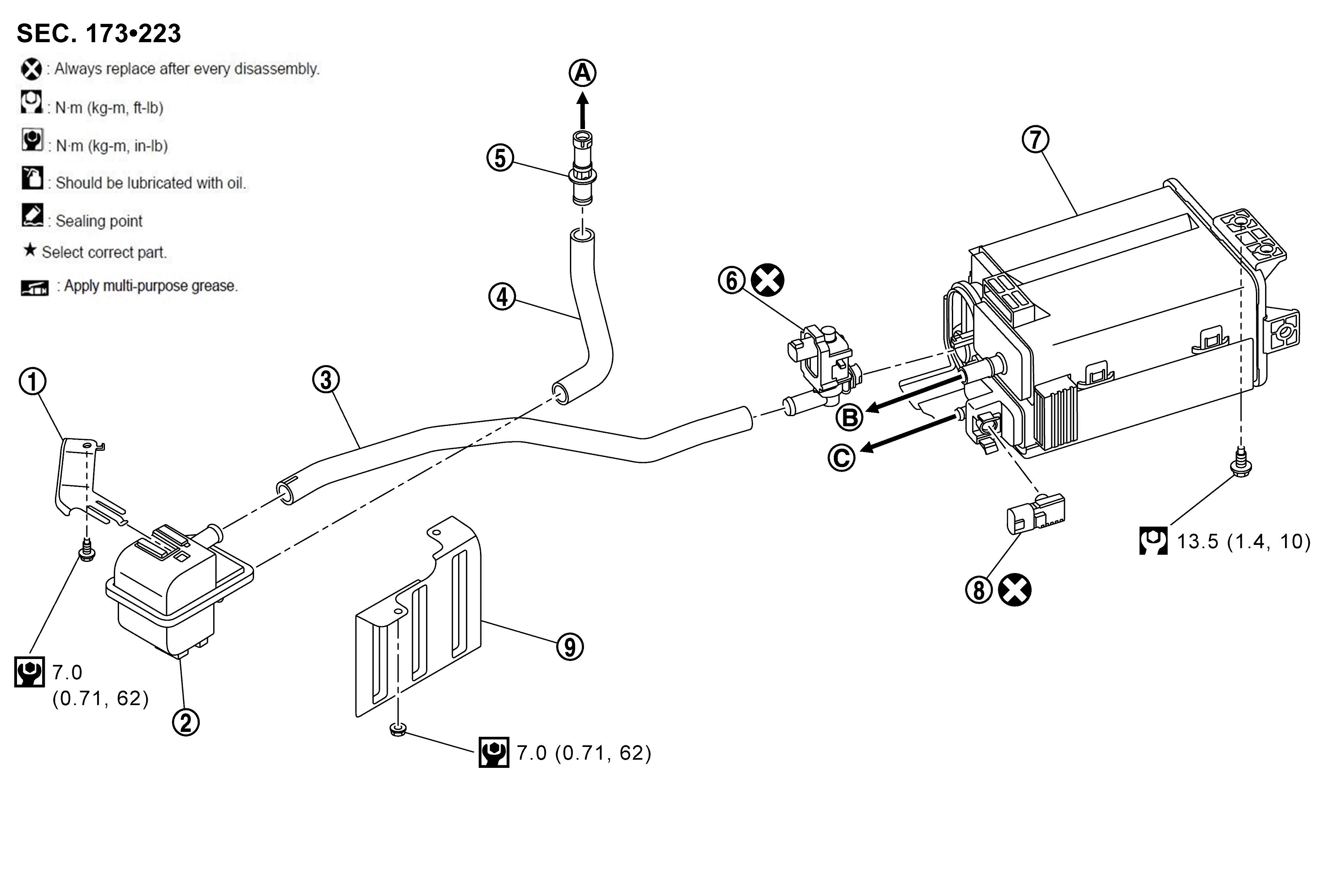

Fig 1: Evap Canister Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Bracket	Canister filter	Vent hose
Vent hose	Connector	EVAP canister vent control valve
EVAP canister	EVAP control system pressure sensor	Insulator
To floor panel	To fuel tank	To EVAP canister purge volume control solenoid valve
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
