Exploded View

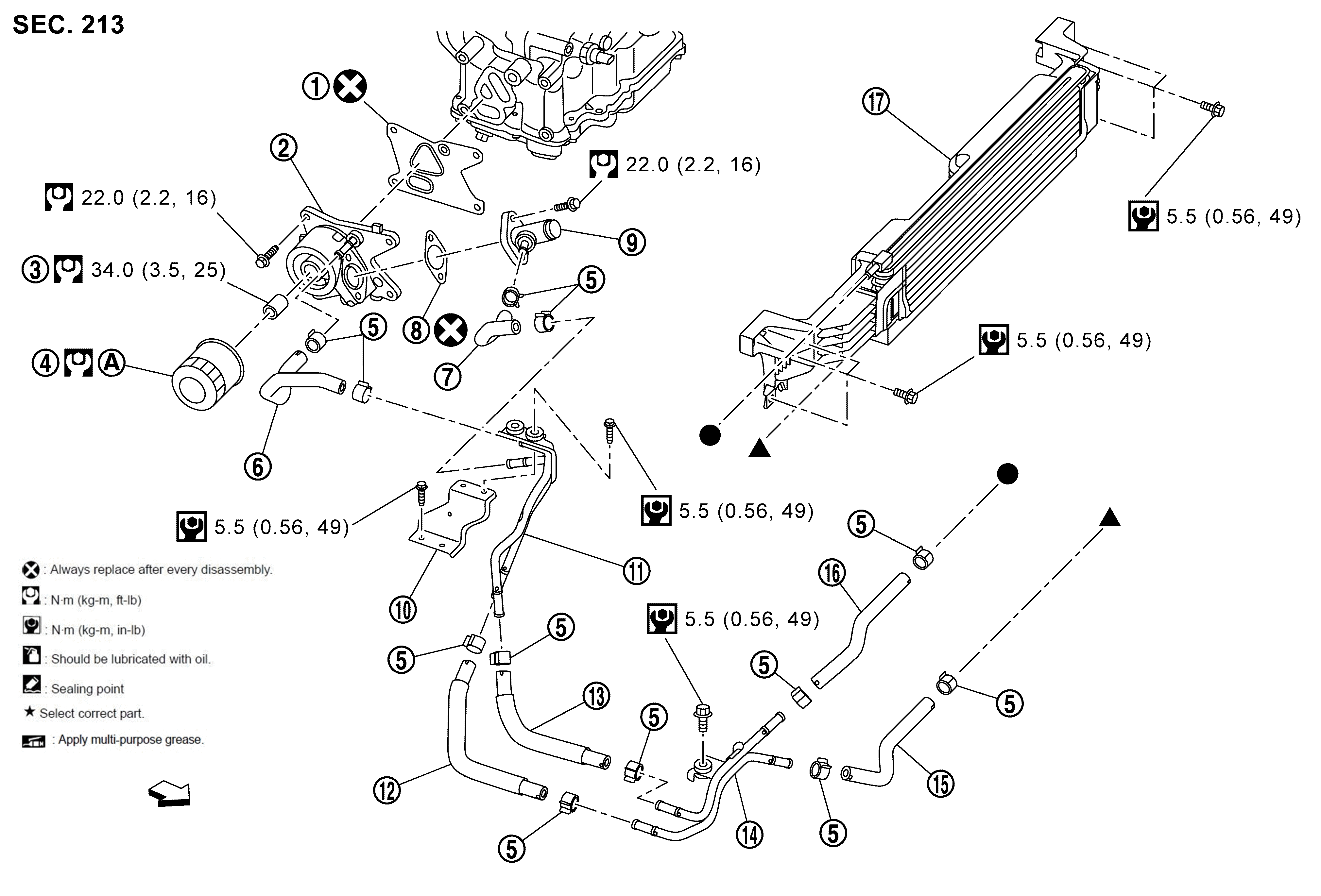

Fig 1: Oil Cooler 2WD With Torque Specifications

GNSJSBIA9871GB-871

Courtesy of NISSAN NORTH AMERICA, INC.

	Gasket		Oil cooler bracket		Connector bolt
	Oil filter		Clamp		Oil cooler hose 1
	Oil cooler hose 2		Gasket		Relife valve
	Bracket		Oil cooler pipe 1		Oil cooler hose 3
	Oil cooler hose 4		Oil cooler pipe 2		Oil cooler hose 5
	Oil cooler hose 6		Oil cooler
	Comply with the installation procedure when tightening. Refer to Removal and Installation
	: Engine front
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
	: Always replace after every disassembly.
, Indicates that the part is connected at points with same symbol in actual vehicle.

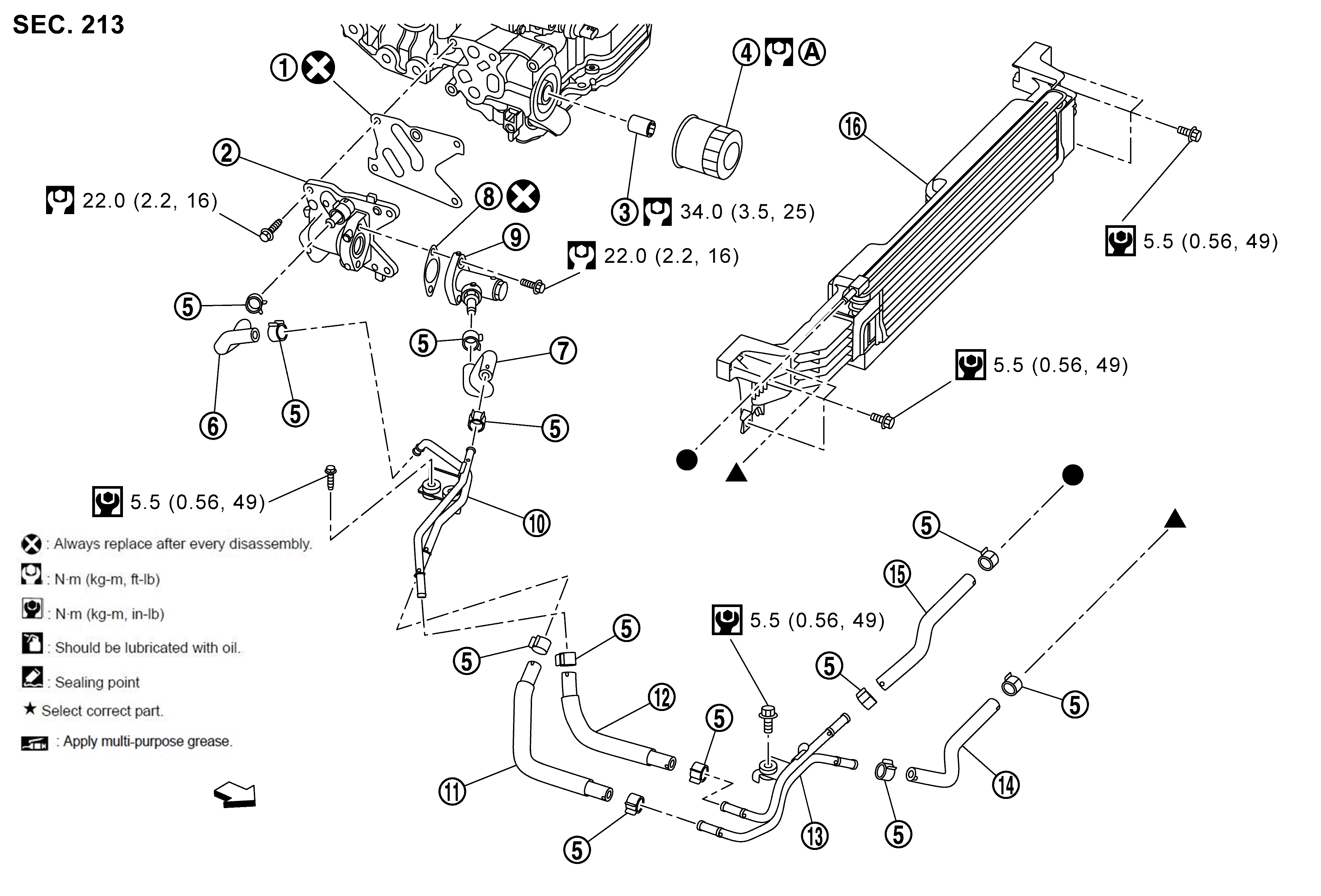

Fig 2: Oil Cooler AWD With Torque Specifications

GNSJSBIA9872GB-872

Courtesy of NISSAN NORTH AMERICA, INC.

	Gasket		Oil cooler bracket		Connector bolt
	Oil filter		Clamp		Oil cooler hose 1
	Oil cooler hose 2		Gasket		Relife valve
	Oil cooler pipe 1		Oil cooler hose 3		Oil cooler hose 4
	Oil cooler pipe 2		Oil cooler hose 5		Oil cooler hose 6
	Oil cooler
	Comply with the installation procedure when tightening. Refer to Removal and Installation
	: Engine front
	: N.m (kg-m, ft-lb)
	: N.m (kg-m, in-lb)
	: Always replace after every disassembly.
, Indicates that the part is connected at points with same symbol in actual vehicle.
