Exploded View: Removal

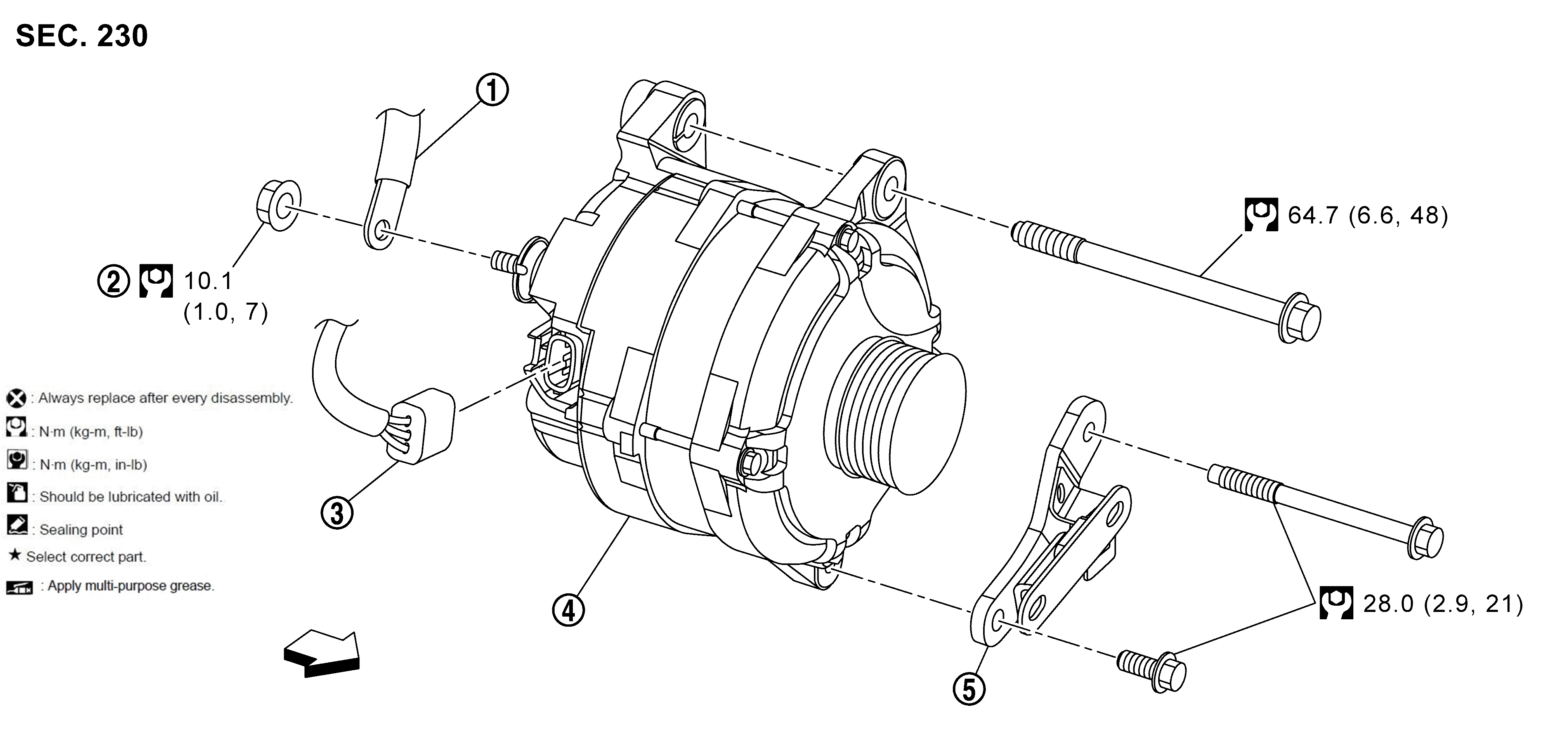

Fig 1: Alternator Components With Torque Specification
GNSJMMIA2245GB-245SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

"B" terminal harness

SYMBOL

"B" terminal nut

SYMBOL

Alternator connector

SYMBOL

Alternator

SYMBOL

Alternator stay

SYMBOL

: Vehicle front

SYMBOL

: N.m (kg-m, ft-lb)
