Removal and Installation: Removal
- Remove air duct (inlet). Refer to Exploded View .
- Remove hoodledge cover (RH) and cowl top cover (RH). Refer to Exploded View .
- Remove air cleaner body (bank 1). Refer to Exploded View .
- Remove clip of water hose 1 installed to ECM bracket.
- Disconnect the ECM harness connectors. Refer to HARNESS CONNECTOR (LEVER LOCKING TYPE) in Harness Connector .

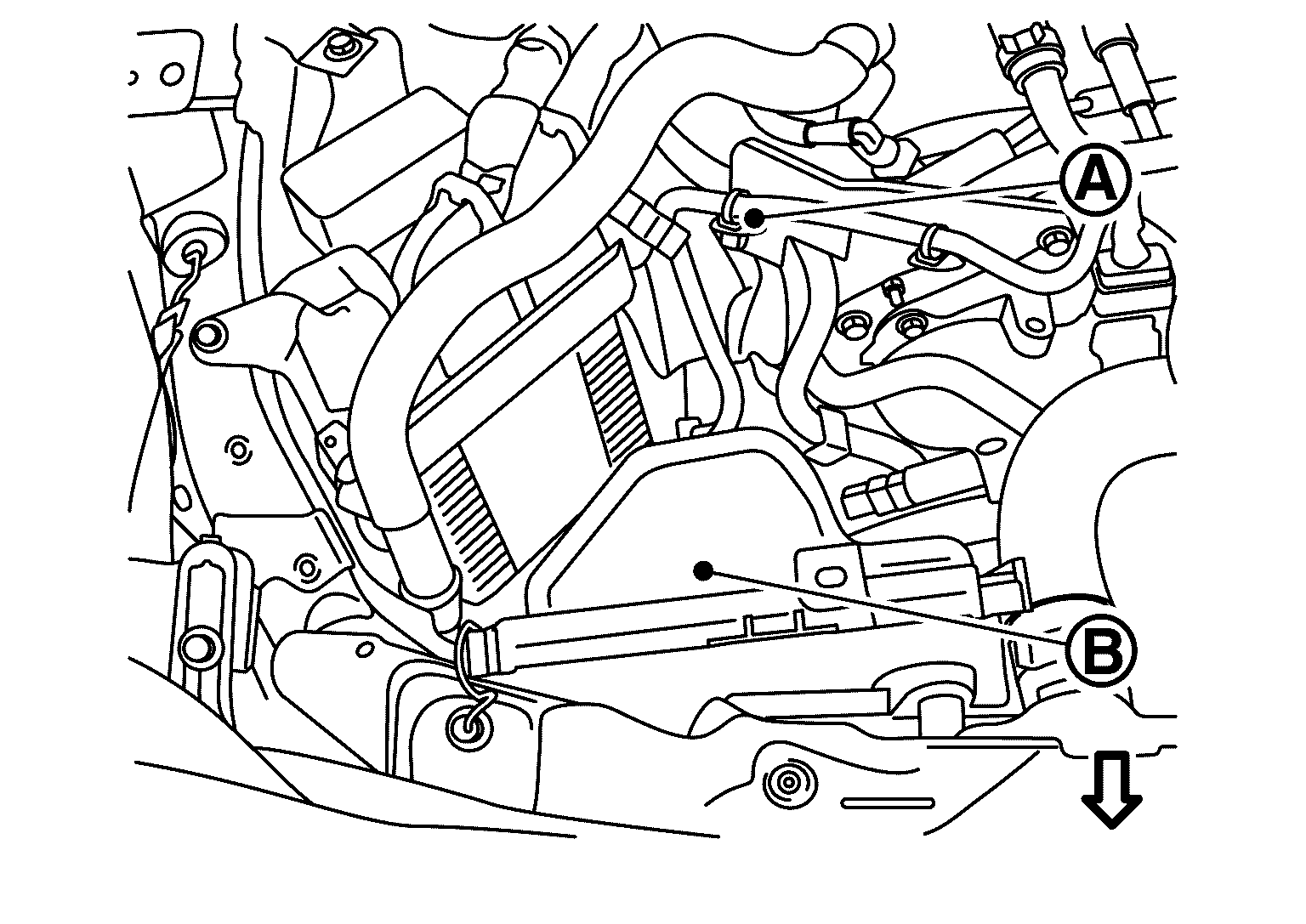

- Disconnect harness (A) installed to air cleaner cover (bank 1) (B) and move air cleaner cover (bank 1) to secure work space.
- Remove bracket nut of water pipe installed to ECM bracket.
-
NOTE: Do not bend water hose 1 forcibly.
- Remove the bolts of the ECM bracket.
- Remove the ECM assembly from the vehicle.
- Remove the ECM from the bracket.
