Engine Oil Level

NOTE: Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop it and allow 10 minutes before checking.
  1. Pull out oil level gauge and wipe it clean.

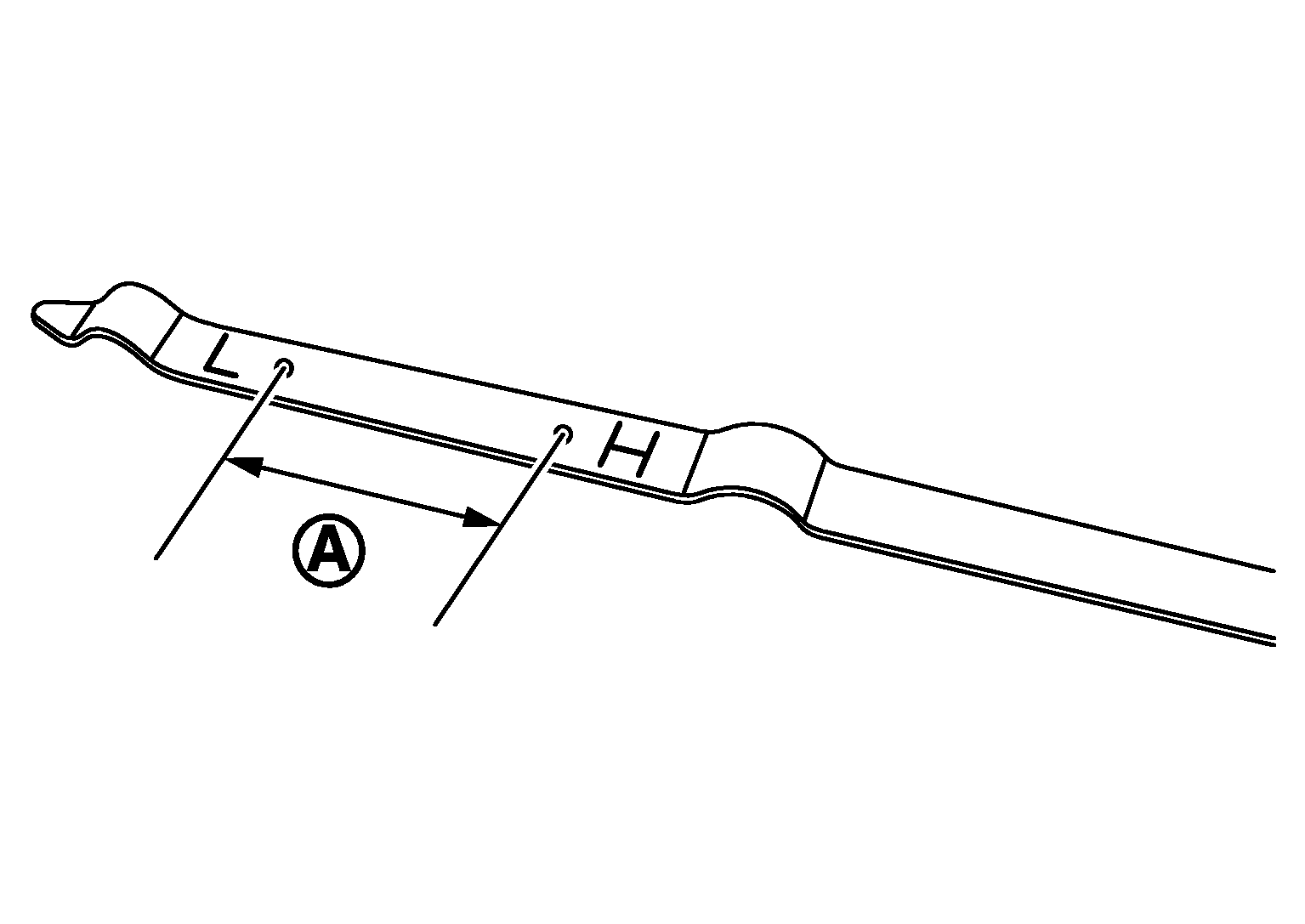

  2. Insert oil level gauge and check the engine oil level is within the range SYMBOL shown in the illustration.
    GNSJPBIA0070Z-070Courtesy of NISSAN NORTH AMERICA, INC.
  3. If it is out of range, adjust it.

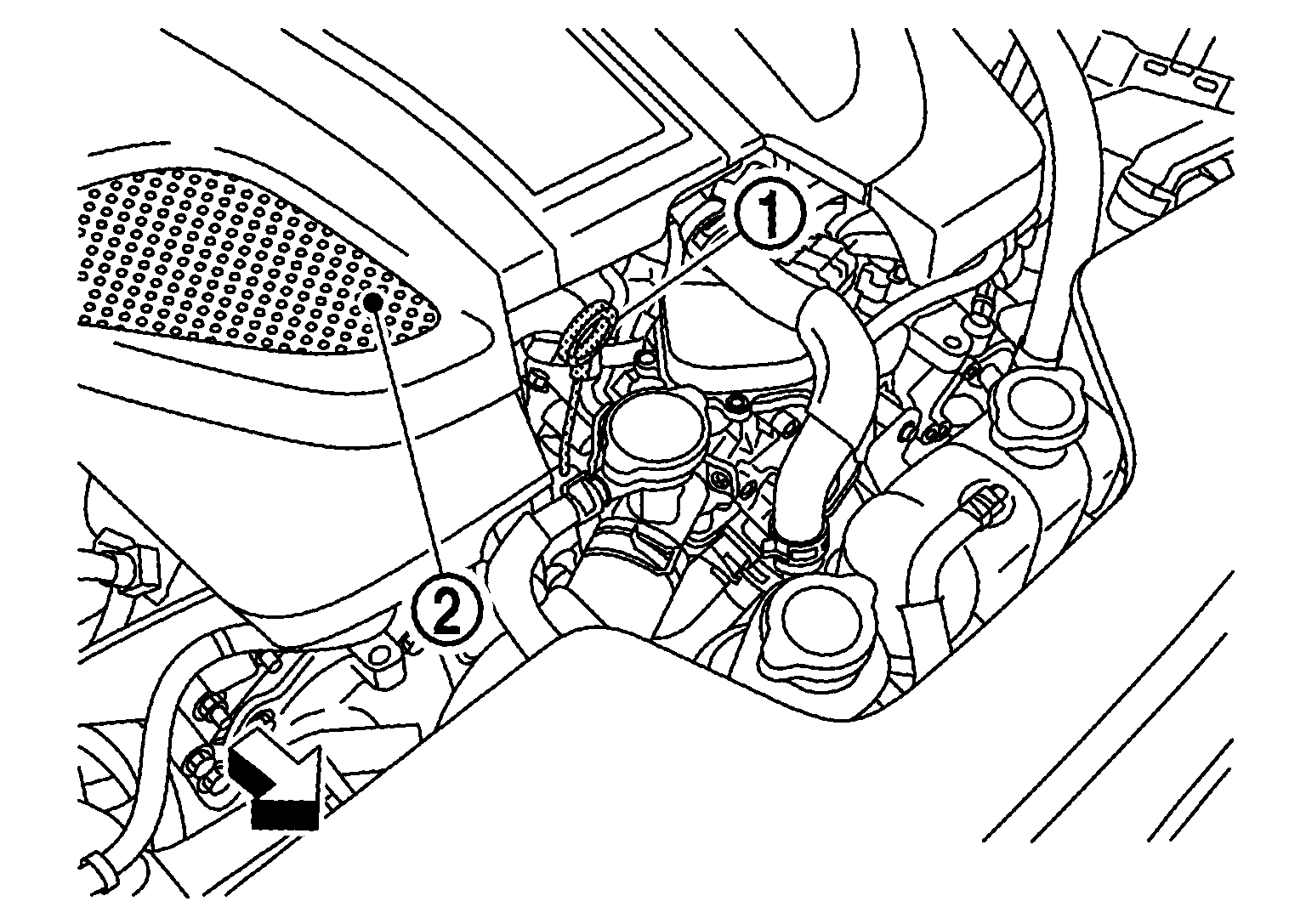

    NOTE: When checking the engine oil level, insert oil level gauge SYMBOL with its tip aligned with oil level gauge guide.
    GNSJSBIA9972Z-972Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Engine cover

    SYMBOL

    : Engine front
