Removal and Installation: Removal

  1. Remove steering column cover. Refer to Removal and Installation .

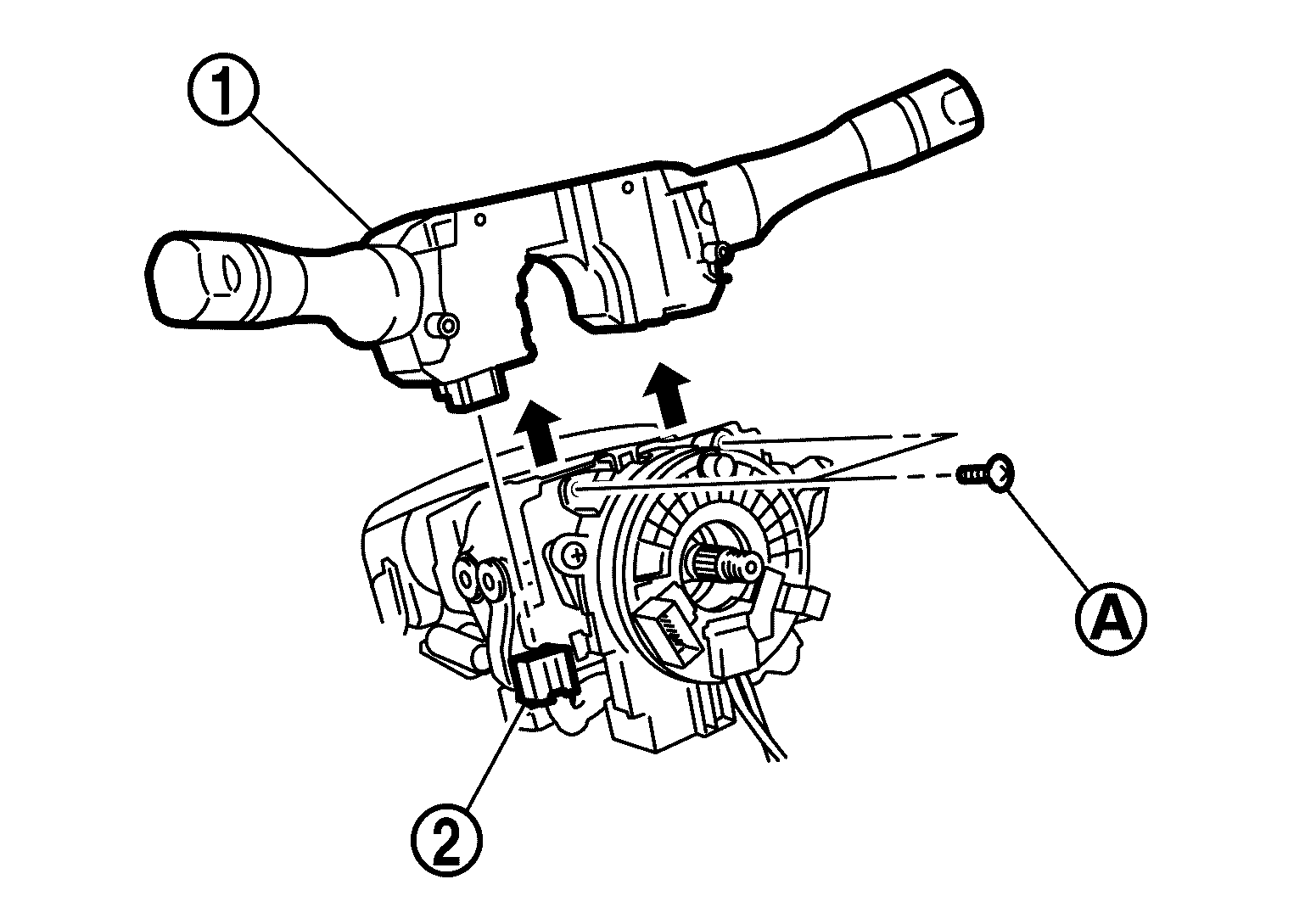

  2. Remove screws SYMBOL and disconnect connector SYMBOL then pull up combination switch SYMBOL to remove it.
GNSJMMIA1168Z-168Courtesy of NISSAN NORTH AMERICA, INC.
