Component Location

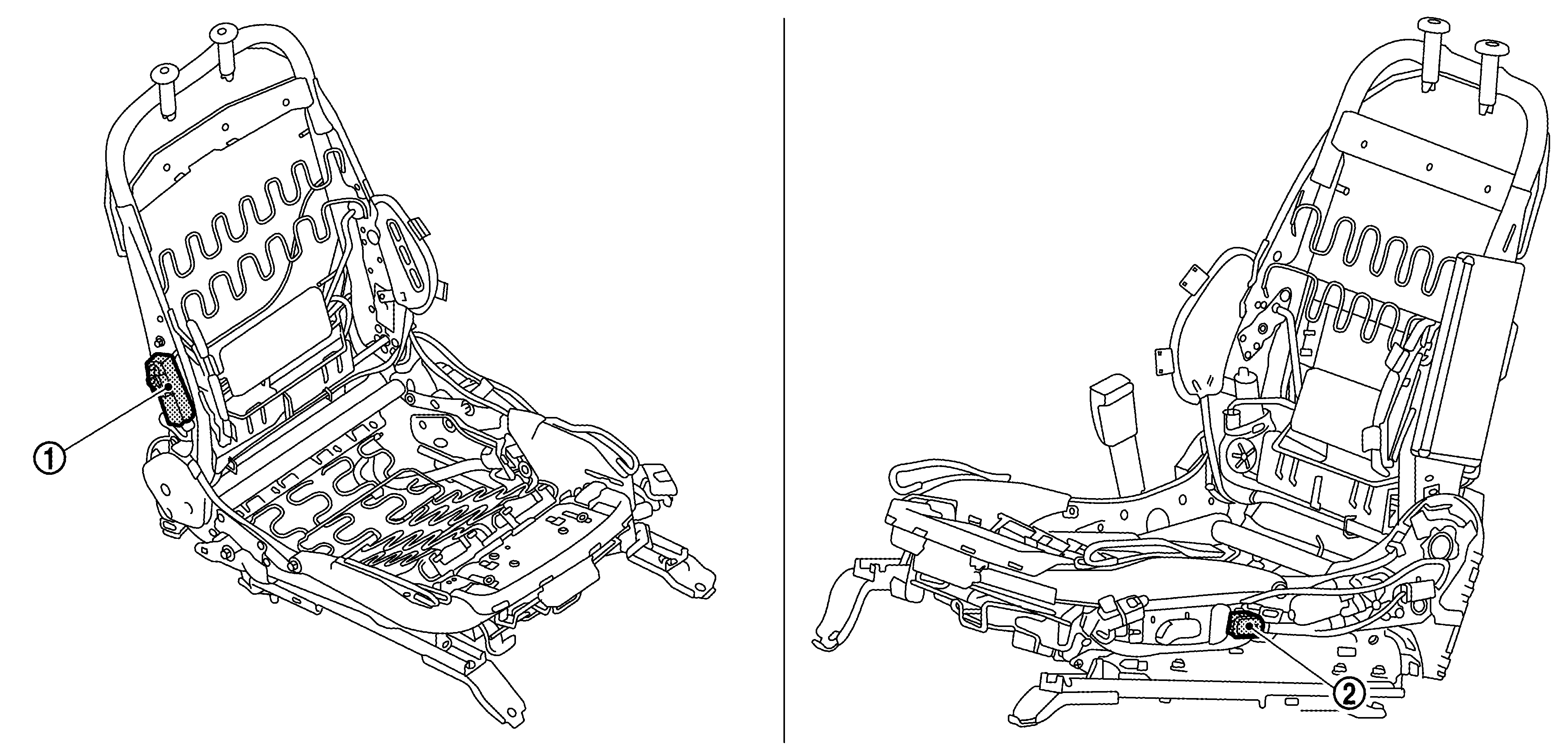

GNSJMJIA8958Z-958Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

Lumbar support motor

With the power supplied to lumbar support switch, operates the forward and backward movement of seatback support.

SYMBOL

Lumbar support switch

Refer to Lumbar Support Switch .
