Check Ignition Timing

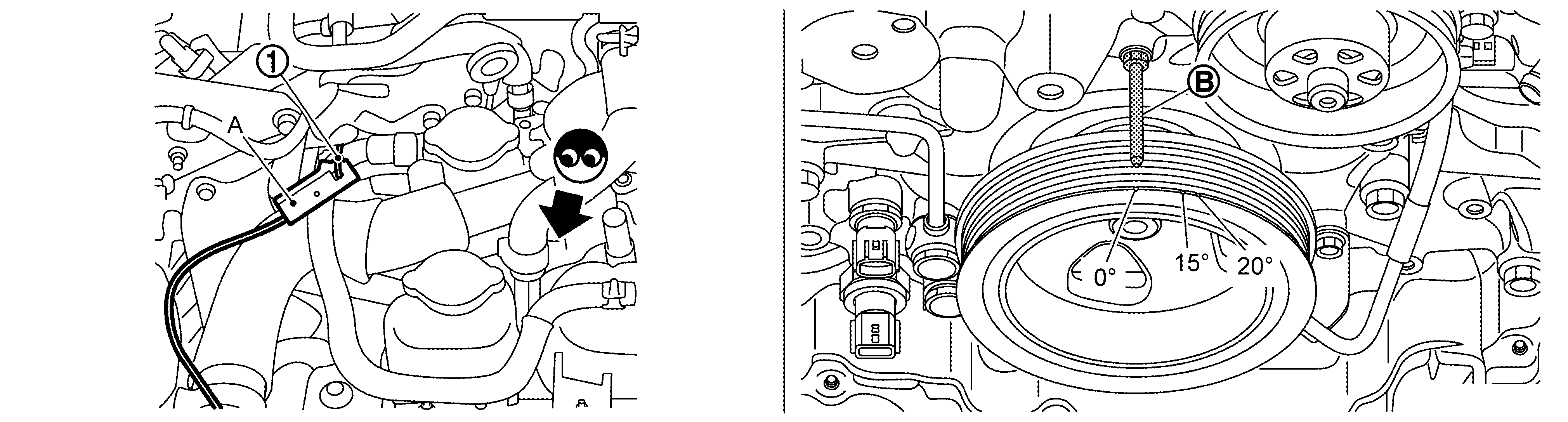

  1. Attach timing light (A) to loop wire as shown.
    GNSJSBIB0266Z-266Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL .

    Loop wire

    SYMBOL .

    Timing indicator
  2. Check ignition timing.

    Specification

    : Ignition Timing
