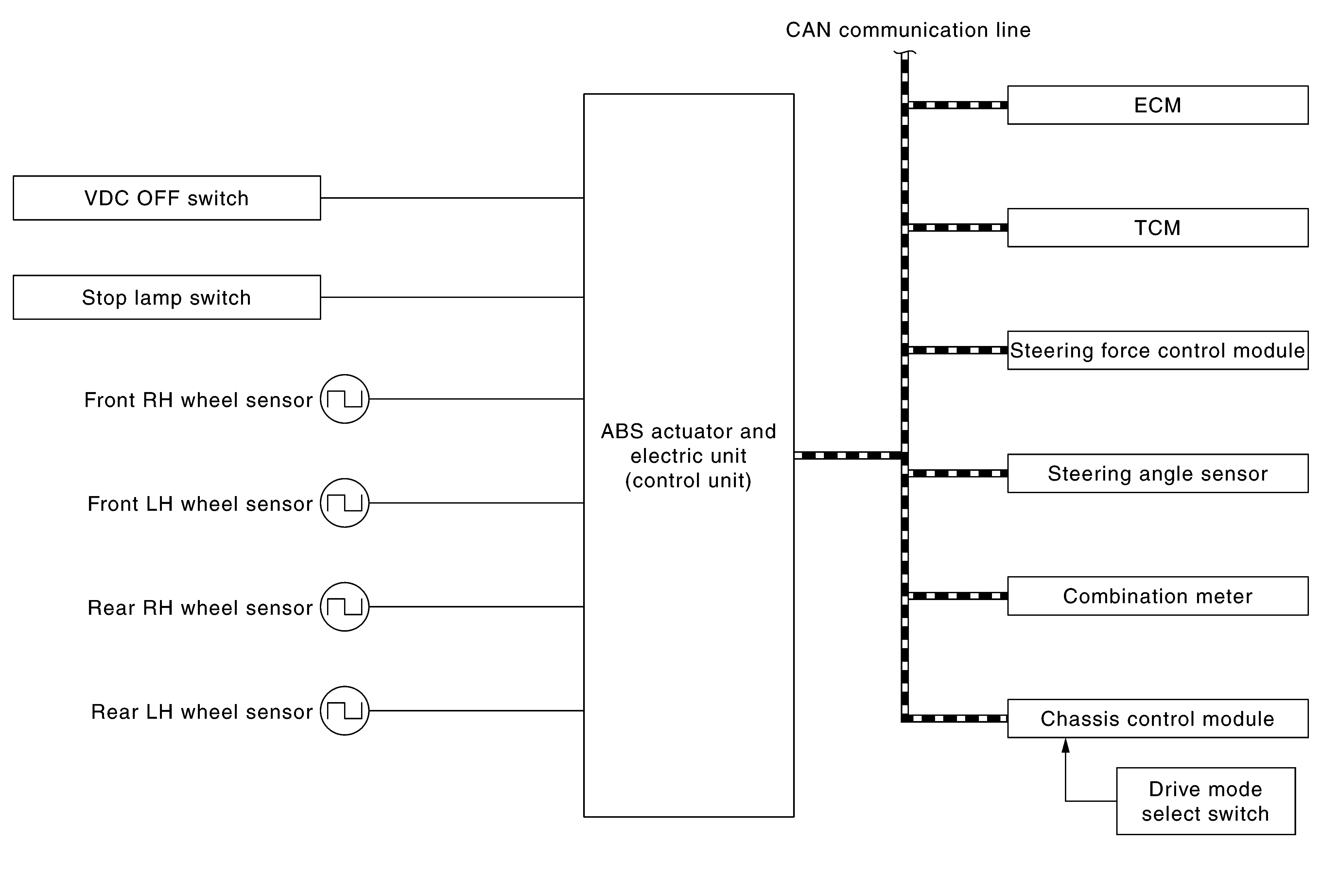

System Diagram (For VR30DDTT Engine Models)

NOTE: Steering force control module is applied to models with Direct adaptive steering system.

G09159287

Courtesy of NISSAN NORTH AMERICA, INC.
