Removal and Installation: Removal

  1. Remove the rear side finisher LH. Refer to Removal and Installation .

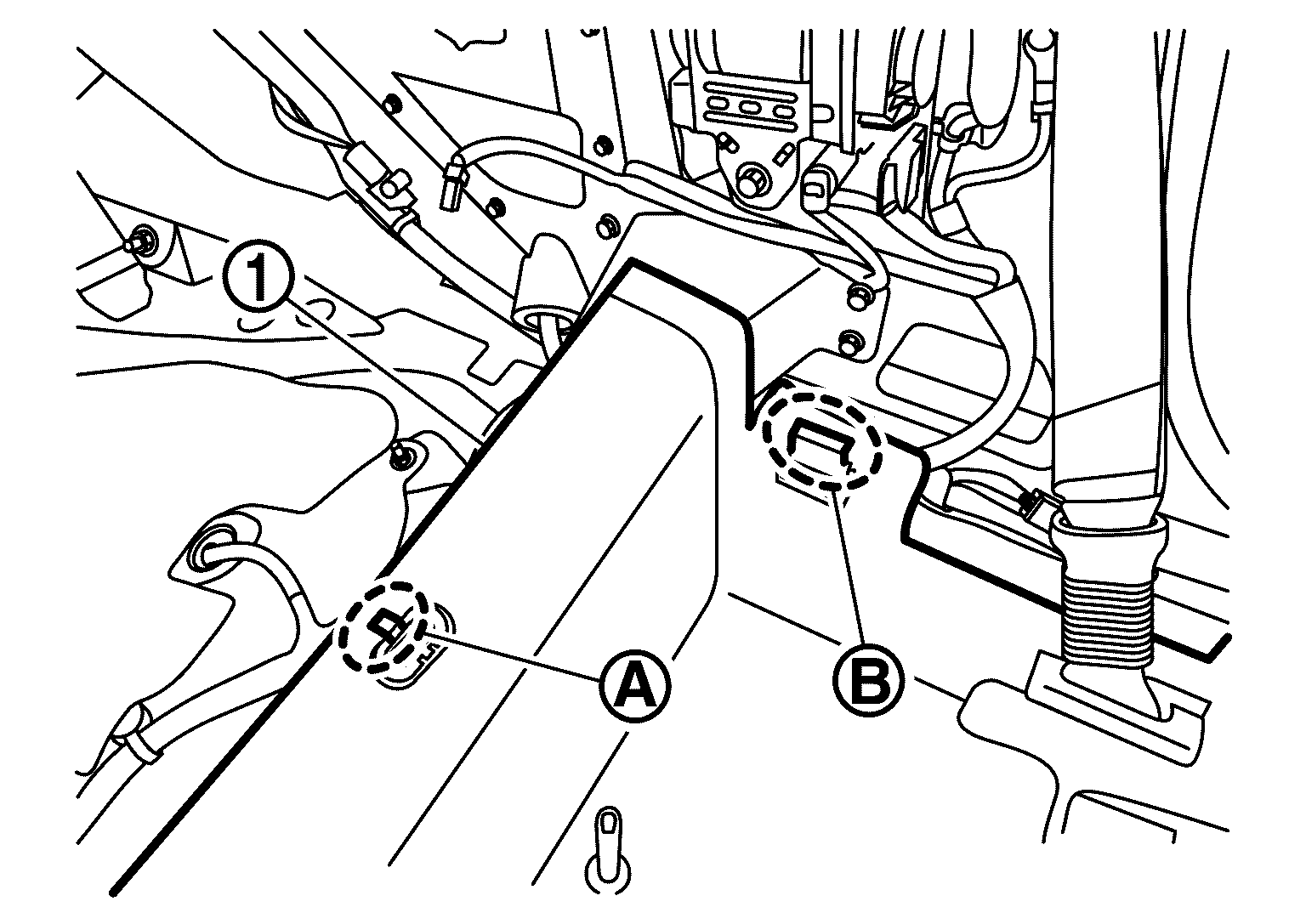

  2. Remove the floor carpet assembly SYMBOL from pawls (SYMBOL and SYMBOL ).
    GNSJSBIB0546Z-546Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolts (SYMBOL and SYMBOL ) and remove the rear floor gusset LH SYMBOL .
    GNSJSBIB0547Z-547Courtesy of NISSAN NORTH AMERICA, INC.

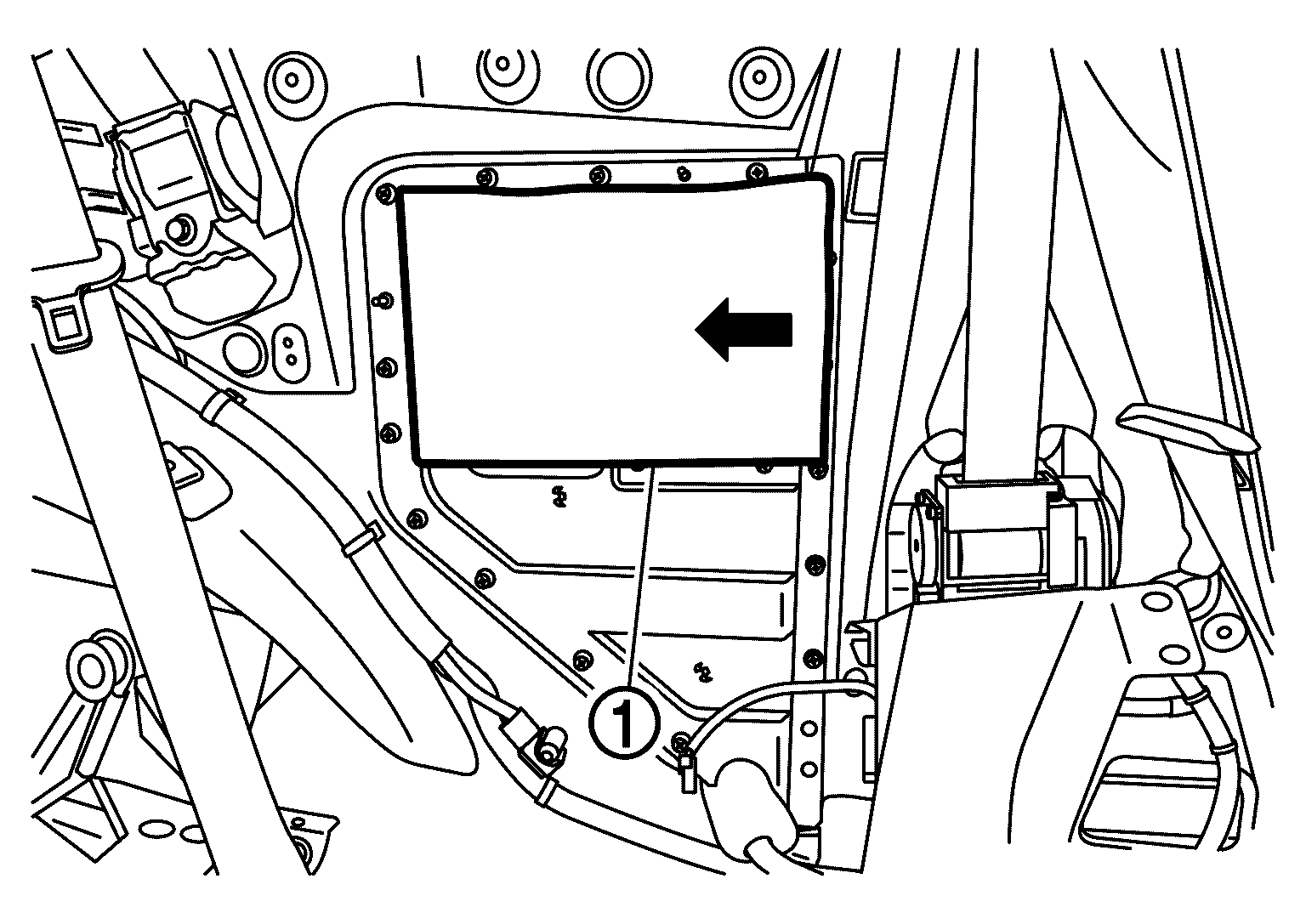

  4. Turn up the noise suppressor SYMBOL .
    GNSJSBIB0548Z-548Courtesy of NISSAN NORTH AMERICA, INC.

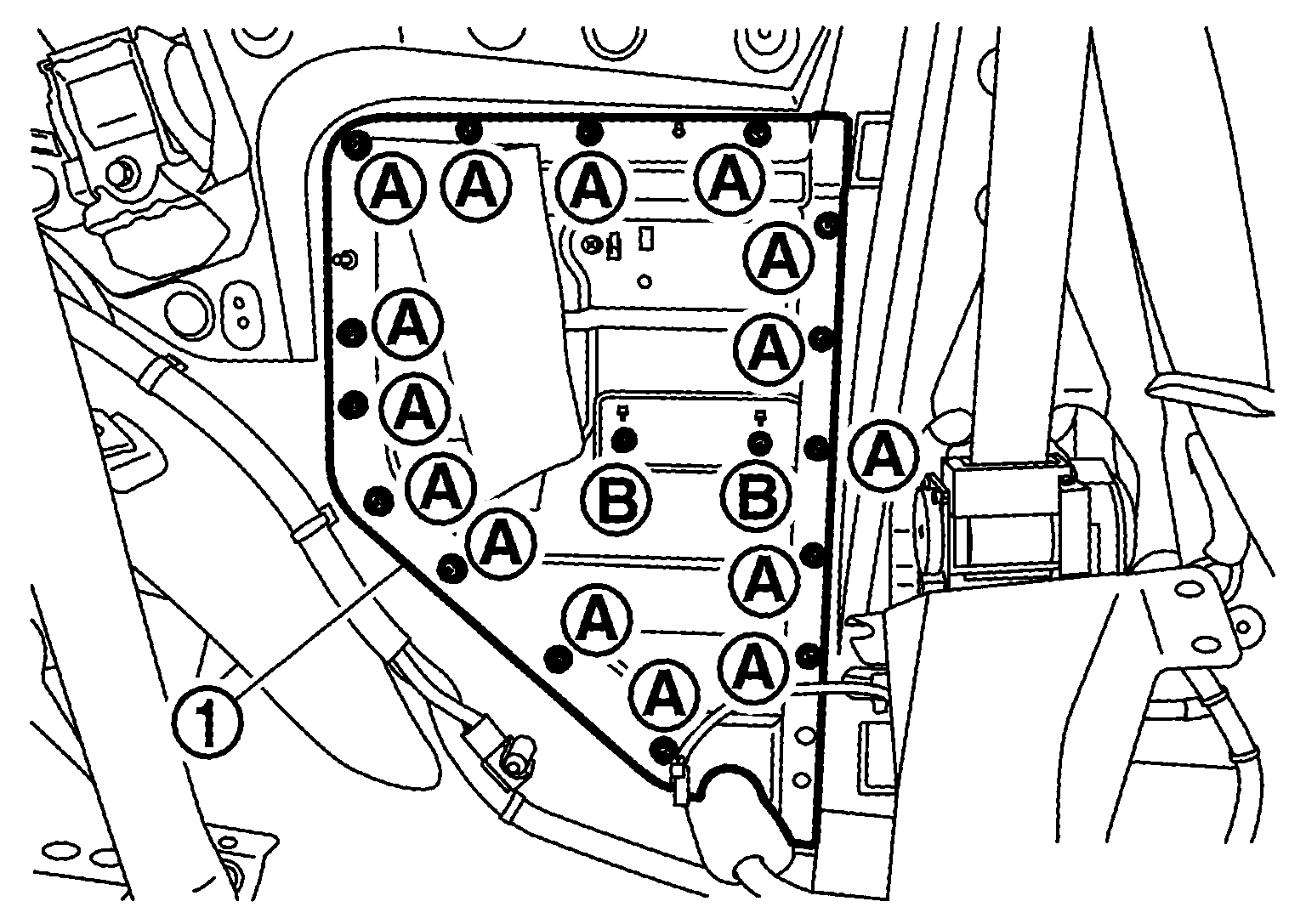

  5. Remove bolts (SYMBOL and SYMBOL ) and remove the rear pillar inner reinforcement LH SYMBOL .
    GNSJSBIB0549Z-549Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to drop the FPCM.

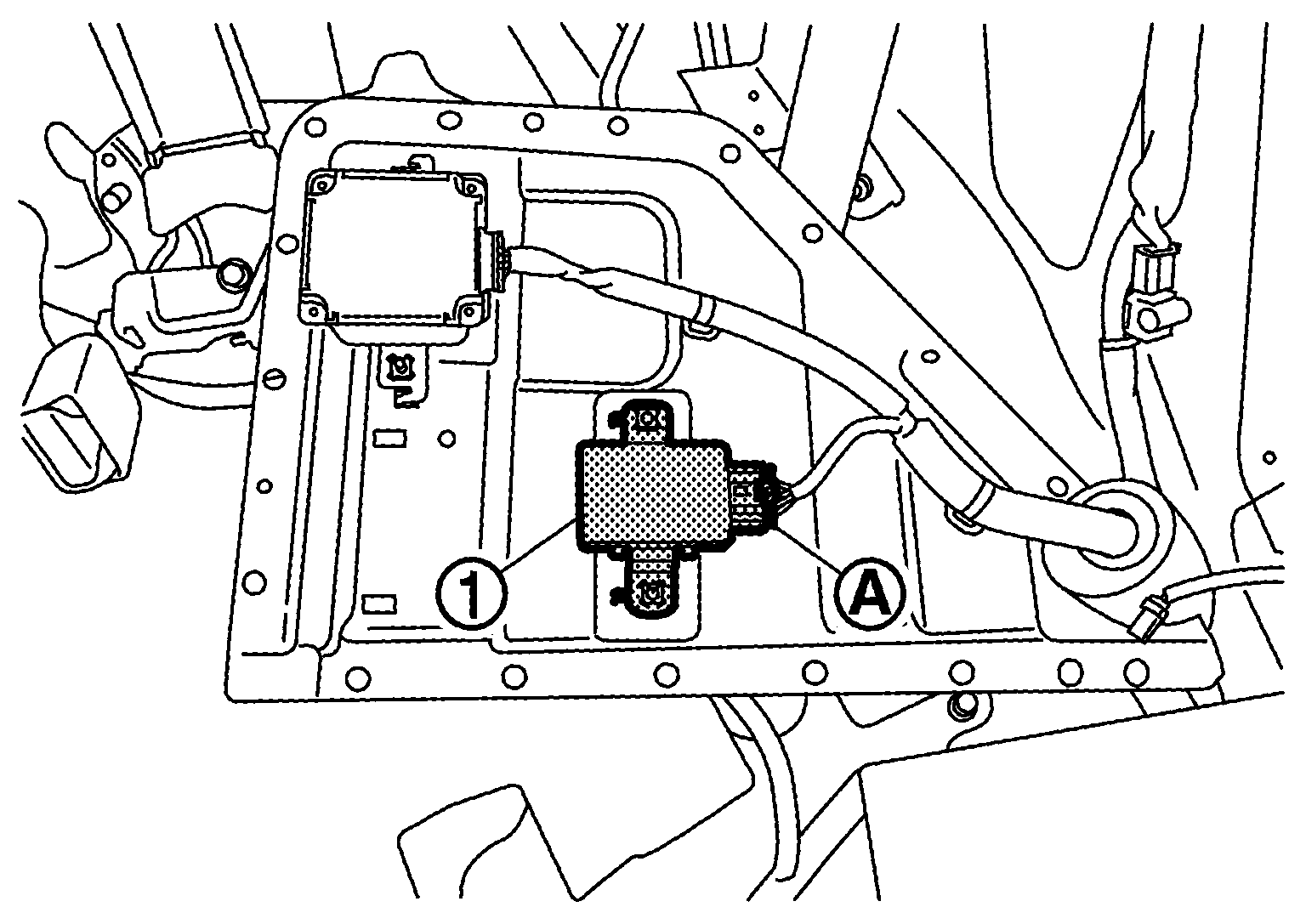

  6. Disconnect the fuel pump control module (FPCM) harness connector SYMBOL and remove FPCM SYMBOL from the rear pillar inner reinforcement LH.
    GNSJSBIB0550Z-550Courtesy of NISSAN NORTH AMERICA, INC.
