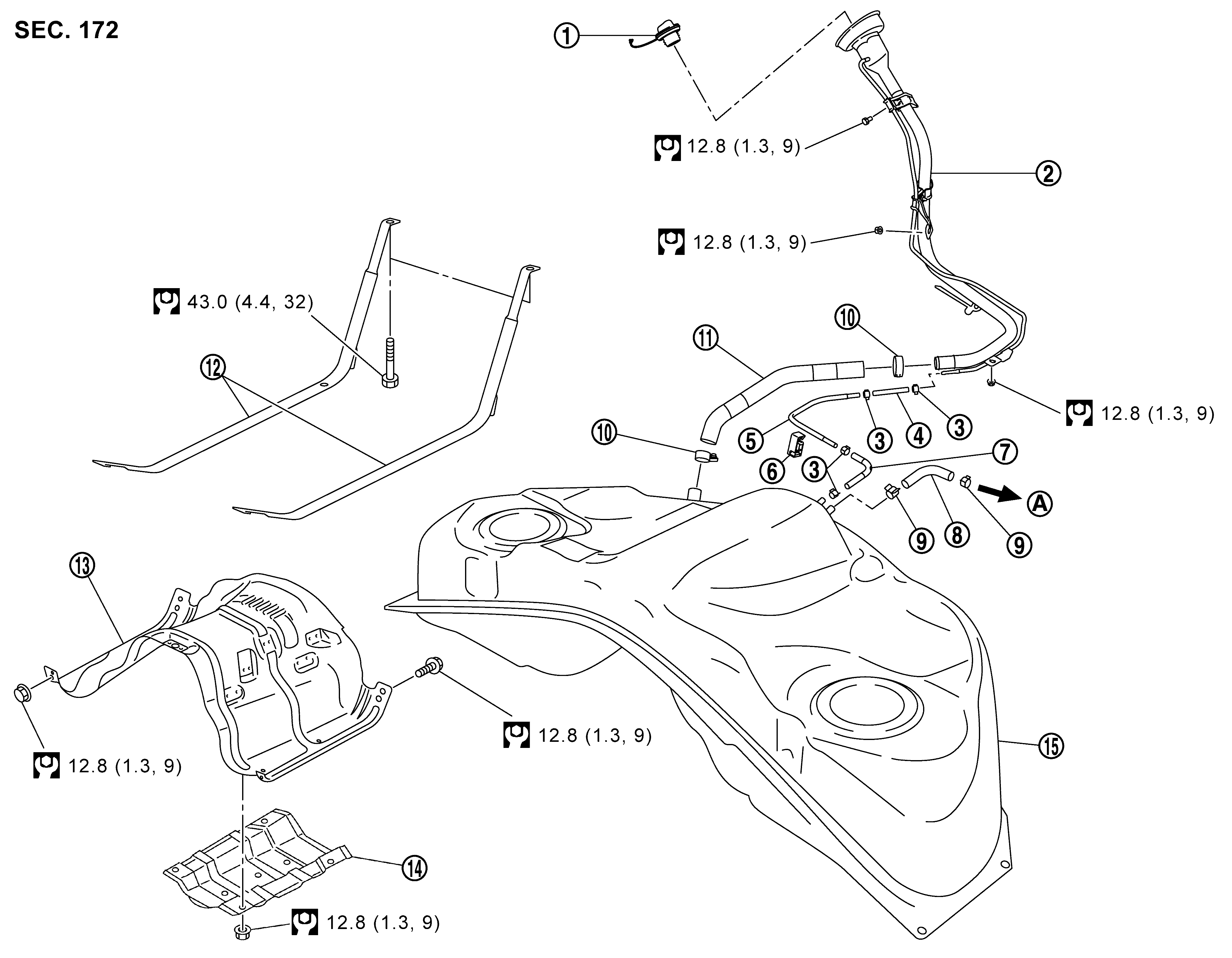

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Fuel filler cap
|
|
Fuel filler tube
|
|
Clamp
|
|
|
Vent hose
|
|
Vent tube
|
|
Clip
|
|
|
Vent hose
|
|
EVAP hose
|
|
Clamp
|
|
|
Clamp
|
|
Fuel filler hose
|
|
Fuel tank mounting band
|
|
|
Fuel tank protector
|
|
Insulator
|
|
Fuel tank
|
|
|
To EVAP tube
|
|
|
: N.m (kg-m, ft-lb)
|
