System Diagram

VR Engine Models

GNSJMMIA2327GB-327

Courtesy of NISSAN NORTH AMERICA, INC.

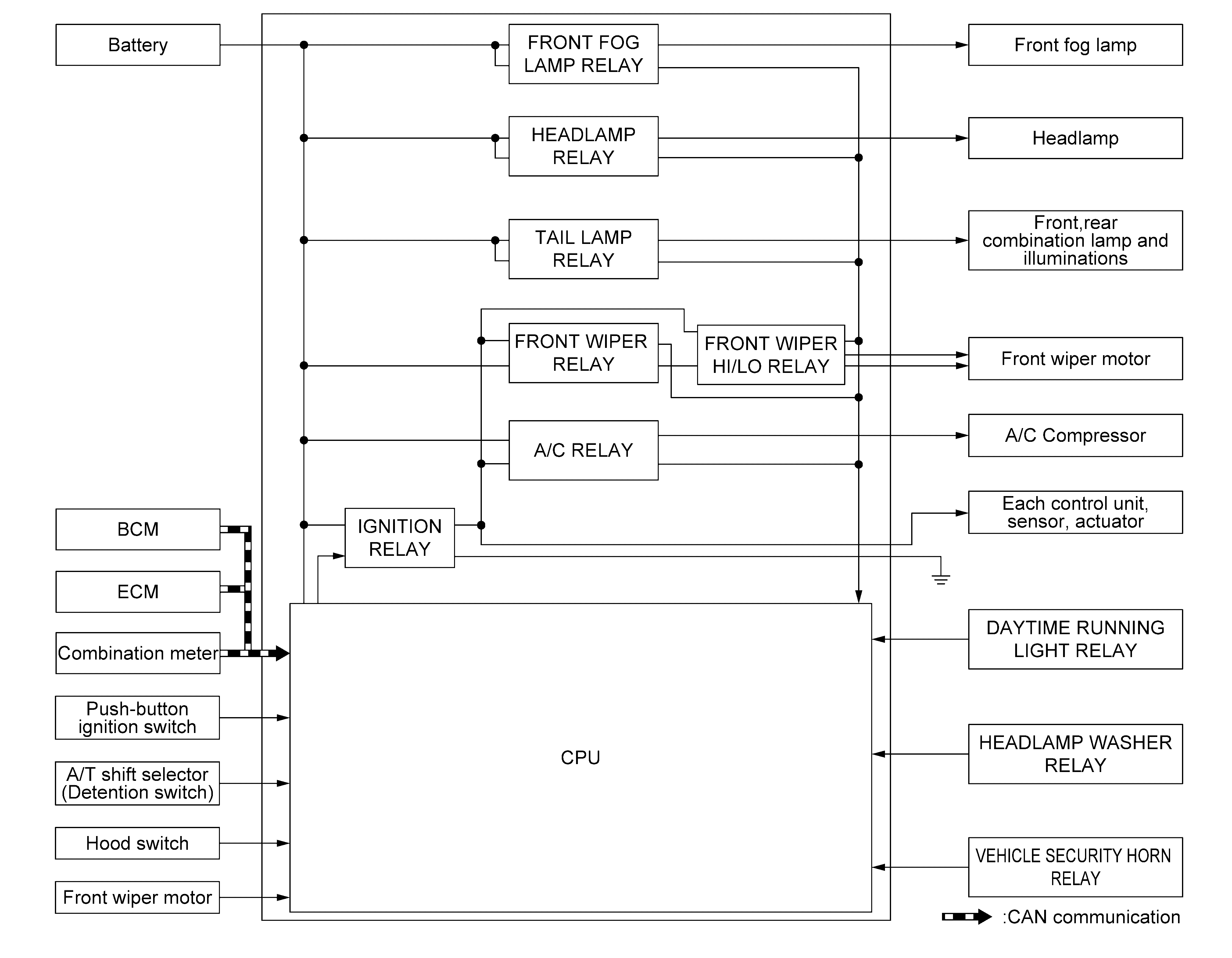

2.0L Turbo Gasoline Engine Models

GNSJMMIA2324GB-324

Courtesy of NISSAN NORTH AMERICA, INC.
