Exploded View

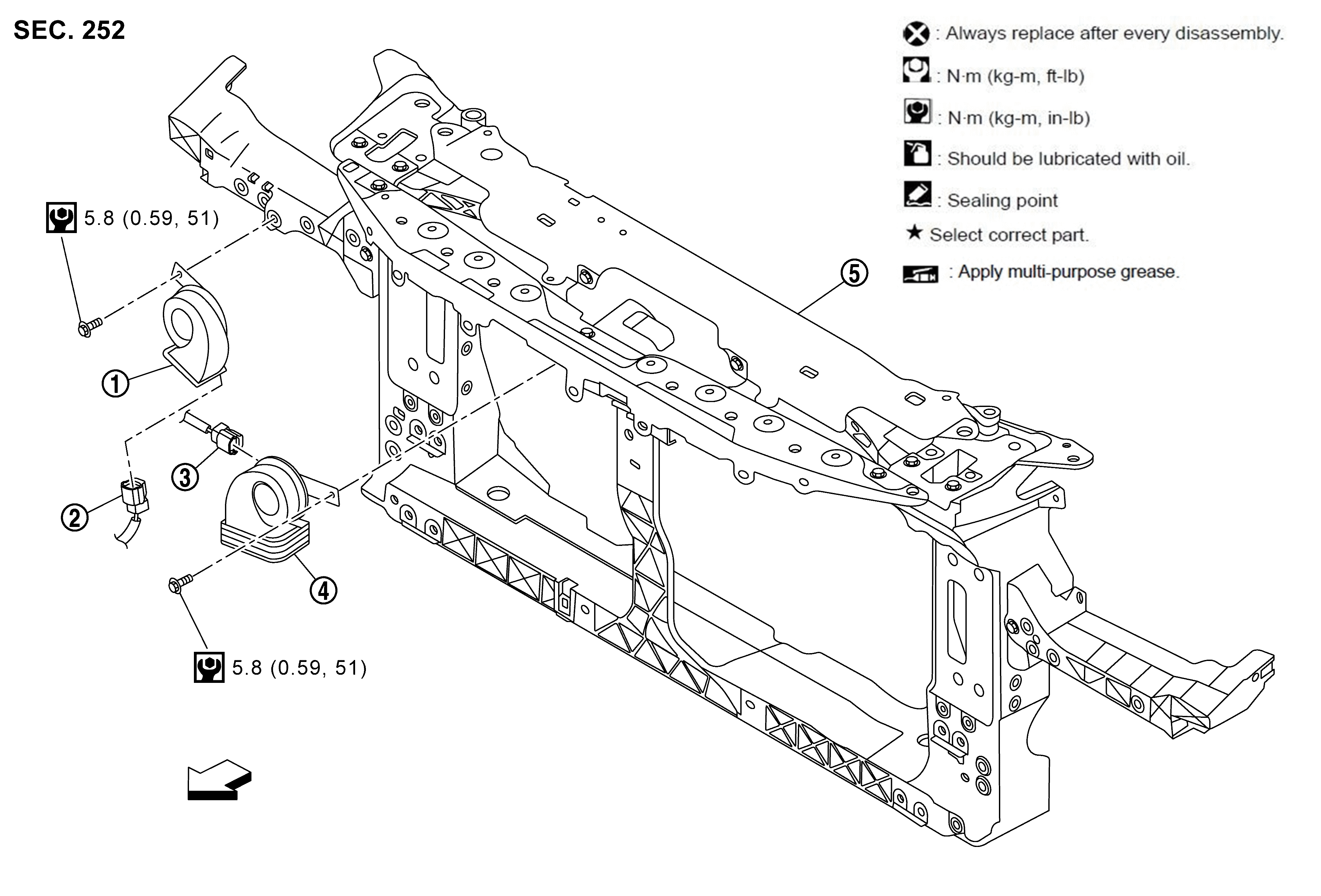

Fig 1: Horn Components With Torque Specification

GNSJMLIA7566GB-566

Courtesy of NISSAN NORTH AMERICA, INC.

	Horn (low)		Horn (low) connector		Horn (high) connector
	Horn (high)		Radiator core support
	: Vehicle front
	: N.m (kg-m, in-lb)
