Engine Control System (2.0L) (3 Of 3)
>>
Removal And Installation
>>
Sub Battery Relay
>>
Exploded View
Exploded View

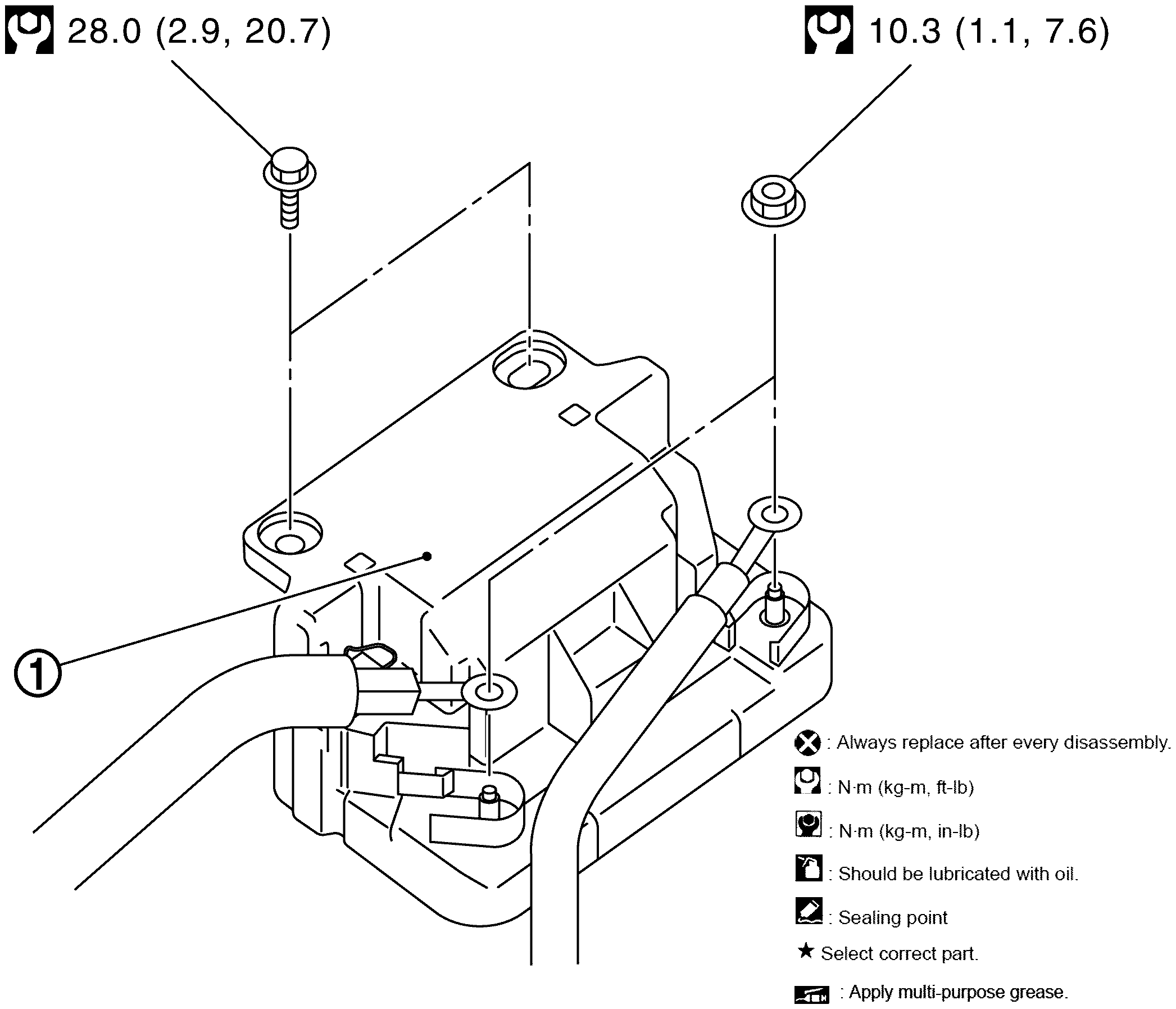

Fig 1: Sub Battery Relay Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
Sub battery relay
: N.m (kg-m, ft-lb)
Courtesy of NISSAN NORTH AMERICA, INC.
