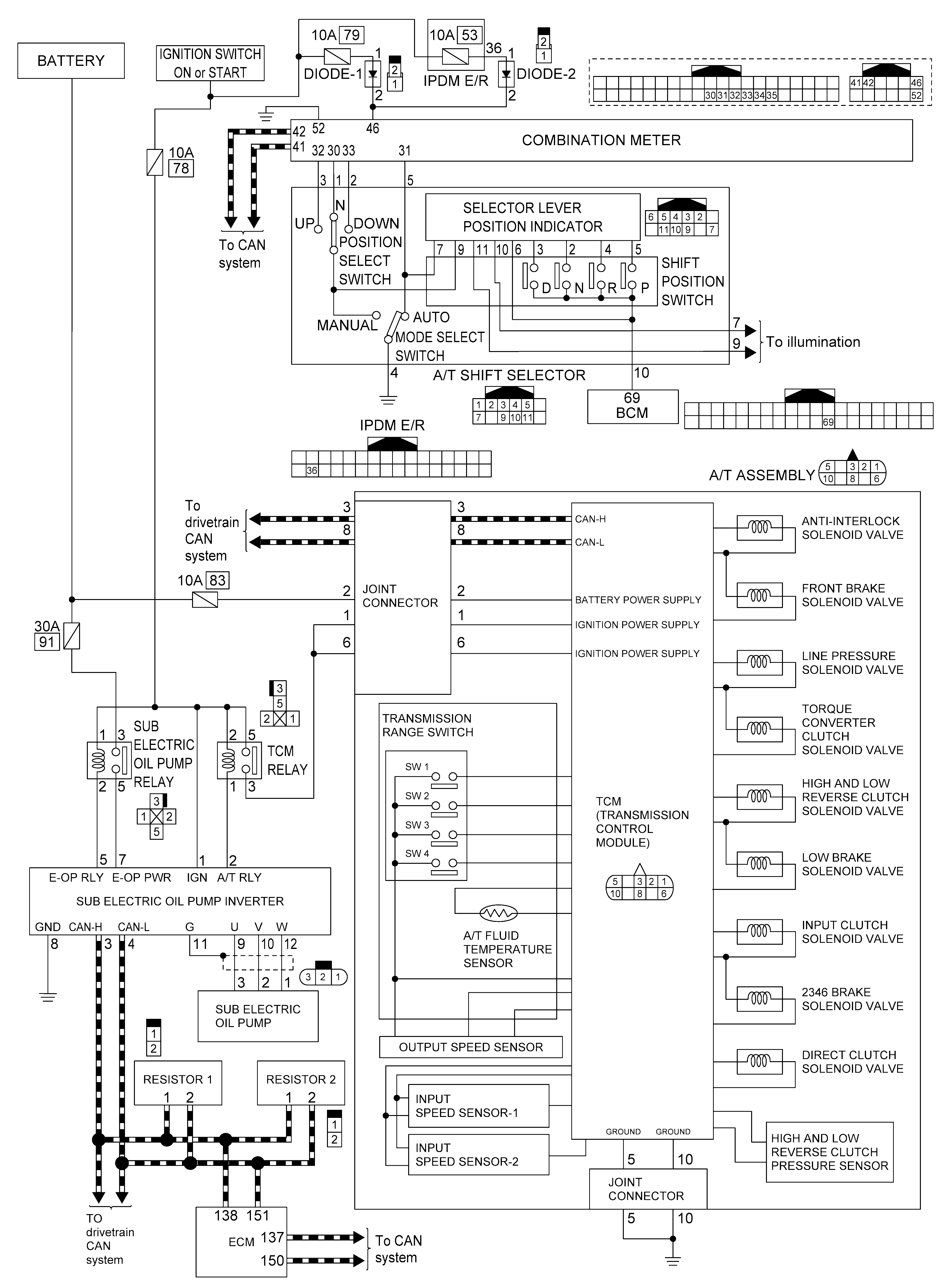

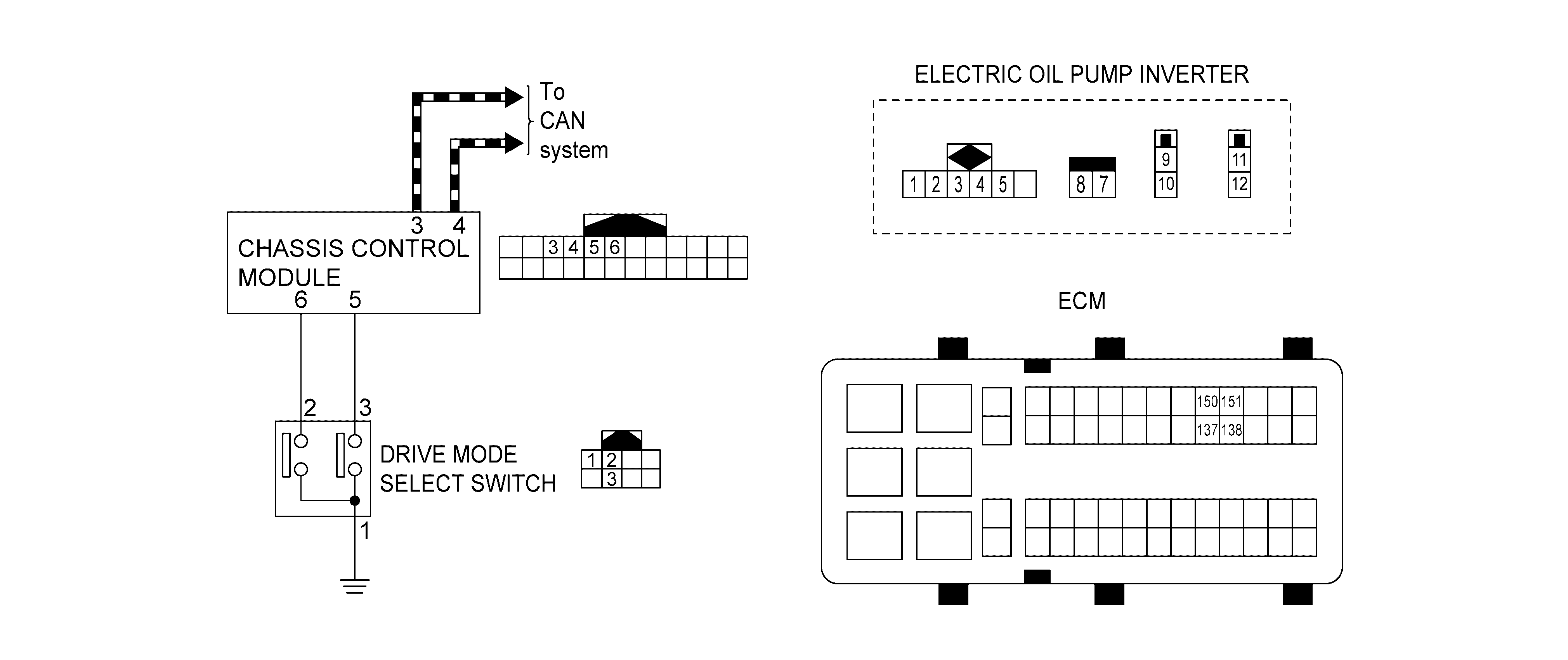

Home >> Infiniti >> 2019 >> Q50 Pure, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (1 Of 2) >> System Description >> System >> A/T Control System >> Circuit Diagram >> 2.0L Turbo Gasoline Engine
