Forcible Release Of Shift Lock

  1. Turn ignition switch OFF.
  2. Apply parking brake.

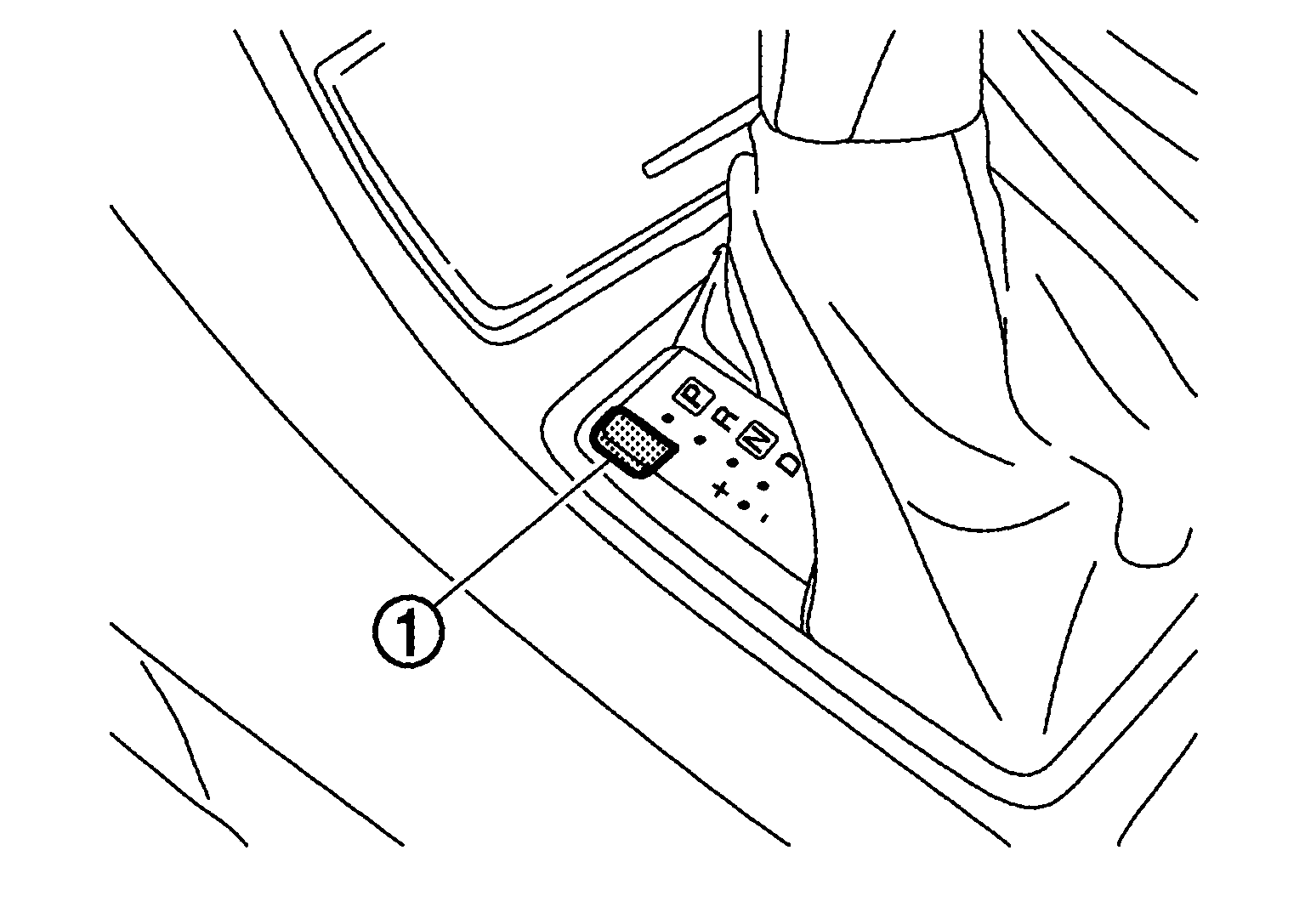

  3. Remove shift lock cover SYMBOL and press the shift lock release button using suitable tool.
    GNSJSDIA4316Z-316Courtesy of NISSAN NORTH AMERICA, INC.
  4. Press and hold the selector lever knob button and move the selector lever from "P" position to other positions while press the shift lock release button.
