PARKING COMPONENTS : Exploded View

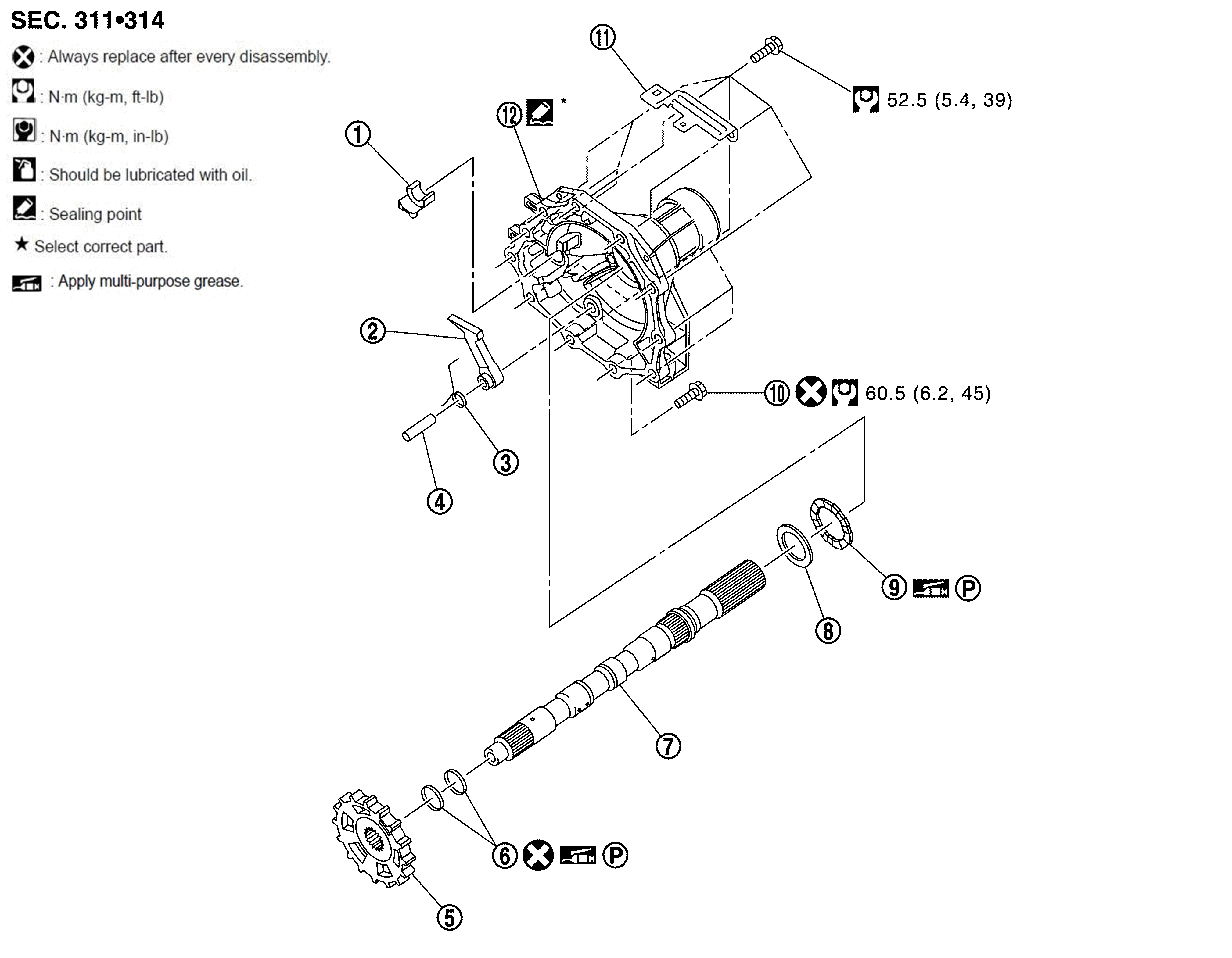

Fig 1: Parking Components With Torque Specifications - 2WD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Parking actuator support	2.	Parking pawl	3.	Return spring
4.	Pawl shaft	5.	Parking gear	6.	Seal ring
7.	Output shaft	8.	Bearing race	9.	Needle bearing
10.	Self-sealing bolt	11.	Bracket	12.	Rear extension
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: Apply Liquid Gasket (Three Bond 1215) or equivalent.
^* : Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to HOW TO USE THIS INFORMATION : Recommended Chemical Products and Sealants .
