A/T POSITION : Adjustment

  1. Shift selector lever in "P" position.

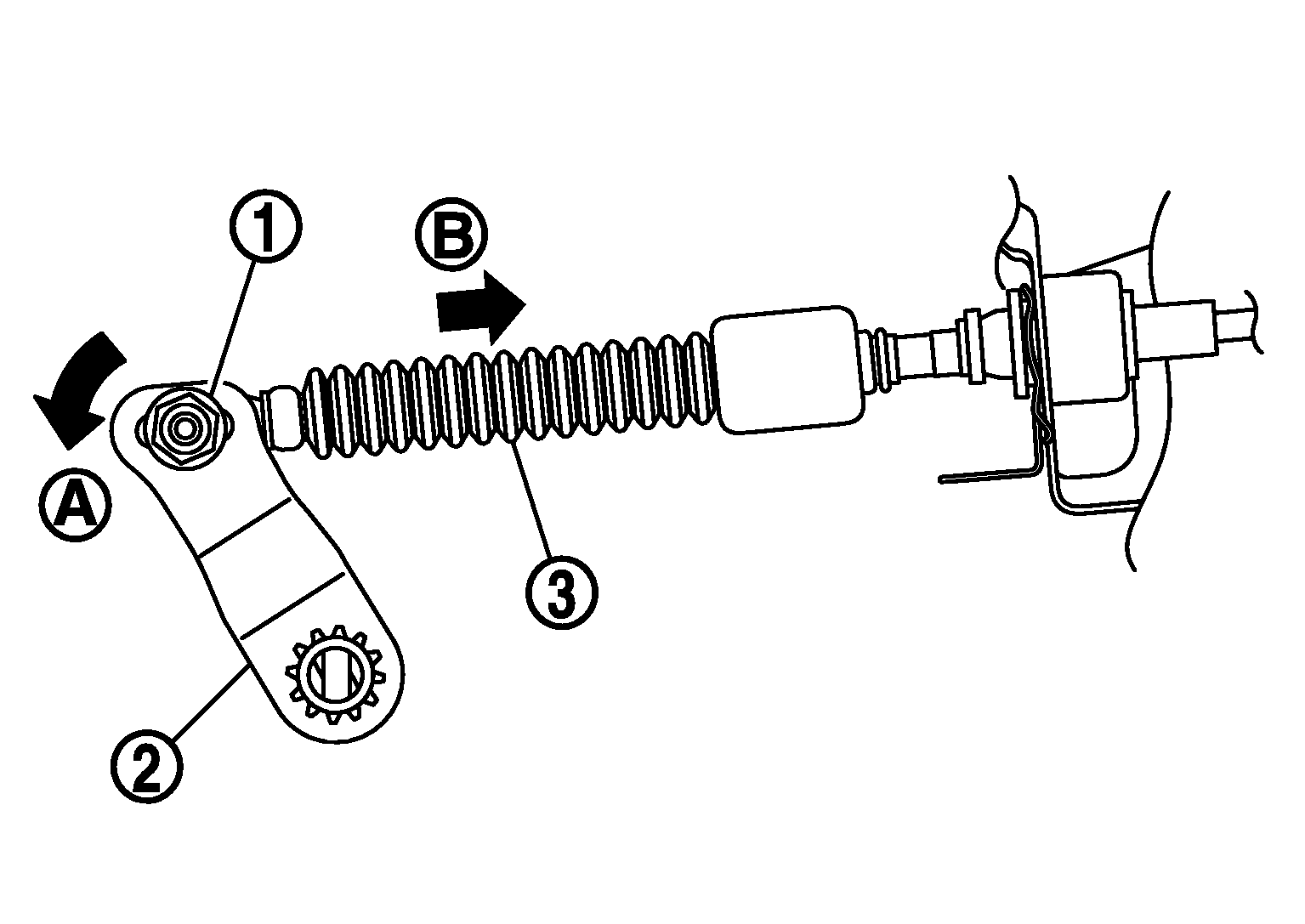

  2. Loosen nut (1).
    GNSJSDIA1587Z-587Courtesy of NISSAN NORTH AMERICA, INC.
  3. Turn the manual lever (2) all the way in the "P" range direction [ SYMBOL (A)].
  4. Hold and push the control cable (3) in the vehicle front direction [ SYMBOL (B)], and tighten the nut by hand with cable set in free condition.
    CAUTION: Be careful not put any load to manual lever.
    NOTE: Press control cable with a force of 9.8 N (approximately 1 kg, 2.2 lb).
  5. Tighten nut to specified torque. Refer to CONTROL CABLE : Exploded View .
