Removal and Installation: Installation

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Note the following, and install in the reverse order of removal.

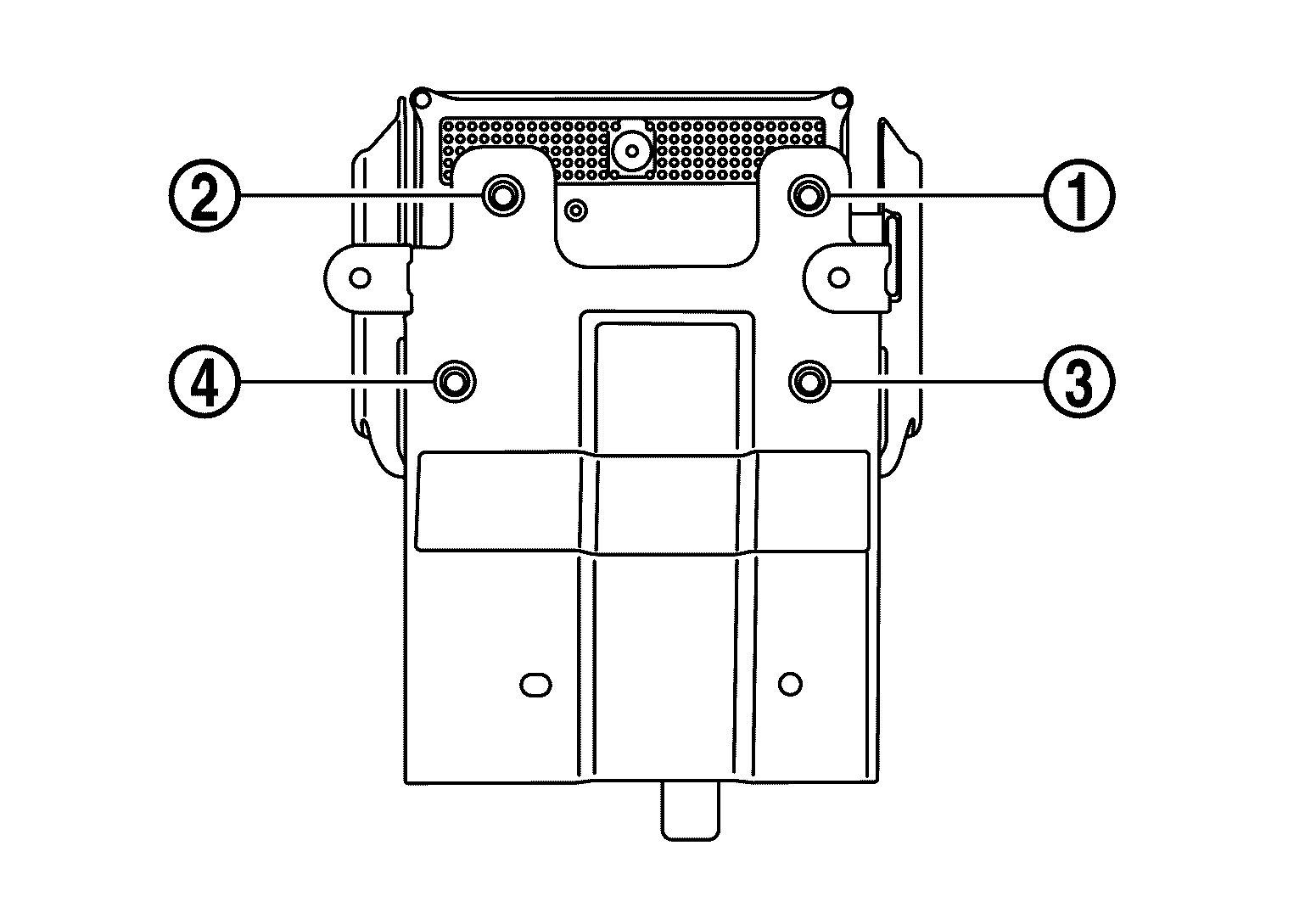

Install ICC sensor to bracket, and tighten mounting nuts in numerical order as shown in the figure, below.

Fig 1: ICC Sensor-To-Bracket Nut Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.

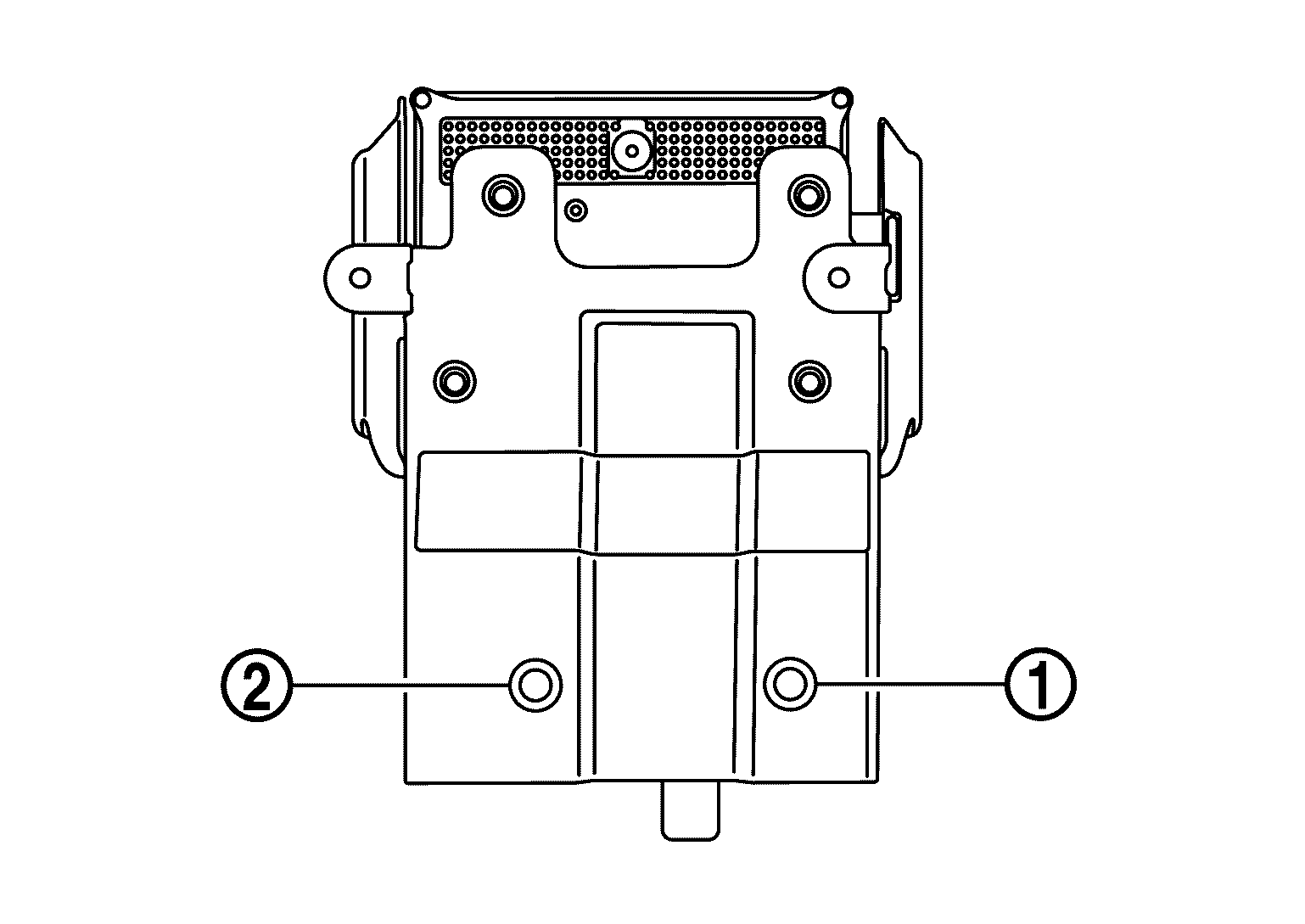

Install ICC sensor with bracket to front bumper reinforcement, and tighten mounting bolt in numerical order as shown in the figure, below.

Fig 2: ICC Sensor With Bracket Nut Tightening Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
Always perform the radar alignment and check the operation after the replacement, removal, and installation of ICC sensor. Refer to Application Notice .
