Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

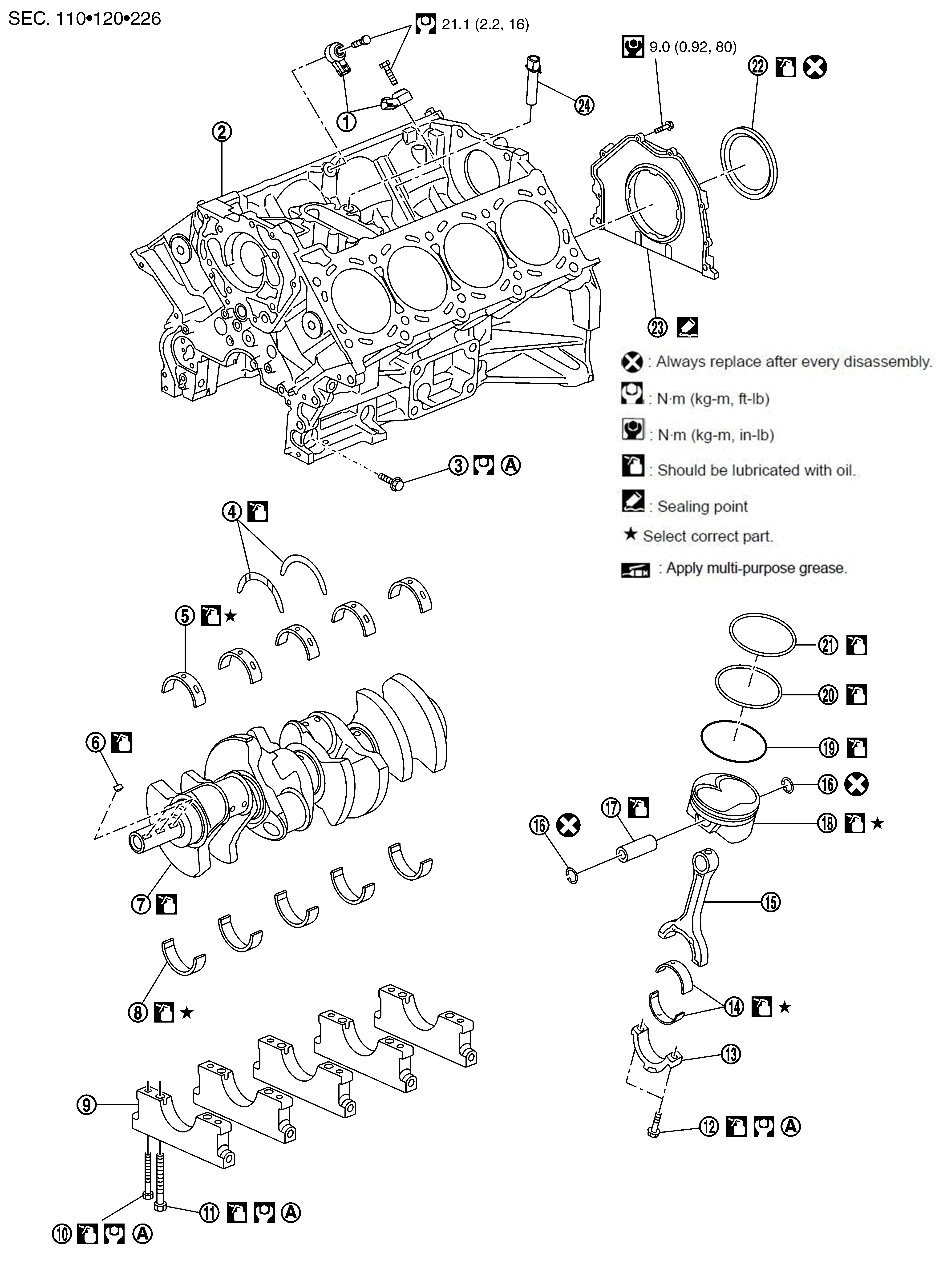

Fig 1: Cylinder Block With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Knock sensor	2.	Cylinder block	3.	Side bolt
4.	Thrust bearing	5.	Main bearing (upper)	6.	Crankshaft key
7.	Crankshaft	8.	Main bearing (lower)	9.	Main bearing cap
10.	Main bearing cap sub bolt	11.	Main bearing cap bolt	12.	Connecting rod cap bolt
13.	Connecting rod cap	14.	Connecting rod bearing	15.	Connecting rod
16.	Snap ring	17.	Piston pin	18.	Piston
19.	Oil ring	20.	Second ring	21.	Top ring
22.	Rear oil seal	23.	Rear oil seal retainer	24.	Cylinder block heater (for Canada)
A.	Comply with the assembly procedure when tightening. Refer to Disassembly and Assembly .
: N.m (kg-m, ft-lb)
: N.m (kg-m, in-lb)
: Always replace after every disassembly.
: Should be lubricated with oil.
: Sealing point.
: Select with proper thickness.
