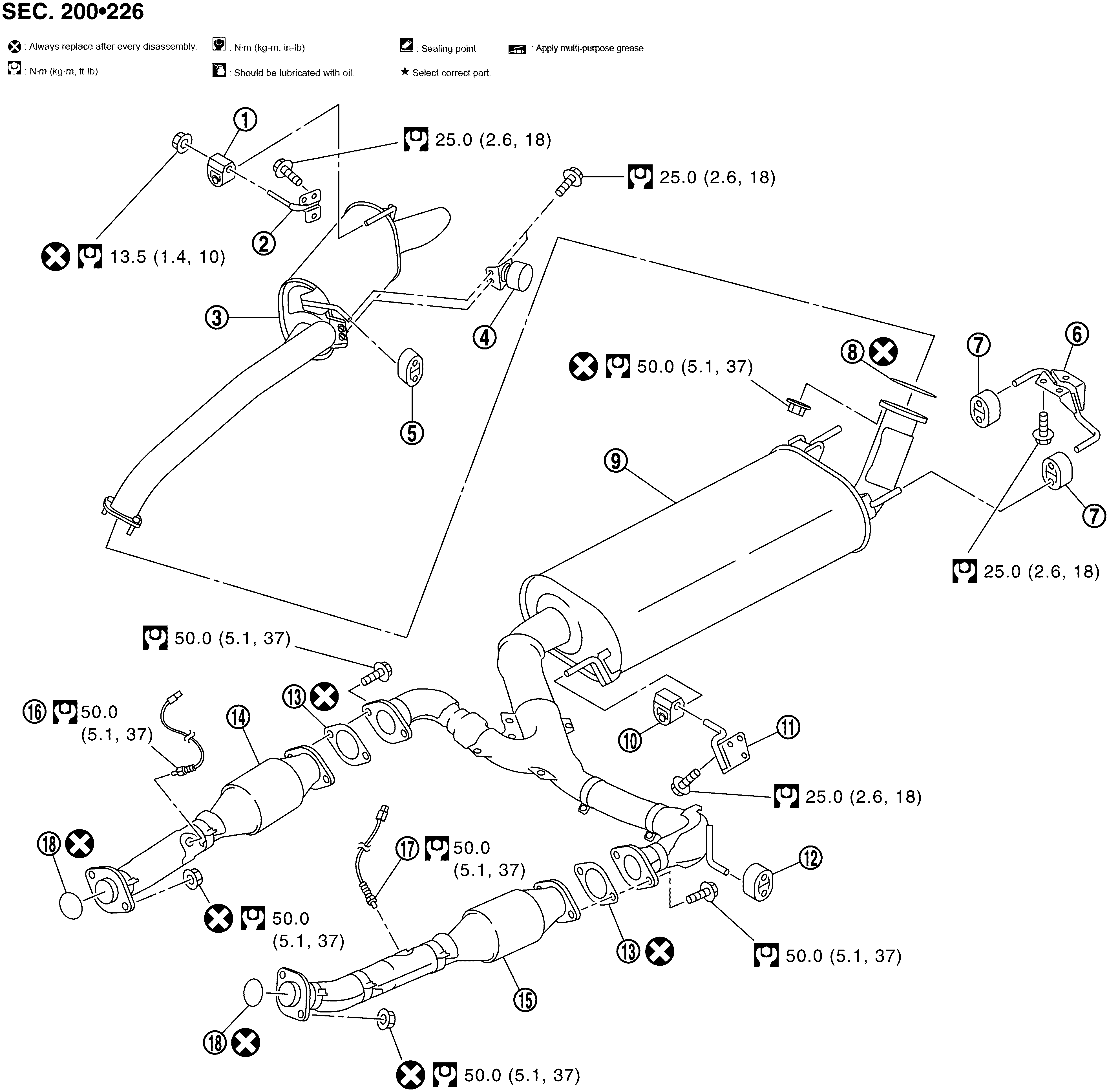

EXHAUST SYSTEM : Exploded View
|
1. |
Mounting rubber |
2. |
Mounting bracket |
3. |
Rear mufller |
|
4. |
Dynamic damper |
5. |
Mounting rubber |
6. |
Mounting bracket |
|
7. |
Mounting rubber |
8. |
Gasket |
9. |
Main muffler |
|
10. |
Mounting rubber |
11. |
Mounting bracket |
12. |
Mounting rubber |
|
13. |
Gasket |
14. |
Exhaust front tube (RH) |
15. |
Exhaust front tube (LH) |
|
16. |
Heated oxygen sensor 2 (bank 2) |
17. |
Heated oxygen sensor 2 (bank 1) |
18. |
Ring gasket |
|
|
: Always replace after every disassembly |
||||
|
|
: N.m (kg-m, ft-lb) |
||||
