4WD Shift Switch And 4WD Shift Indicator Lamp

4WD shift switch	4WD shift indicator lamp (in Information display)	4WD shift procedure

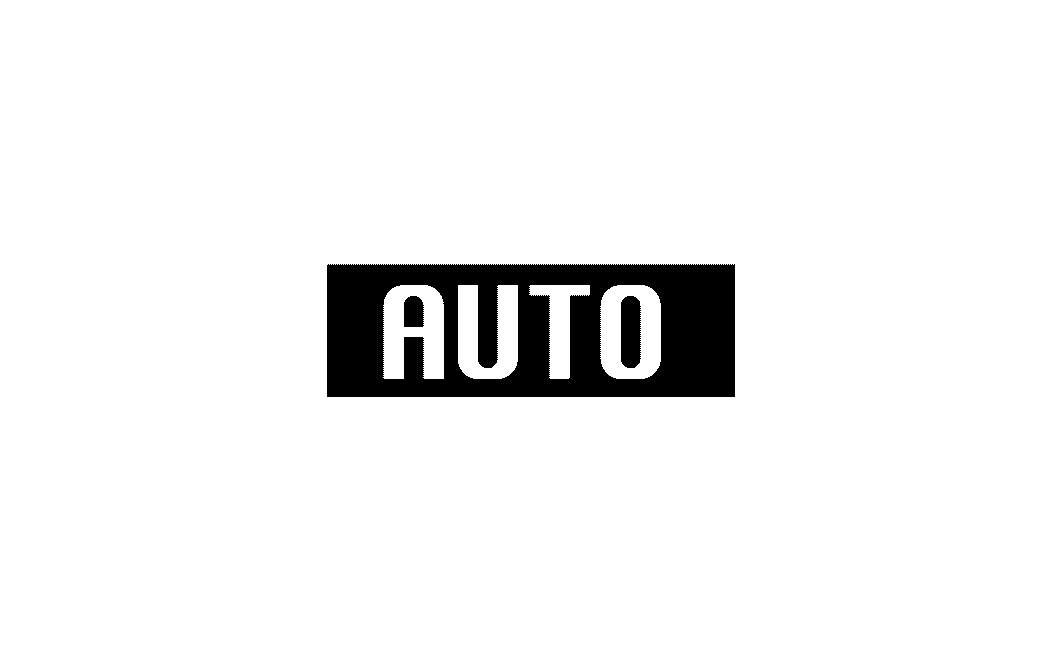

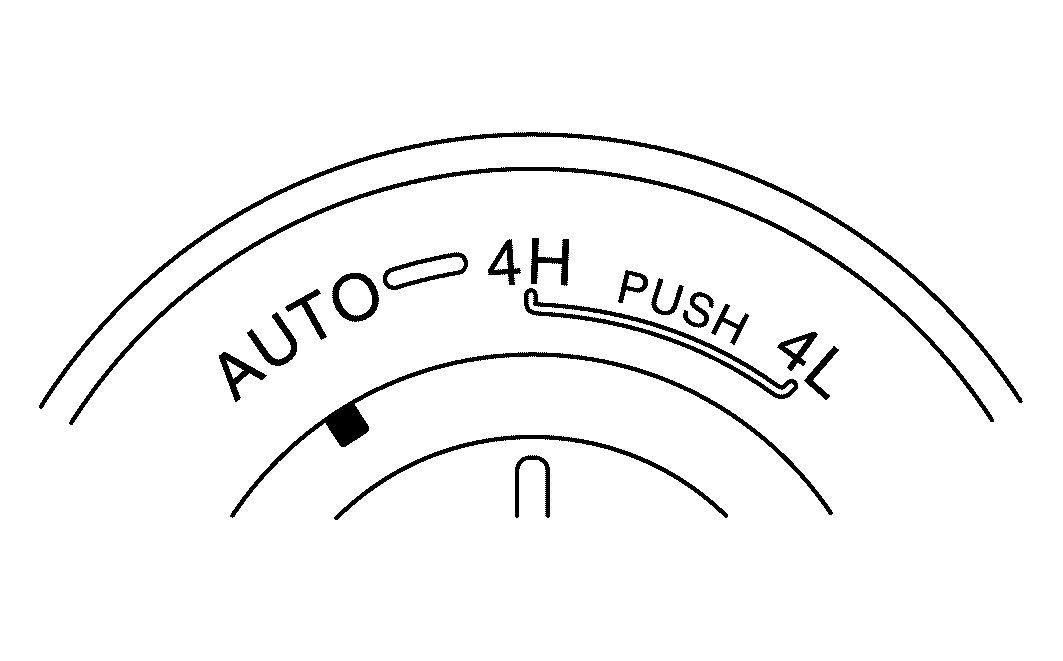

AUTO Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.	Start the engine. Turn the 4WD shift switch. NOTE: Mode can be switched between AUTO<=>4H while driving straight.

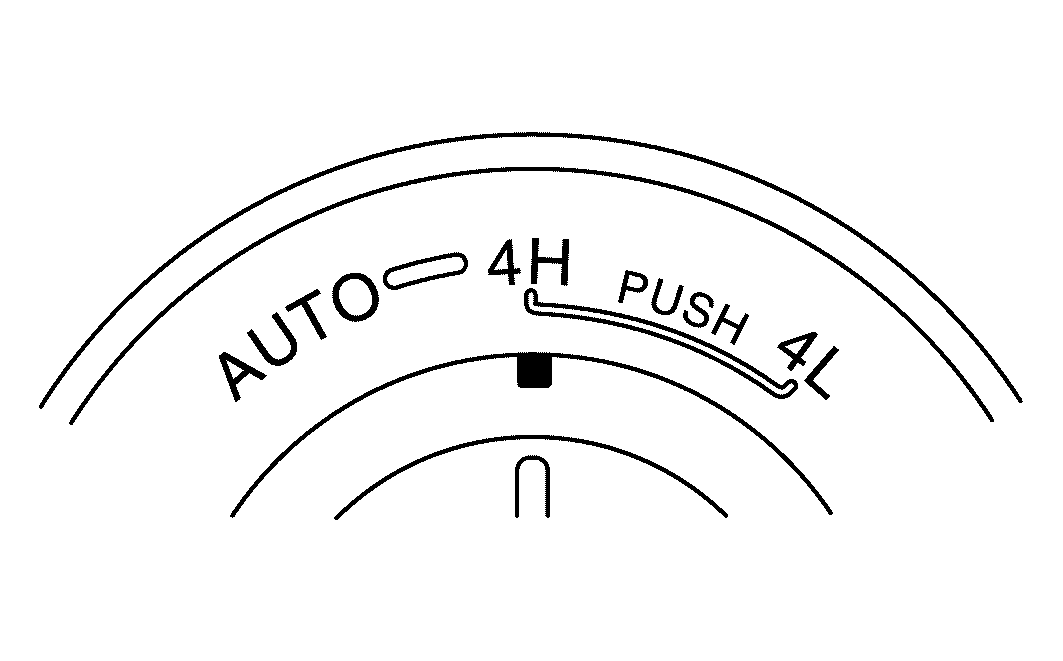

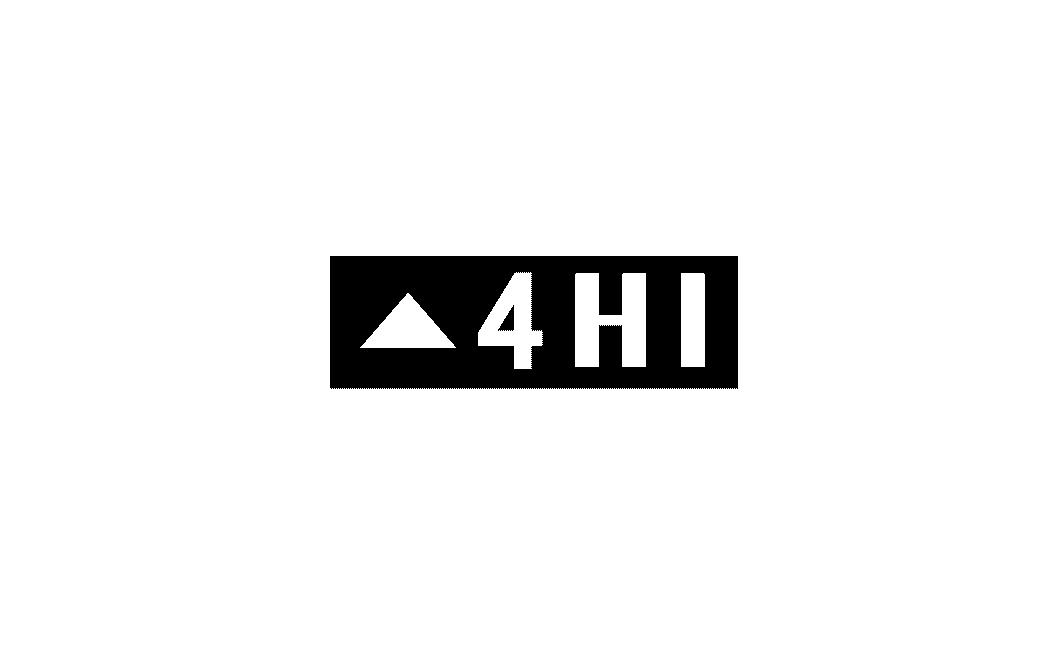

4H Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.

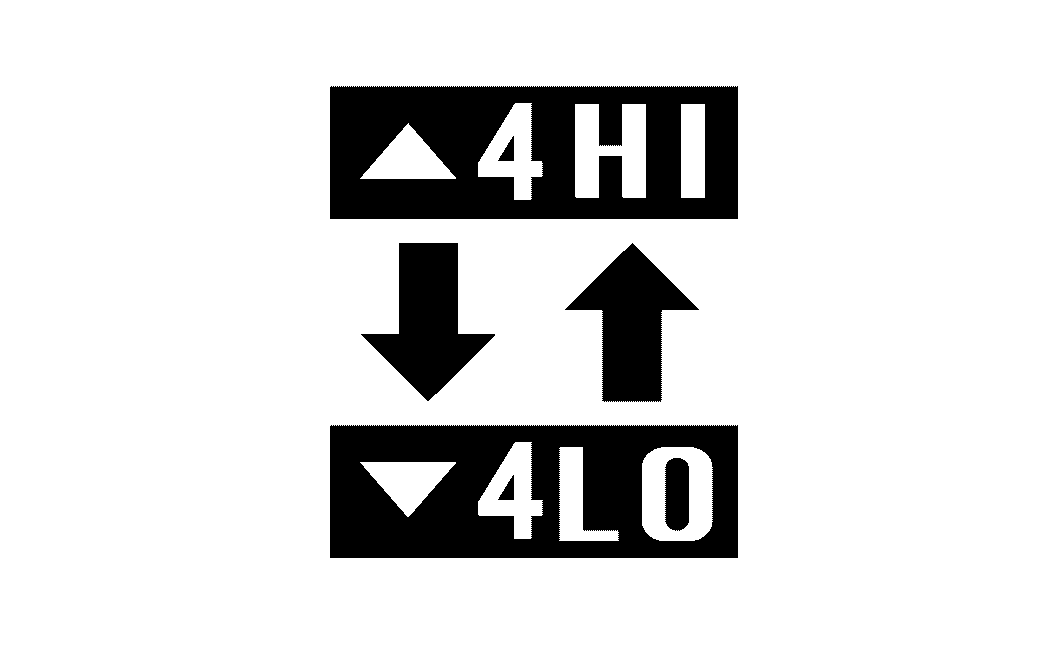

Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC. Courtesy of NISSAN NORTH AMERICA, INC.NISSAN NORTH AMERICA, INC. 4WD status: 4H<=>4L	Courtesy of NISSAN NORTH AMERICA, INC. (Blinking) ^12	Start the engine. Never drive the vehicle. Shift A/T shift selector to N position. Press and rotate 4WD shift switch while depressing brake pedal. CAUTION: 4WD mode does not switch when 4WD shift switch is operated while the vehicle is running or A/T shift selector is shifted to any position other than neutral.

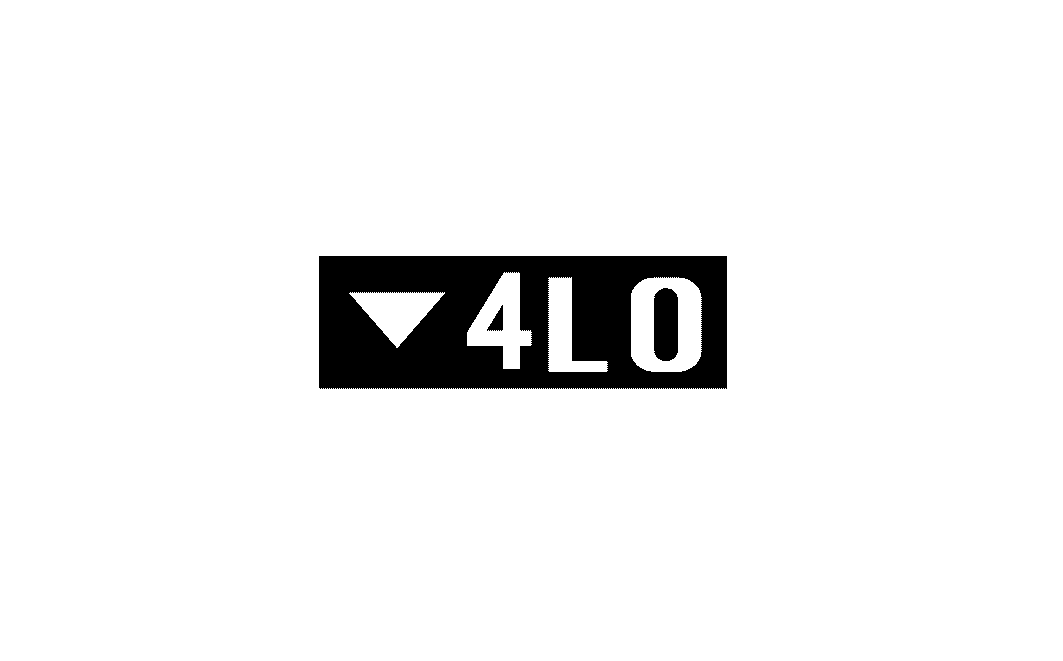

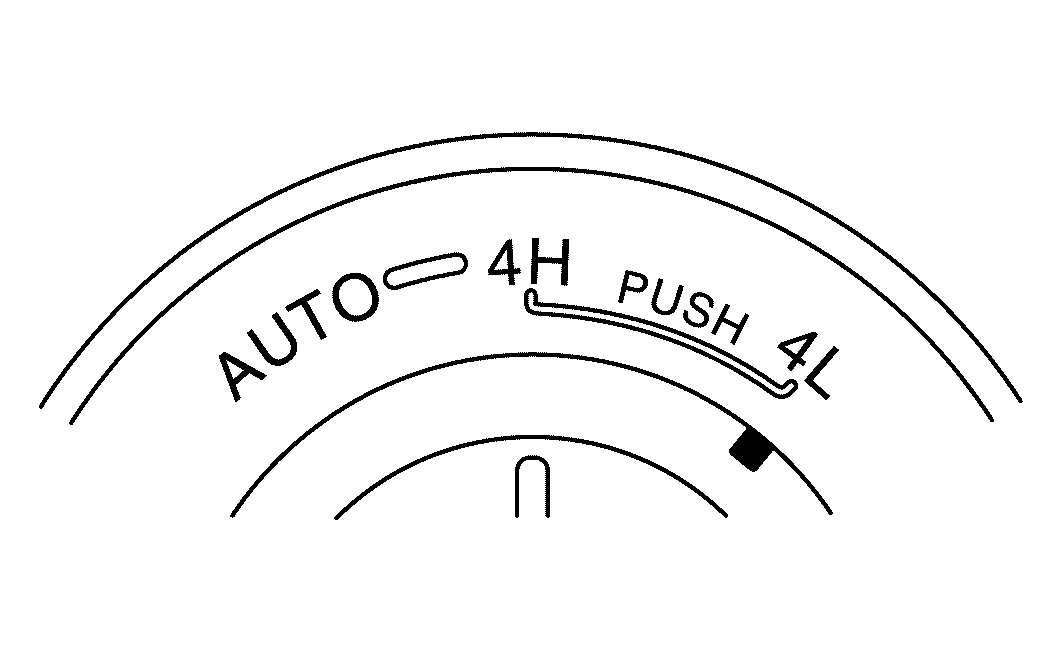

4L Courtesy of NISSAN NORTH AMERICA, INC.	Courtesy of NISSAN NORTH AMERICA, INC.

*1: Blinking 2 times/1 second

*2: "4HI" and "4LO" blink alternately.
