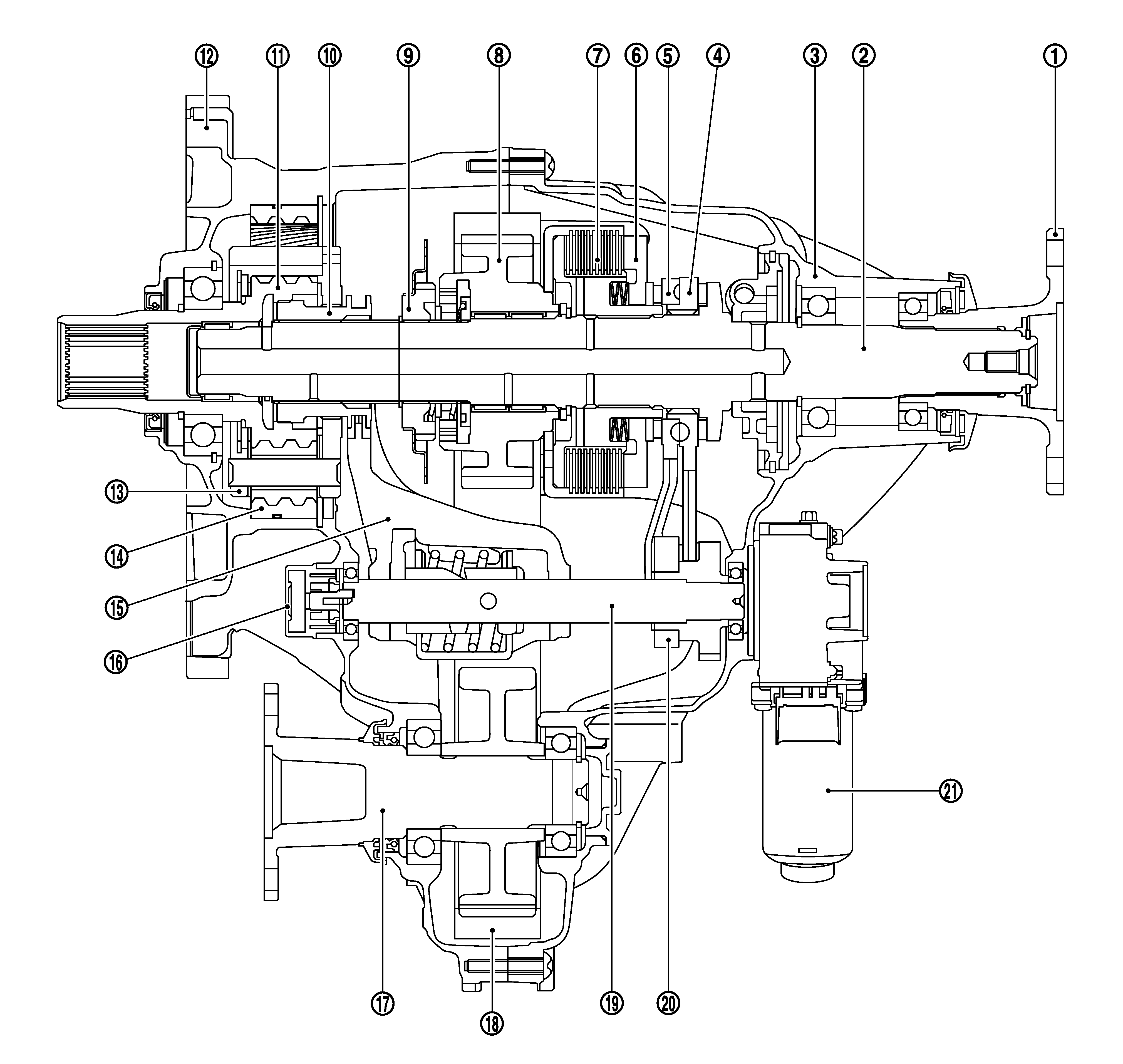

Sectional View
|
1. |
Rear companion flange |
2. |
Main shaft |
3. |
Rear case |
|
4. |
Ball ramp lever |
5. |
Ball lamp lever |
6. |
Piston |
|
7. |
Clutch |
8. |
Sprocket |
9. |
Lock sleeve |
|
10. |
Hi-Lo sleeve |
11. |
Sun gear |
12. |
Front case |
|
13. |
Planetary carrier assembly |
14. |
Internal gear |
15. |
Shift fork |
|
16. |
Transfer rotary position sensor |
17. |
Front shaft flange |
18. |
Drive chain |
|
19. |
Actuator shaft |
20. |
Cam |
21. |
Transfer control actuator |
