OUTPUT SPEED SENSOR : Exploded View

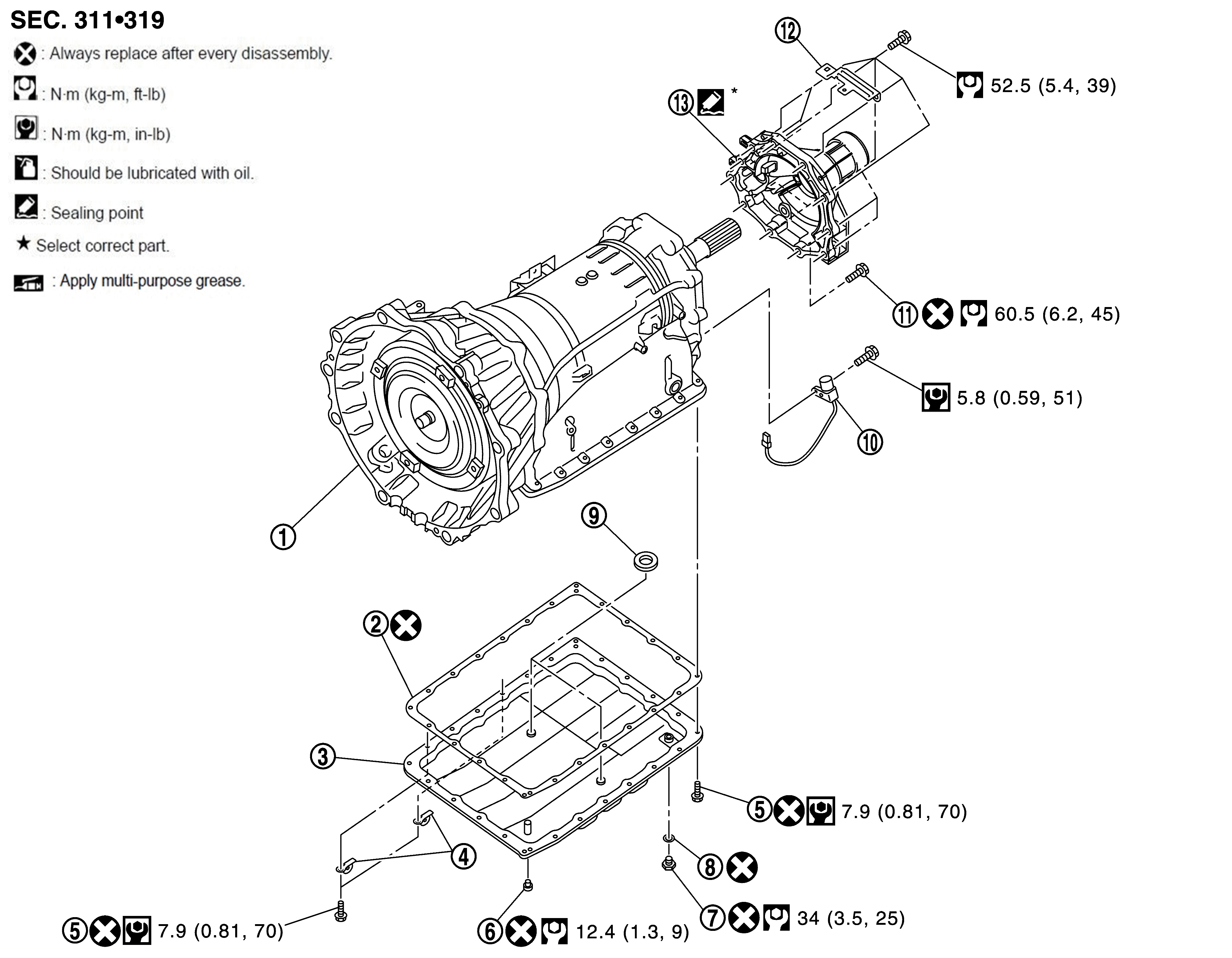

Fig 1: Output Speed Sensor Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	A/T assembly	2.	Oil pan gasket	3.	Oil pan
4.	Clip	5.	Oil pan mounting bolt	6.	Overflow plug
7.	Drain plug	8.	Drain plug gasket	9.	Magnet
10.	Output speed sensor	11.	Self-sealing bolt	12.	Bracket
13.	Rear extension
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
^* : Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to HOW TO USE THIS INFORMATION : Recommended Chemical Products and Sealants .
