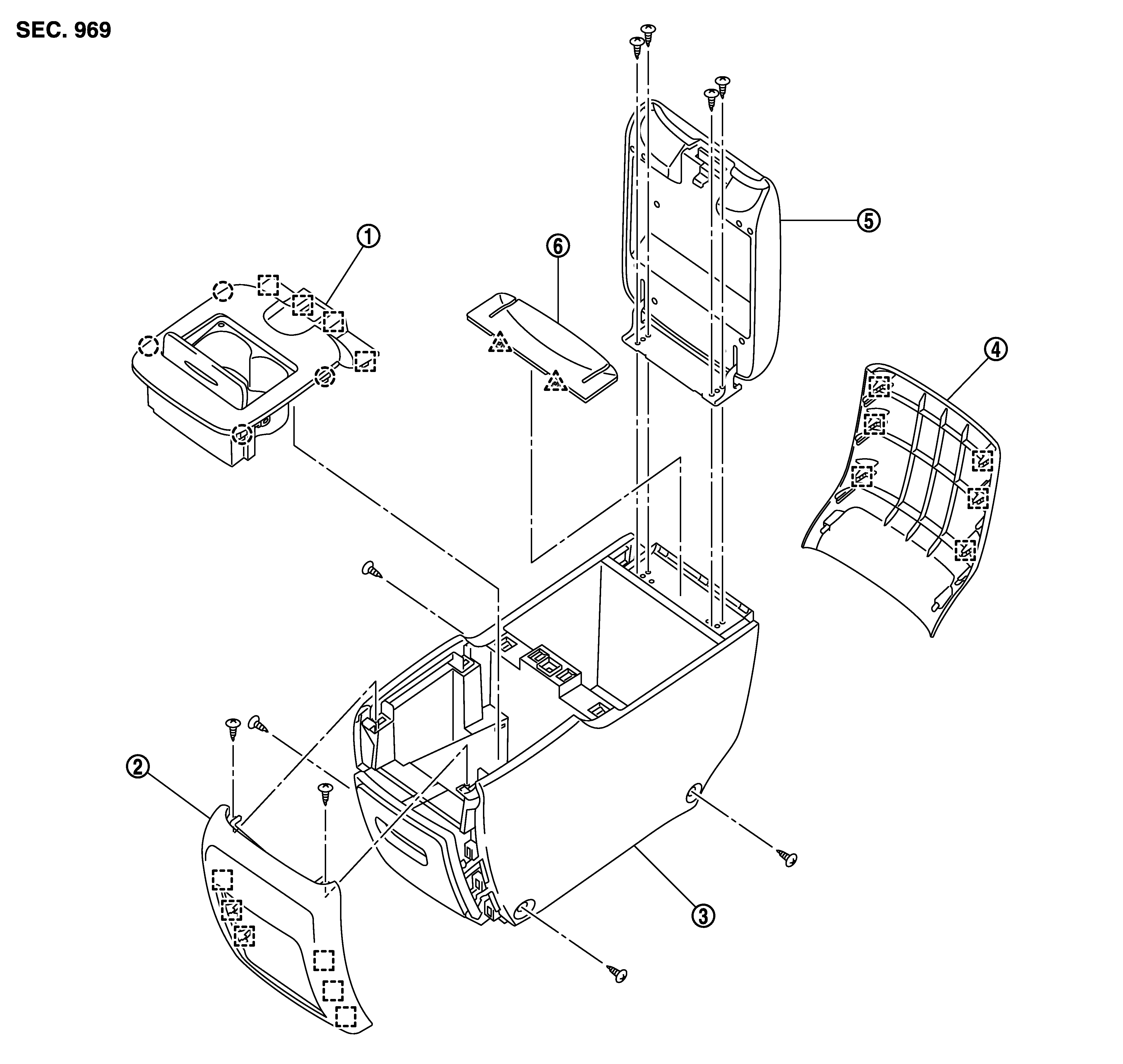

Exploded View
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cup holder assembly
|
2.
|
Rear console front finisher
|
3.
|
Rear console body assembly
|
|
4.
|
Rear console rear finisher
|
5.
|
Rear console lid assembly
|
6.
|
Rear console hinge mask
|
|
|
: Clip
|
|
|
: Pawl
|
|
|
: Metal clip
|
