Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

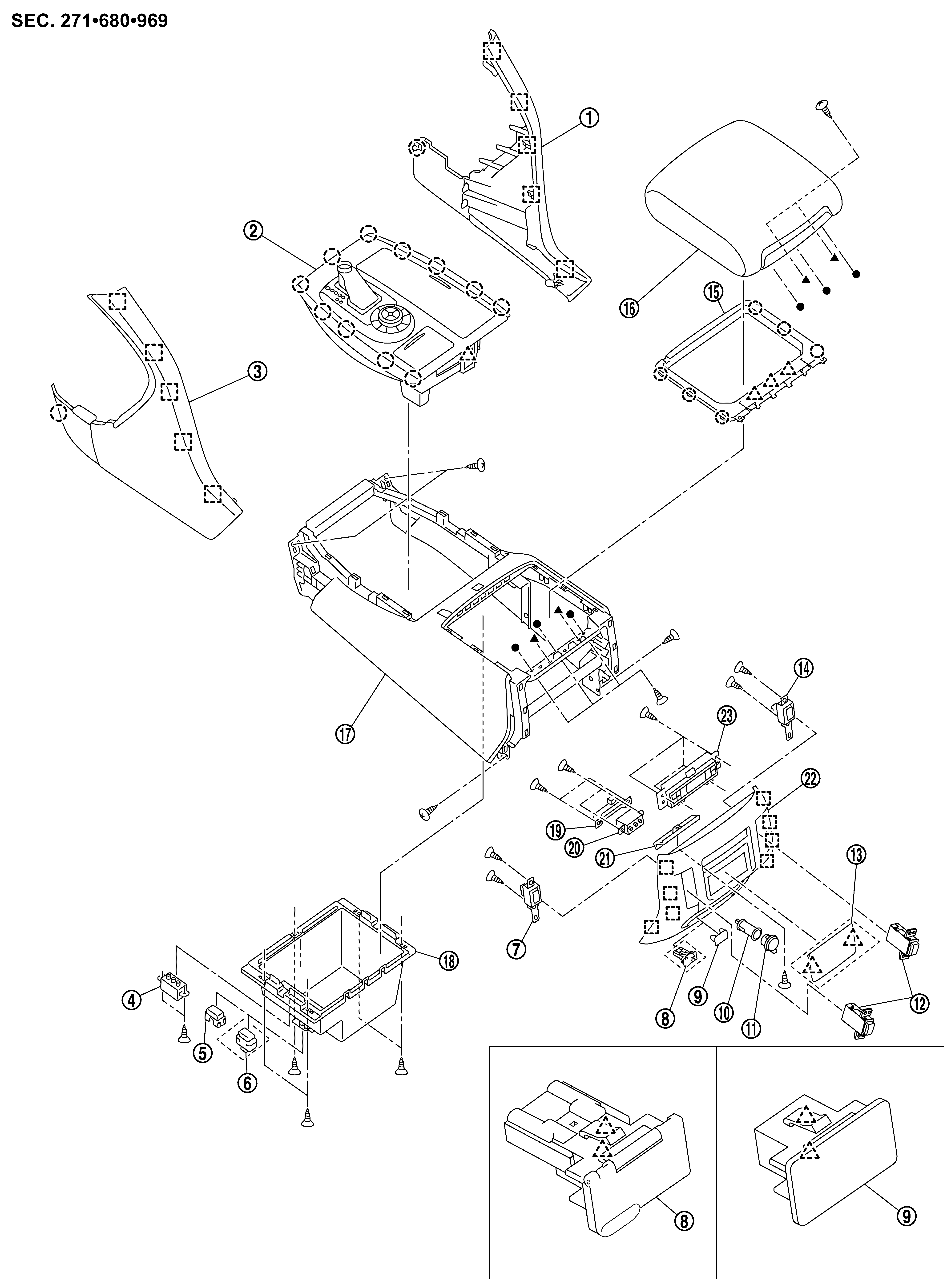

CENTER CONSOLE ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Instrument center finisher RH	2.	Console finisher assembly	3.	Instrument center finisher LH
4.	Front auxiliary input jacks (If equipped)	5.	Switch hole mask	6.	120 V switch unit
7.	Second heated seat switch LH	8.	120 V unit	9.	Mask
10.	Inner socket	11.	Socket knob	12.	USB connector
13.	Mask (ashtray)	14.	Second heated seat switch RH	15.	Console hinge cover
16.	Console lid assembly	17.	Console body assembly	18.	Console box
19.	Inside key antenna	20.	Rear auxiliary input jacks	21.	Console ashtray bracket
22.	Console rear finisher	23.	Rear A/C control
	: Clip
	: Pawl
	: Metal clip
, : Indicates that the part is connected at points with same symbol in actual vehicle.

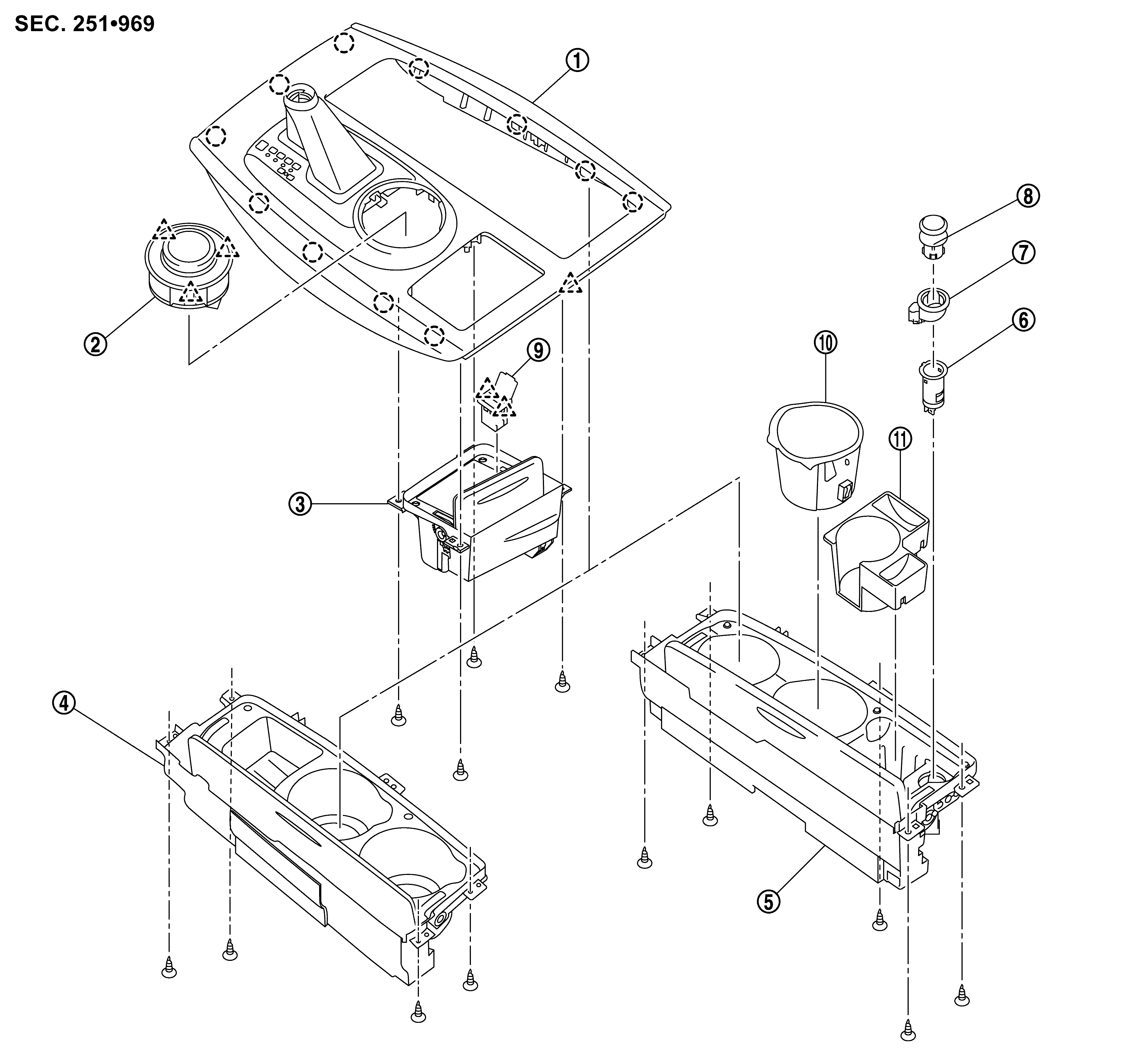

CONSOLE FINISHER ASSEMBLY

Courtesy of NISSAN NORTH AMERICA, INC.

1.	AT control indicator assembly	2.	AWD: AWD switch assembly 2WD: SNOW MODE/TOW MODE/VDC OFF switch assembly	3.	Console pocket assembly
4.	Cup holder assembly	5.	Cup holder assembly	6.	Inner socket
7.	Socket ring	8.	Socket knob	9.	USB connector
10.	Inner case	11	Coin pocket
	: Clip
	: Pawl
