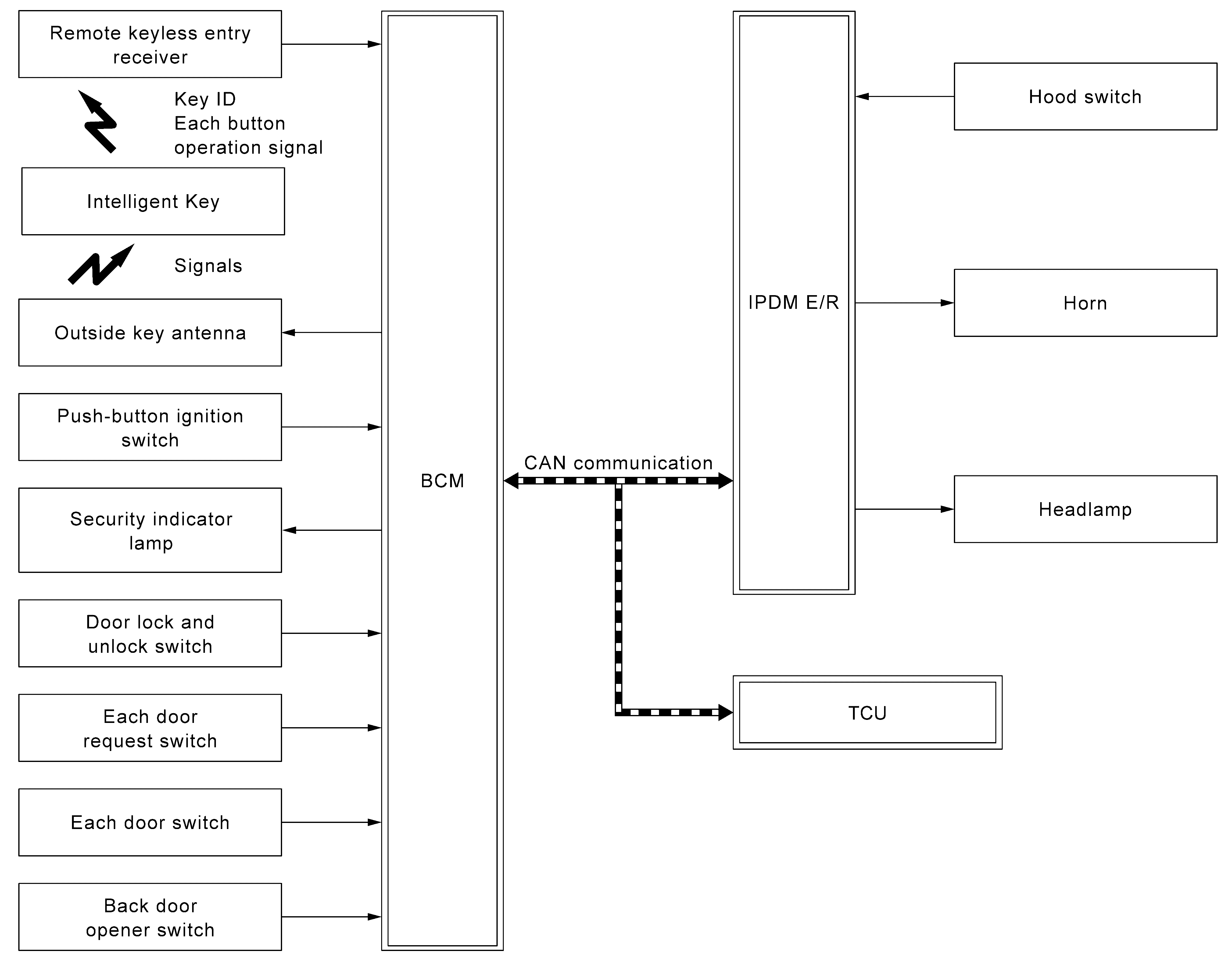

System Diagram

WARNING: This page is about a different car, the 2020 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.
GNSILL0162125-125Courtesy of NISSAN NORTH AMERICA, INC.
