ENGINE ASSEMBLY : Exploded View

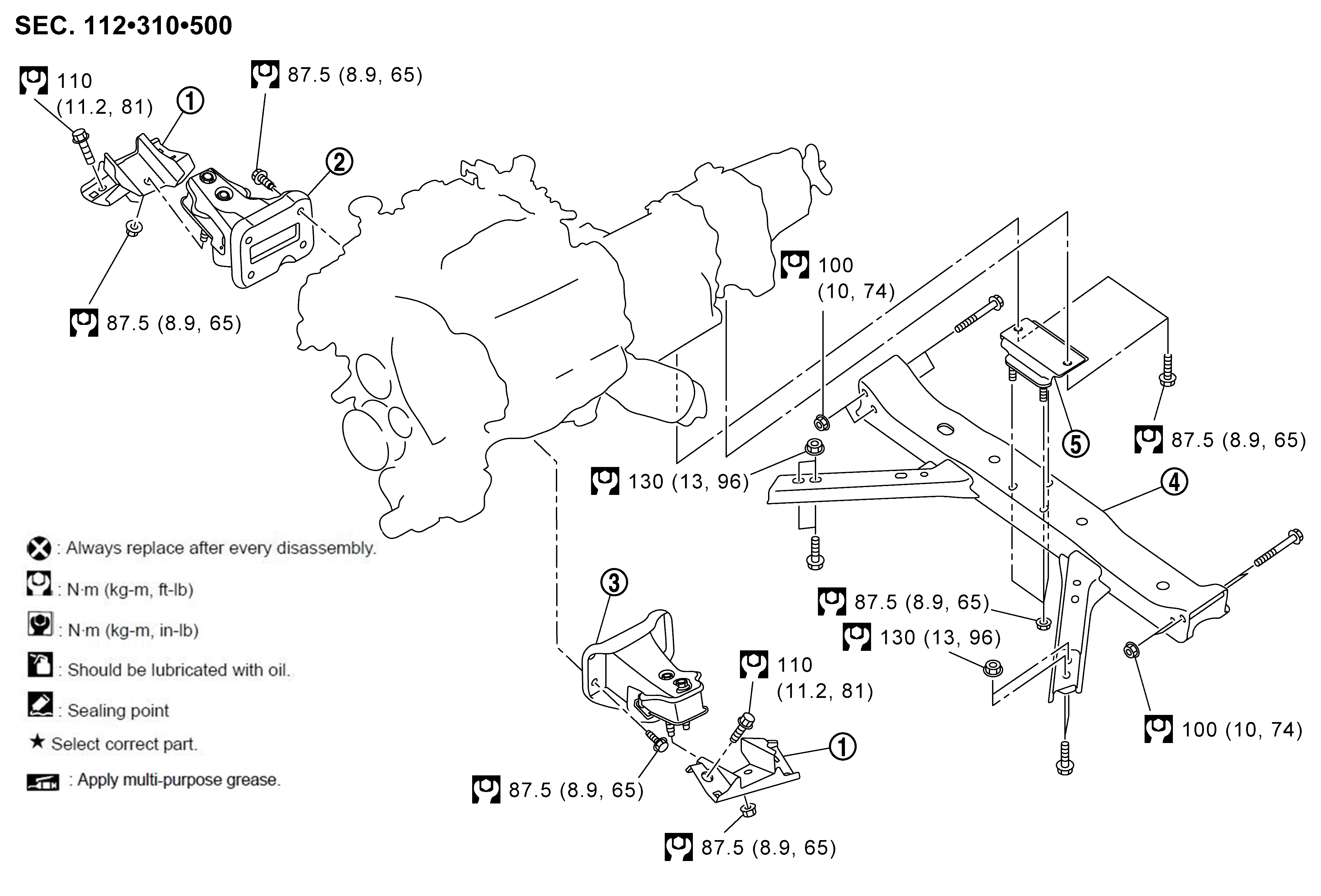

Fig 1: Engine Assembly Components With Torque Specifications - 2WD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting bracket	2.	Engine mounting insulator (RH)	3.	Engine mounting insulator (LH)
4.	Rear engine mounting cross member	5.	Rear engine mounting insulator
: N.m (kg-m, ft-lb)

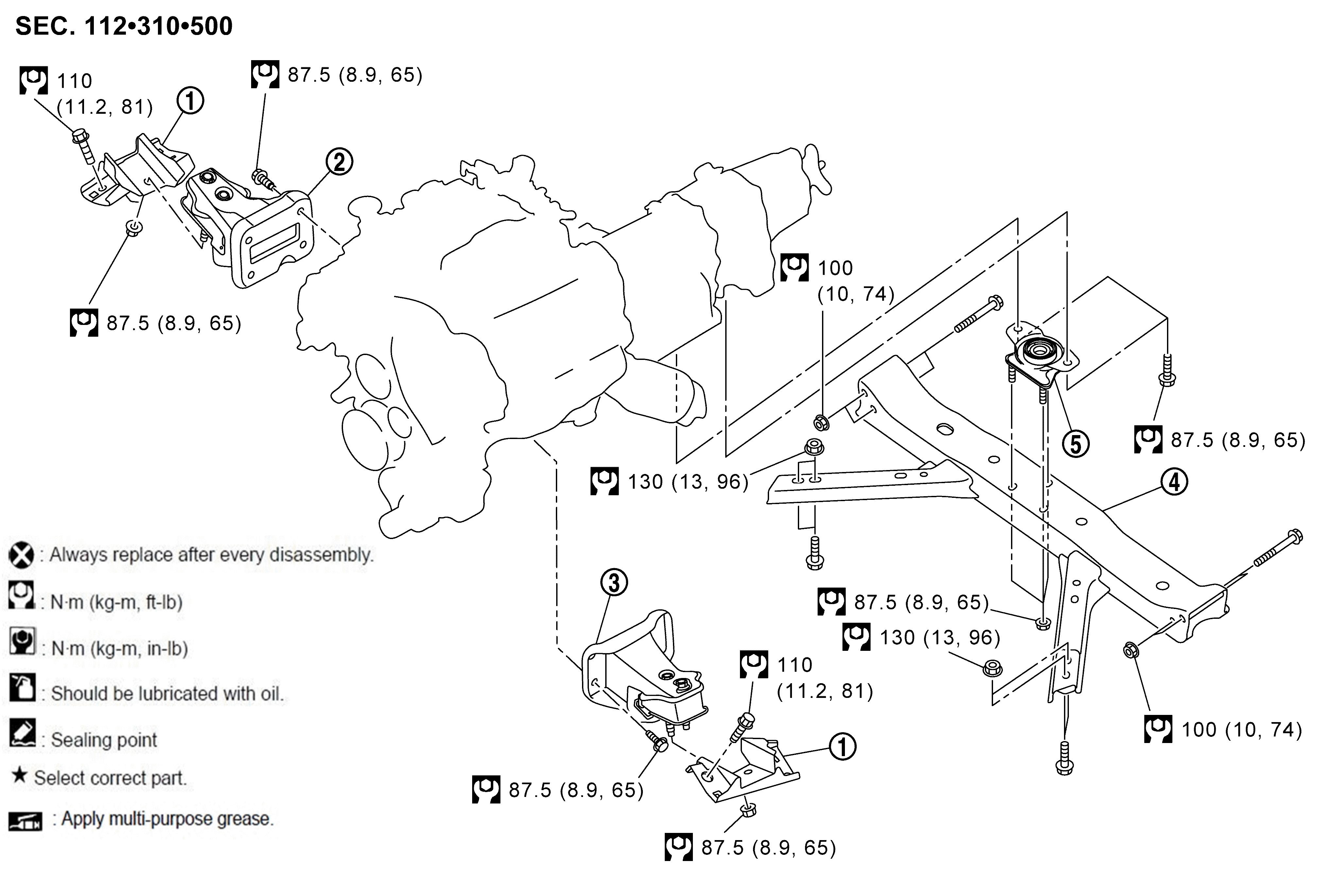

Fig 2: Engine Assembly Components With Torque Specifications - AWD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting bracket	2.	Engine mounting insulator (RH)	3.	Engine mounting insulator (LH)
4.	Rear engine mounting cross member	5.	Rear engine mounting insulator
: N.m (kg-m, ft-lb)
