General Specifications
|
Cylinder arrangement |
V-8 |
||||||
|
Displacement cm 3 (cu in) |
5, 552 (338.80) |
||||||
|
Bore and stroke mm (in) |
98.0 x 92.0 (3.86 x 3.62) |
||||||
|
Valve arrangement |
DOHC |
||||||
|
Firing order |
1-8-7-3-6-5-4-2 |
||||||
|
Number of piston rings |
Compression |
2 |
|||||
|
Oil |
1 |
||||||
|
Number of main bearings |
5 |
||||||
|
Compression ratio |
11.2 |
||||||
|
Compression pressure kPa (kg/cm 2 , psi)/200 RPM |
Standard |
1, 820 (18.5, 264) |
|||||
|
Minimum |
1, 670 (17.0, 242) |
||||||
|
Differential limit between cylinders |
100 (1.0, 15) |
||||||
|

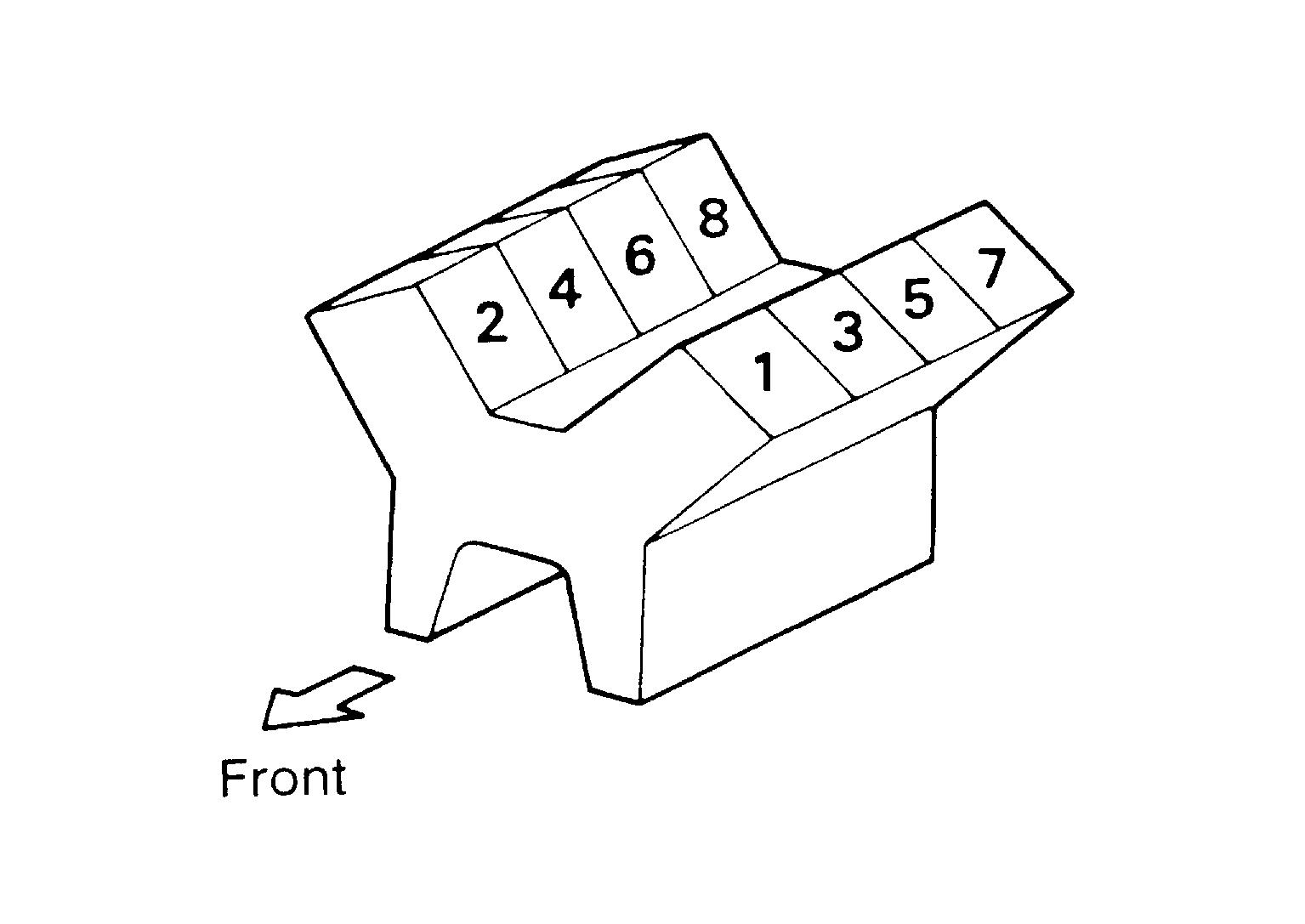

Cylinder number |
|||||||
|
Unit: degree |
|||||||
|
Valve timing |
Intake valve open (BTDC) |
(-74) - (+ 68) |
|||||
|
Intake valve close (ABDC) |
(+148) - (+290) |
||||||
|
Exhaust valve open (BBDC) |
(+201) - (+236) |
||||||
|
Exhaust valve close (ATDC) |
(+8) - (+43) |
||||||
