Exploded View

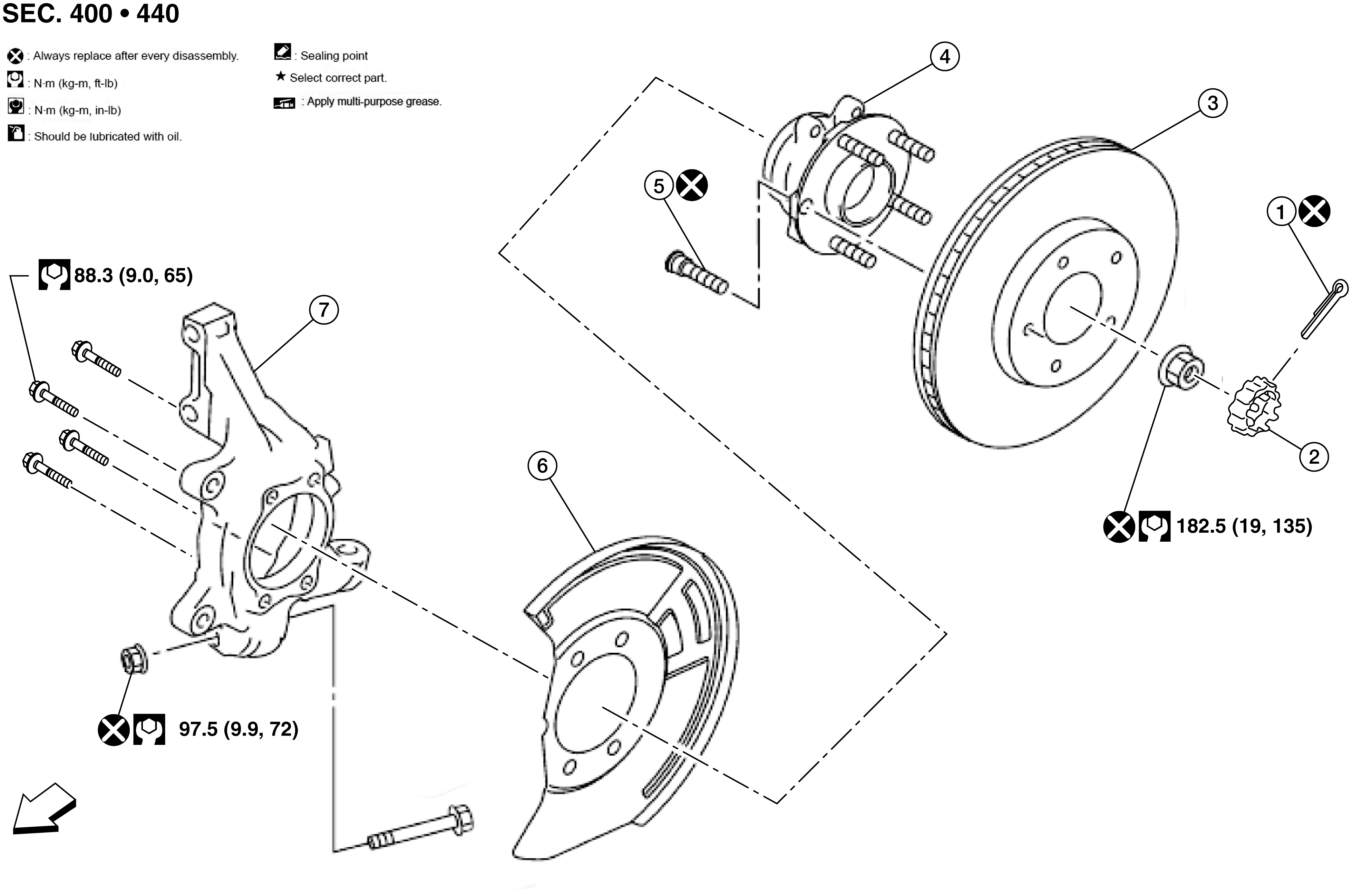

Fig 1: Steering Knuckle With Torque Specifications
GNSAWEIA0247GB-247Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cotter pin

2.

Nut retainer

3.

Rotor

4.

Wheel hub and bearing assembly

5.

Wheel hub bolt

6.

Splash guard

7.

Steering knuckle

SYMBOL

Front
