Disassembly and Assembly: Disassembly

  1. Remove center console assembly. Refer to Removal and Installation .
  2. Release center console bin cover using a suitable tool and remove.

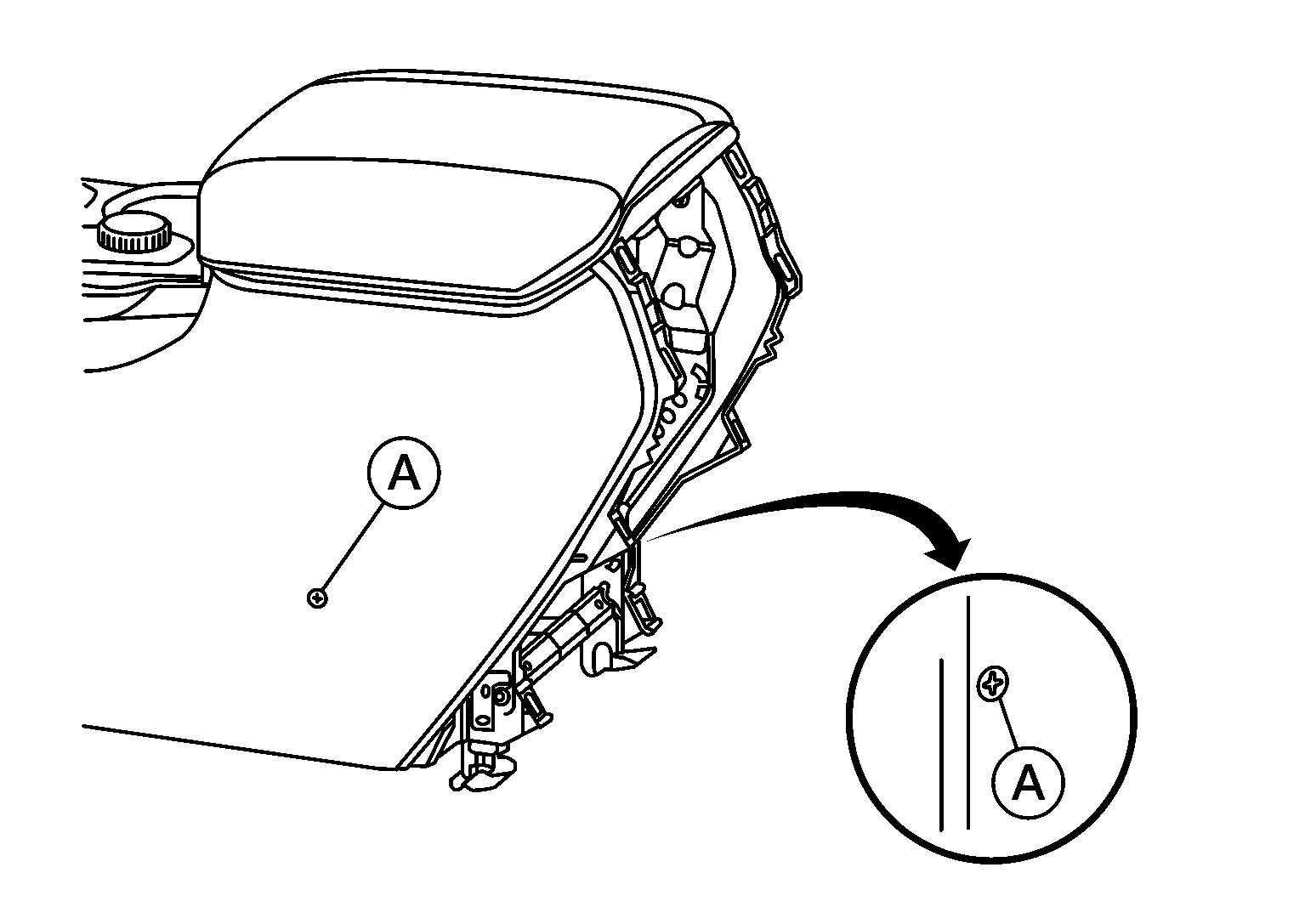

  3. Remove center console bin screws (A).
    GNSALJIA1093Z-093Courtesy of NISSAN NORTH AMERICA, INC.

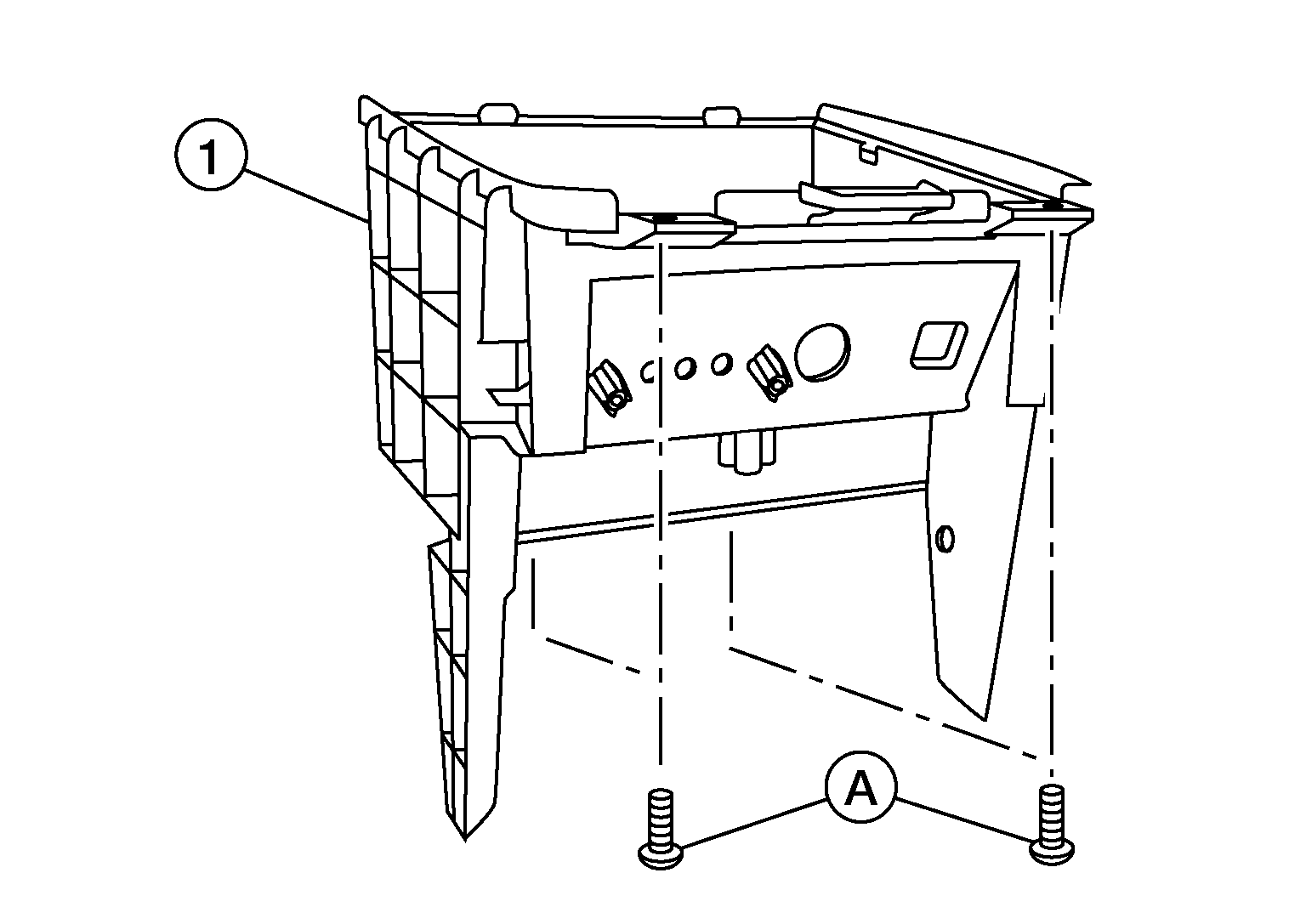

  4. Remove remaining center console bin screws (A), disconnect the harness connectors, then remove the center console bin (1).
    GNSALJIA1891Z-891Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove power socket from the center console bin (if necessary). Refer to Removal and Installation .
  6. Remove front auxiliary input jacks from the center console bin (if necessary). Refer to Removal and Installation .
