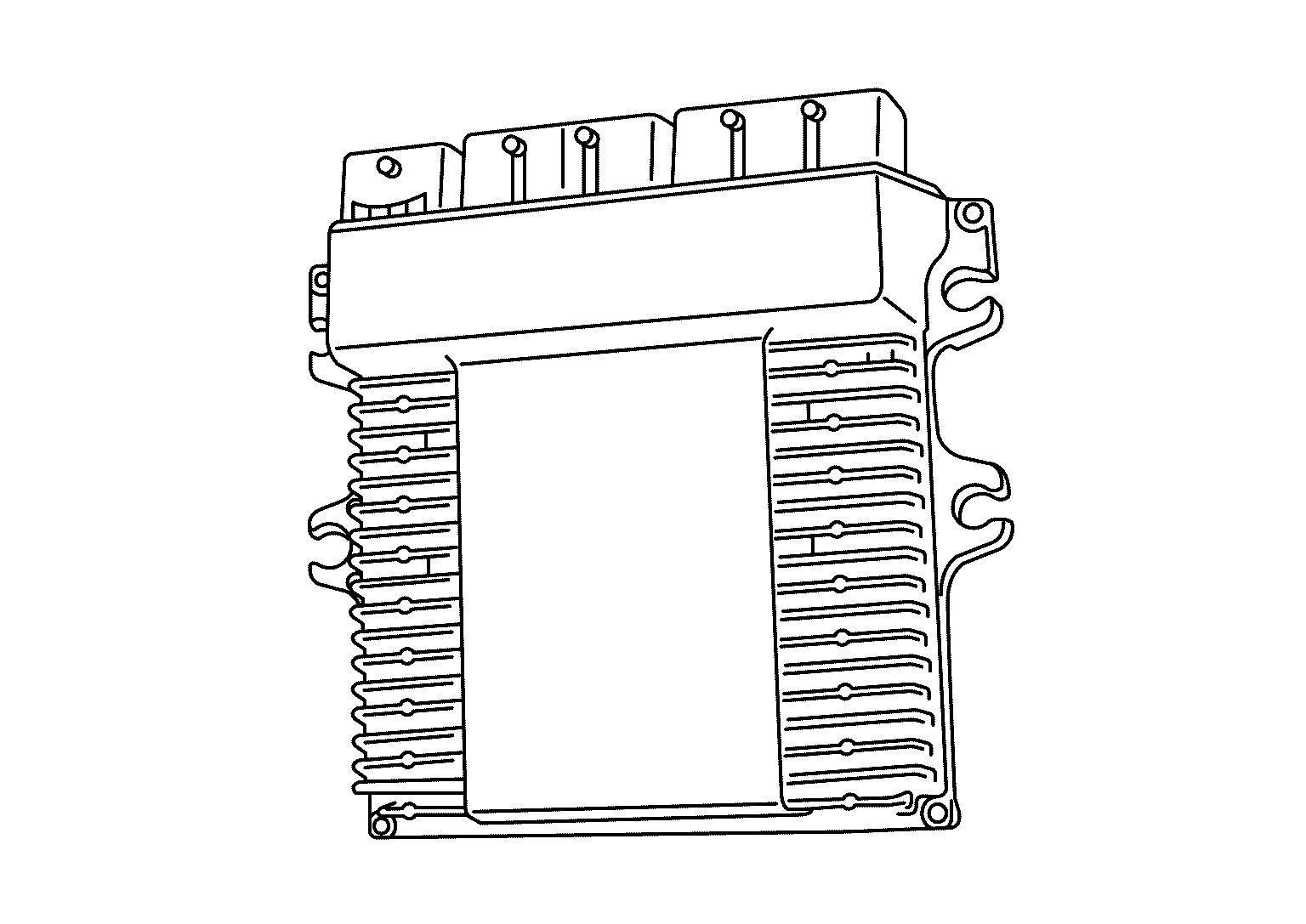

ECM (With Barometric Pressure Sensor)

The ECM consists of a microcomputer and connectors for signal input and output and for power supply. The ECM controls the engine.

GNSJSBIB0089Z-089Courtesy of NISSAN NORTH AMERICA, INC.
