Removal and Installation: Removal

  1. Remove the shift selector handle. Refer to EXPLODED VIEW .
  2. Remove the center console upper side finisher LH and RH. Refer to Exploded View .
  3. Remove the shift selector finisher. Refer to Exploded View .
  4. Lift the shift selector finisher and disconnect the harness connectors.
  5. Remove the shift selector finisher from vehicle.

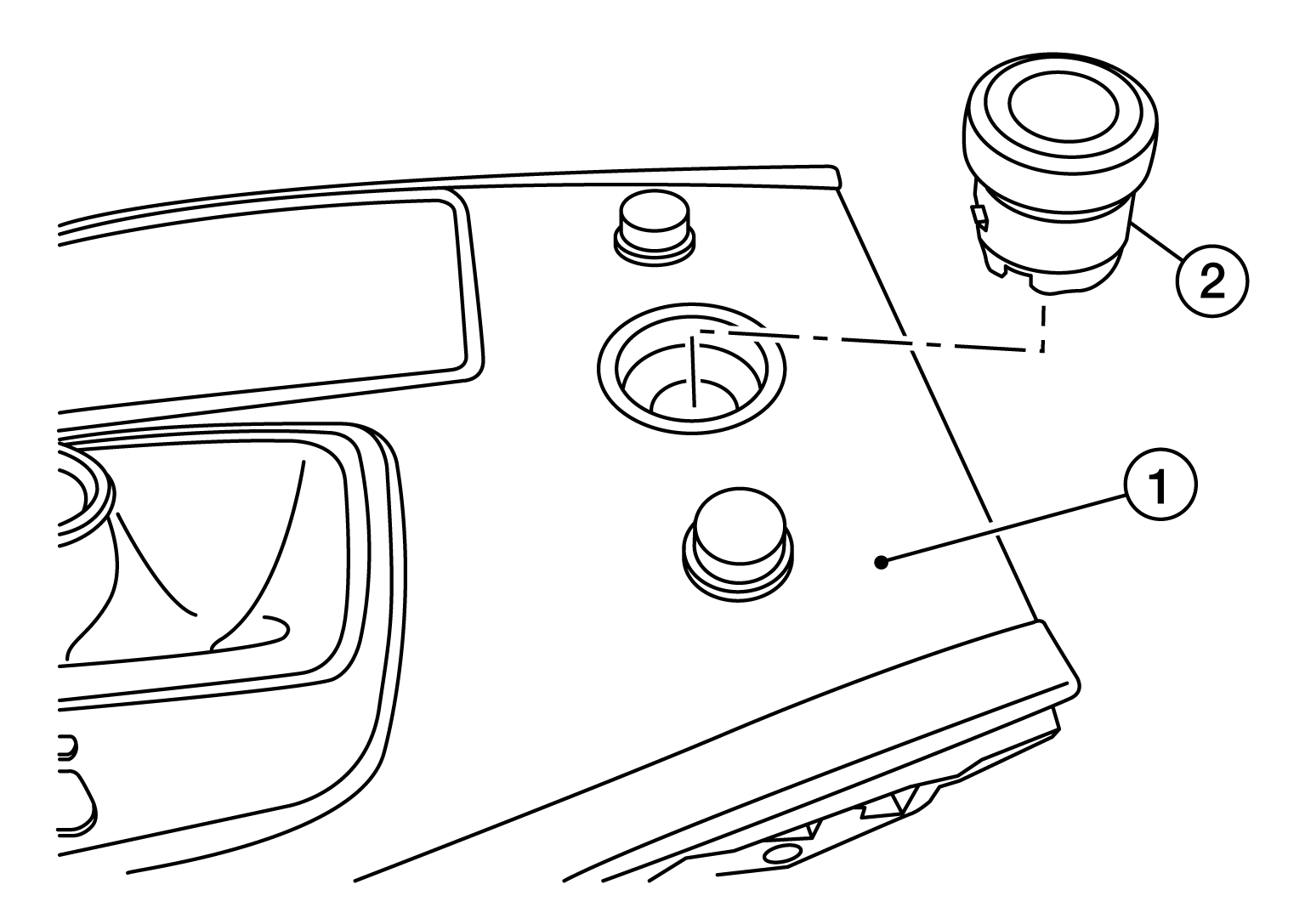

    GNSDB117133Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove the drive mode select switch (2) from the shift selector finisher (1) by prying the locking tabs, and push the switch through the top-side.
