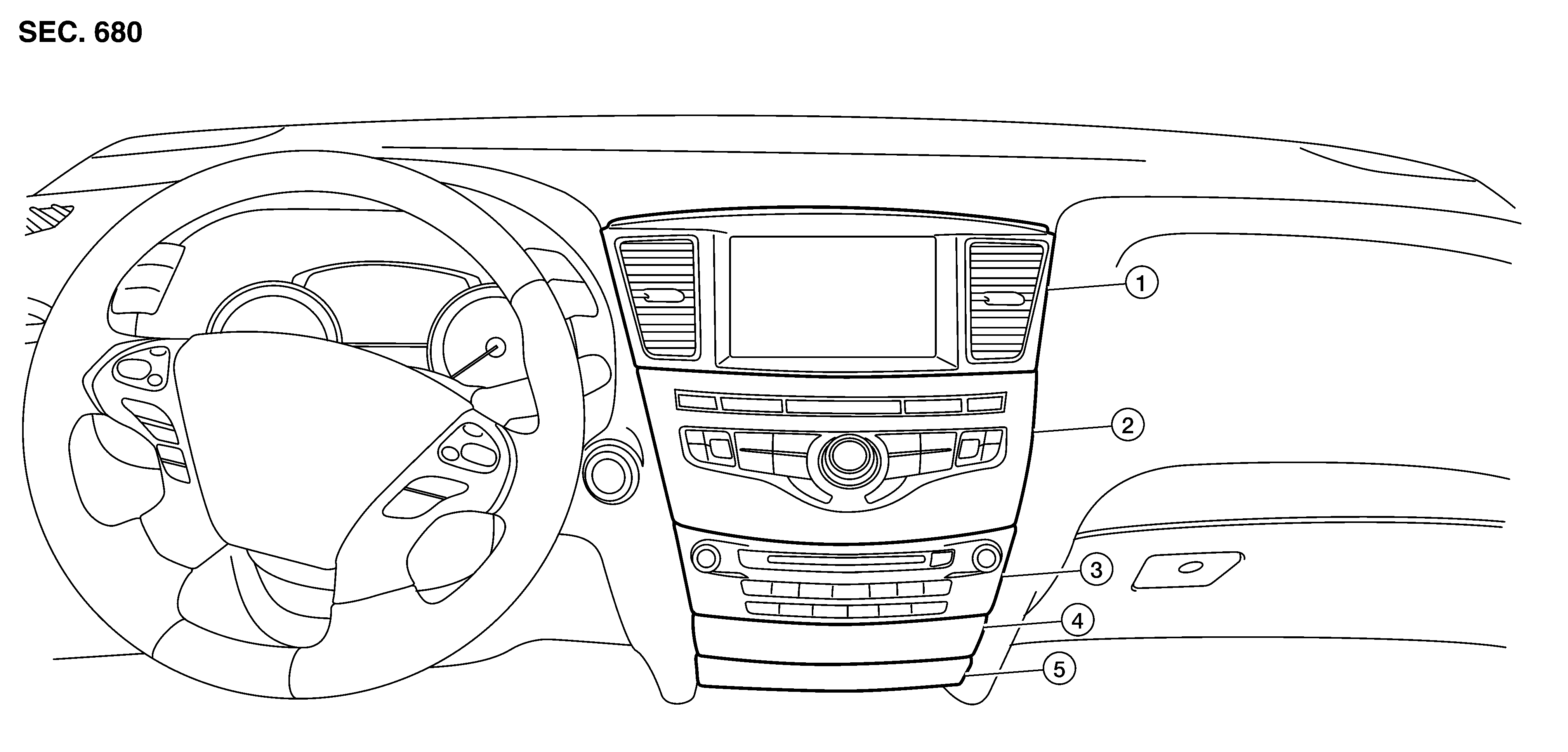

Exploded View

GNSDB116623Courtesy of NISSAN NORTH AMERICA, INC.

1.

Cluster lid D

2.

Cluster lid C upper

3.

AV and A/C switch assembly

4.

Cluster lid C

5.

Cluster lid C lower
