Home >> Infiniti >> 2018 >> QX60 AWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle >> Removal And Installation >> Front Drive Shaft Boot >> Exploded View >> LH

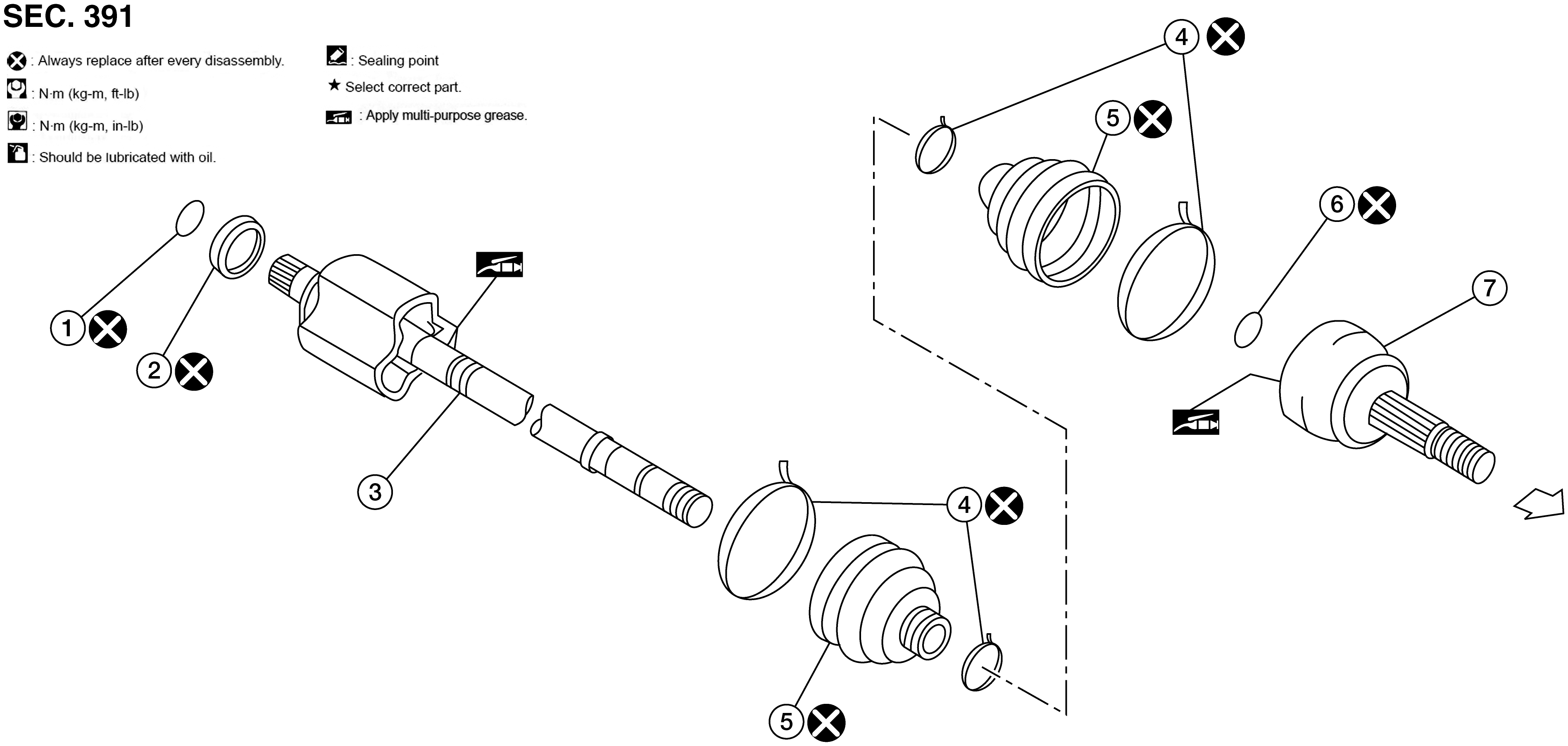

Exploded View: LH

GNSAWDIA0981Z-981Courtesy of NISSAN NORTH AMERICA, INC.

1.

Circular clip

2.

Dust shield

3.

Housing assembly

4.

Boot band

5.

Boot

6.

Circular clip

7.

Joint sub-assembly

SYMBOL

Wheel side

SYMBOL

Fill NISSAN Genuine grease or equivalent.
