Disassembly and Assembly (LH): Disassembly

Transaxle Side

1. Mount front drive shaft in a vise.
   CAUTION: When mounting shaft in a vise, always use copper or aluminum plates between vise and shaft.
2. Remove boot bands and slide the boot back.
3. Remove circlip and dust shield from slide joint housing.
4. Put matching marks on slide joint housing and shaft before separating joint assembly.

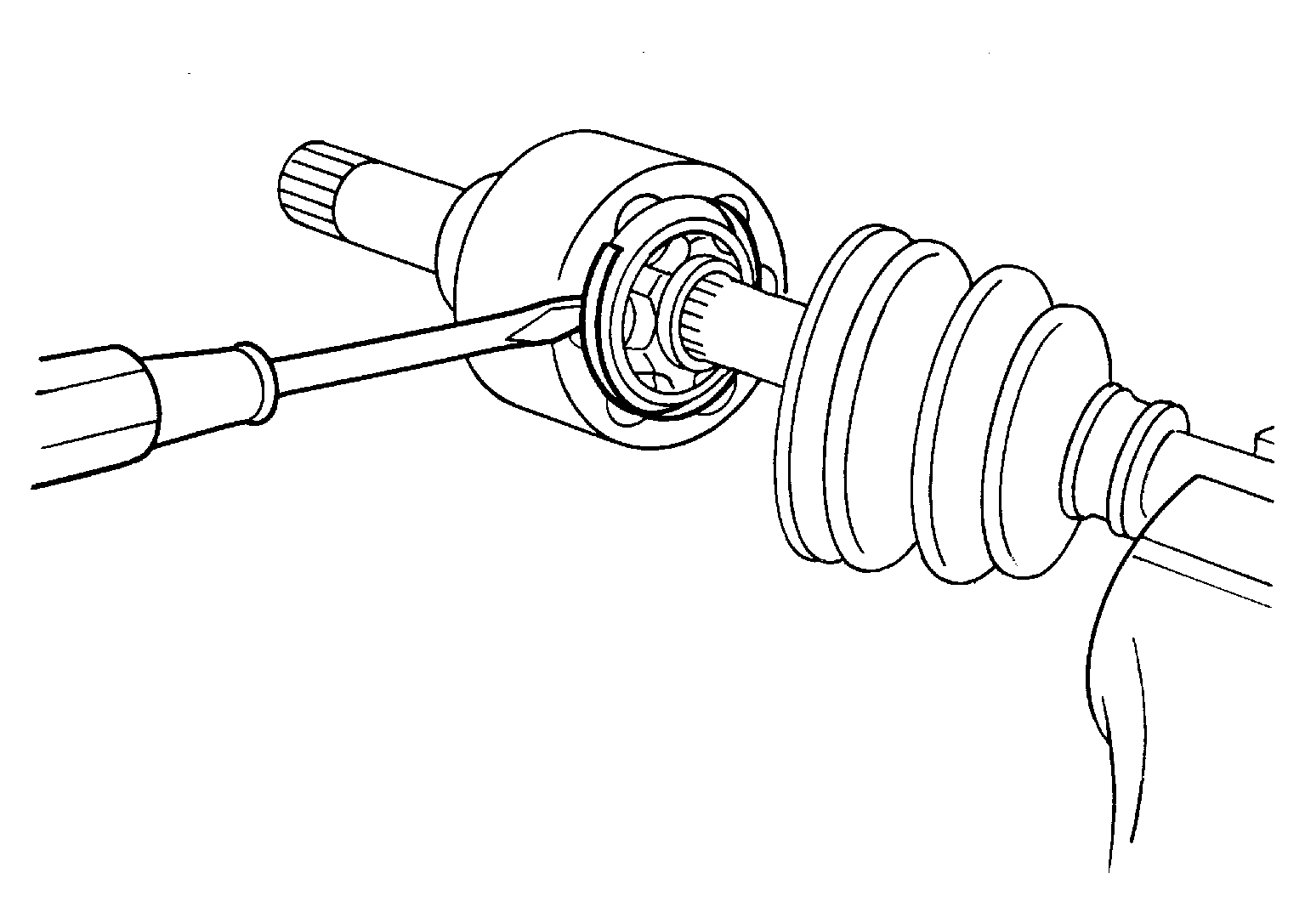

5. Remove stopper ring with a suitable tool, then pull out slide joint housing.

   Courtesy of NISSAN NORTH AMERICA, INC.

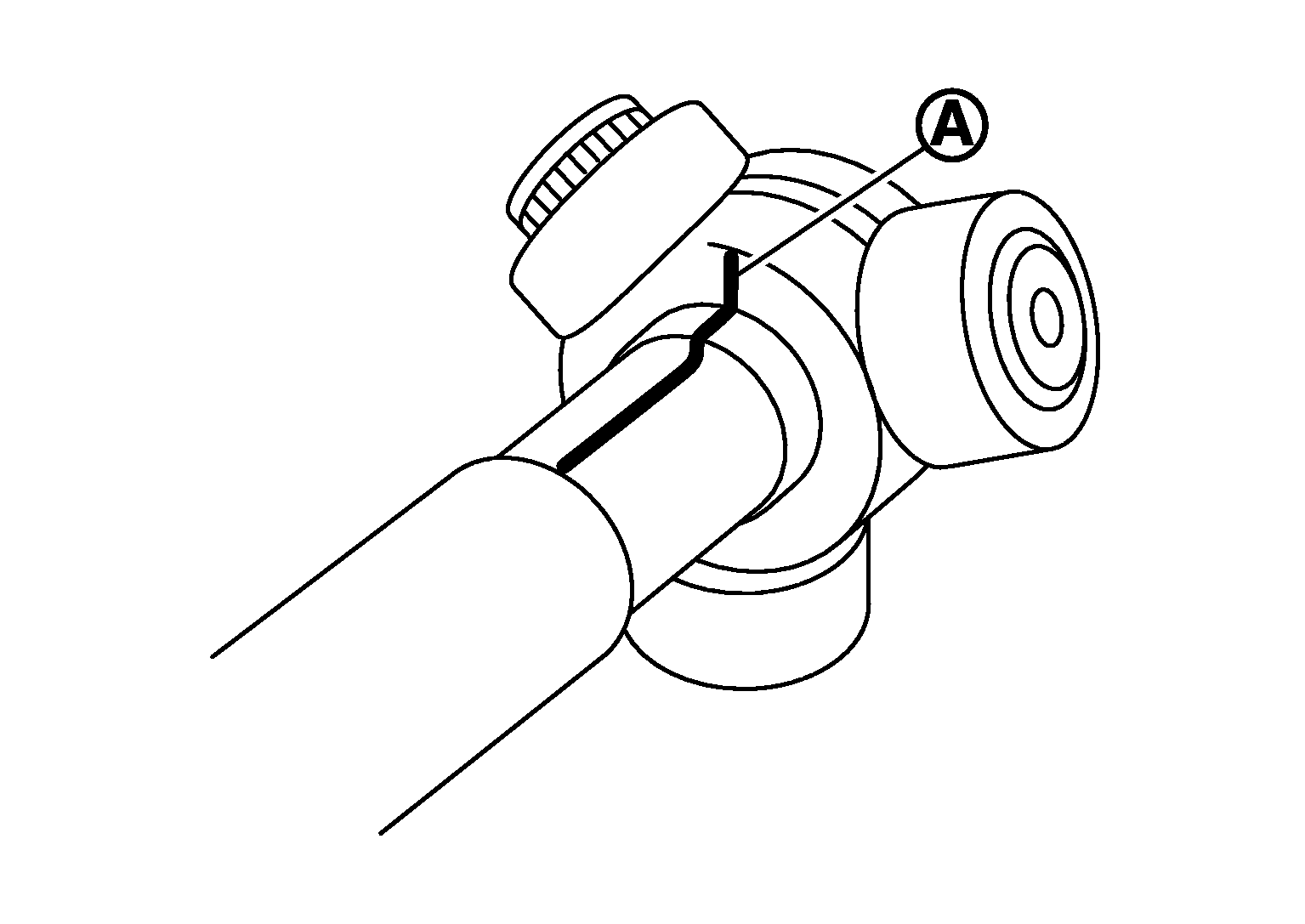

6. Put matching mark (A) on spider assembly and shaft.

   Courtesy of NISSAN NORTH AMERICA, INC.

7. Remove snap ring (1) using a suitable tool, then remove spider assembly from shaft.

   Courtesy of NISSAN NORTH AMERICA, INC.

8. Remove boot from shaft.
9. Clean the old grease off of the slide joint assembly.

Wheel Side

1. Mount the front drive shaft in a vise.
   CAUTION: When mounting shaft in a vise, always use copper or aluminum plates between vise and shaft.
2. Remove boot bands and slide the boot back.

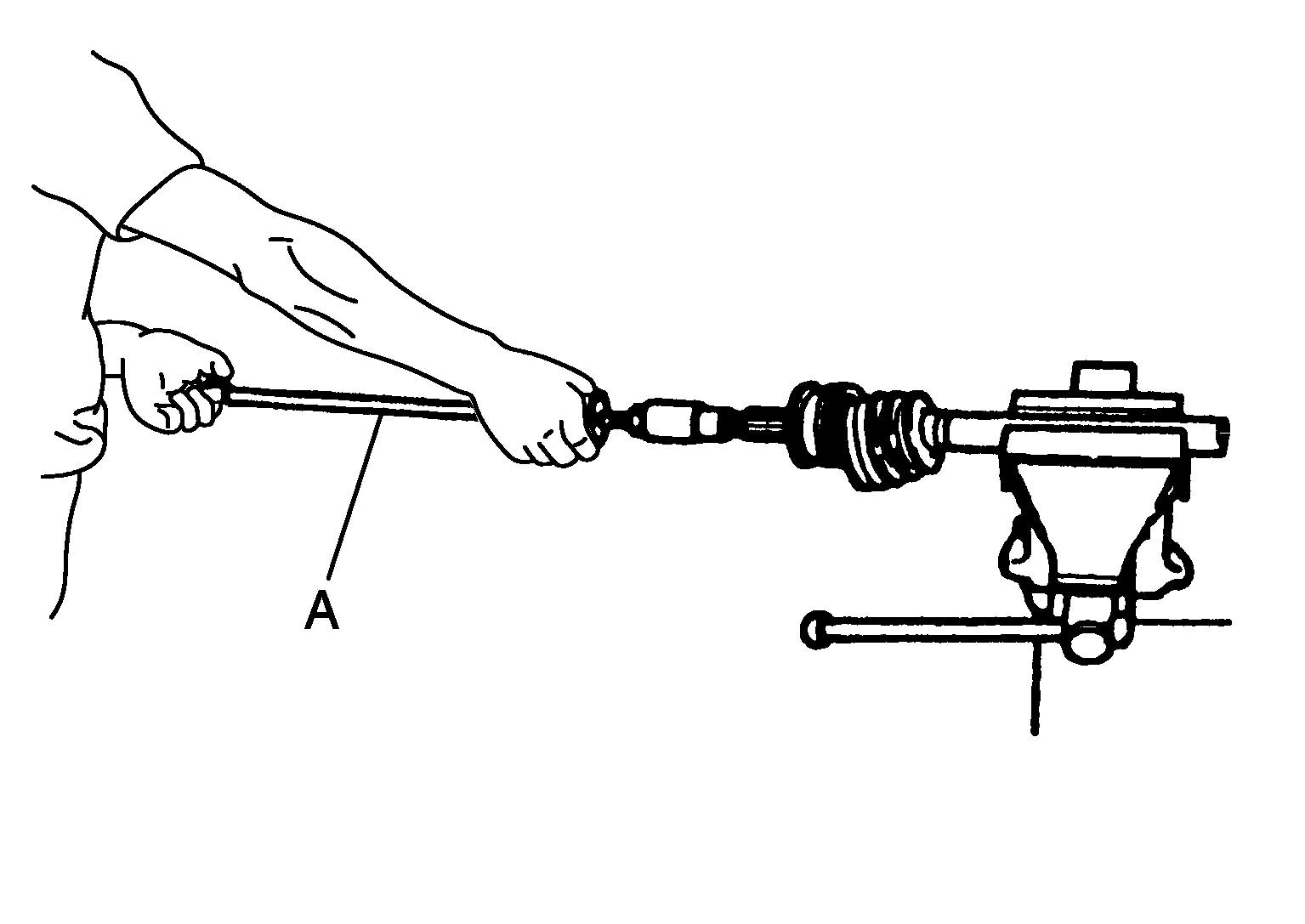

3. Screw a suitable tool (A) 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly out of shaft.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION:

   • Align suitable tool and drive shaft then remove joint sub-assembly by pulling directly.
   • If joint sub-assembly cannot be removed after five or more unsuccessful attempts, replace the entire drive shaft assembly.
4. Remove boot from shaft.
5. Remove circlip from shaft.
6. While rotating ball cage, clean the old grease off of the joint sub-assembly.

Damper

• Remove damper bands, then remove damper from shaft.
