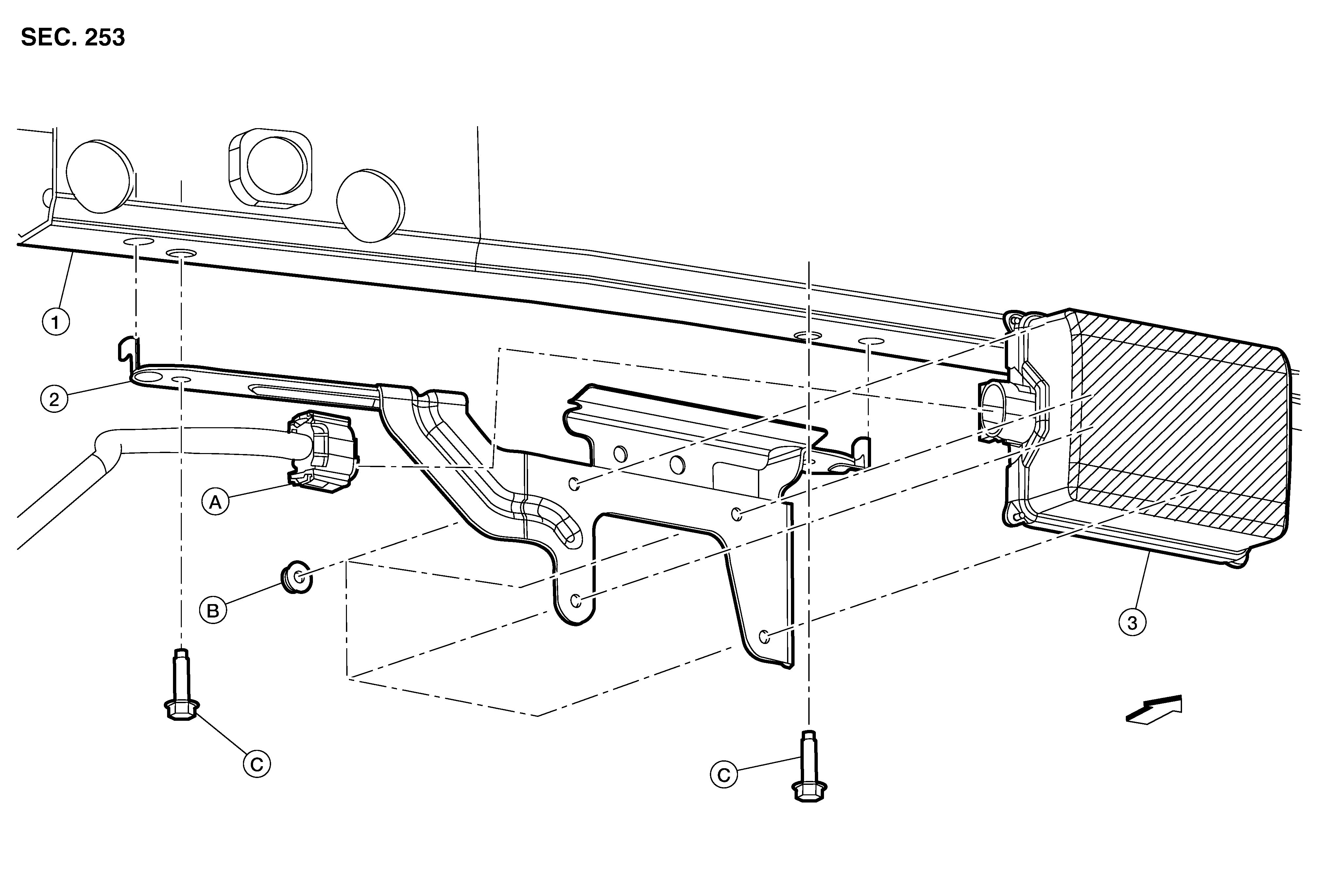

Exploded View

GNSALOIA0380Z-380Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front bumper reinforcement

2.

ICC sensor bracket

3.

ICC sensor

A.

ICC sensor harness connector

B.

Refer to INSTALLATION .

C.

Refer to INSTALLATION .

SYMBOL

Front
