Exploded View

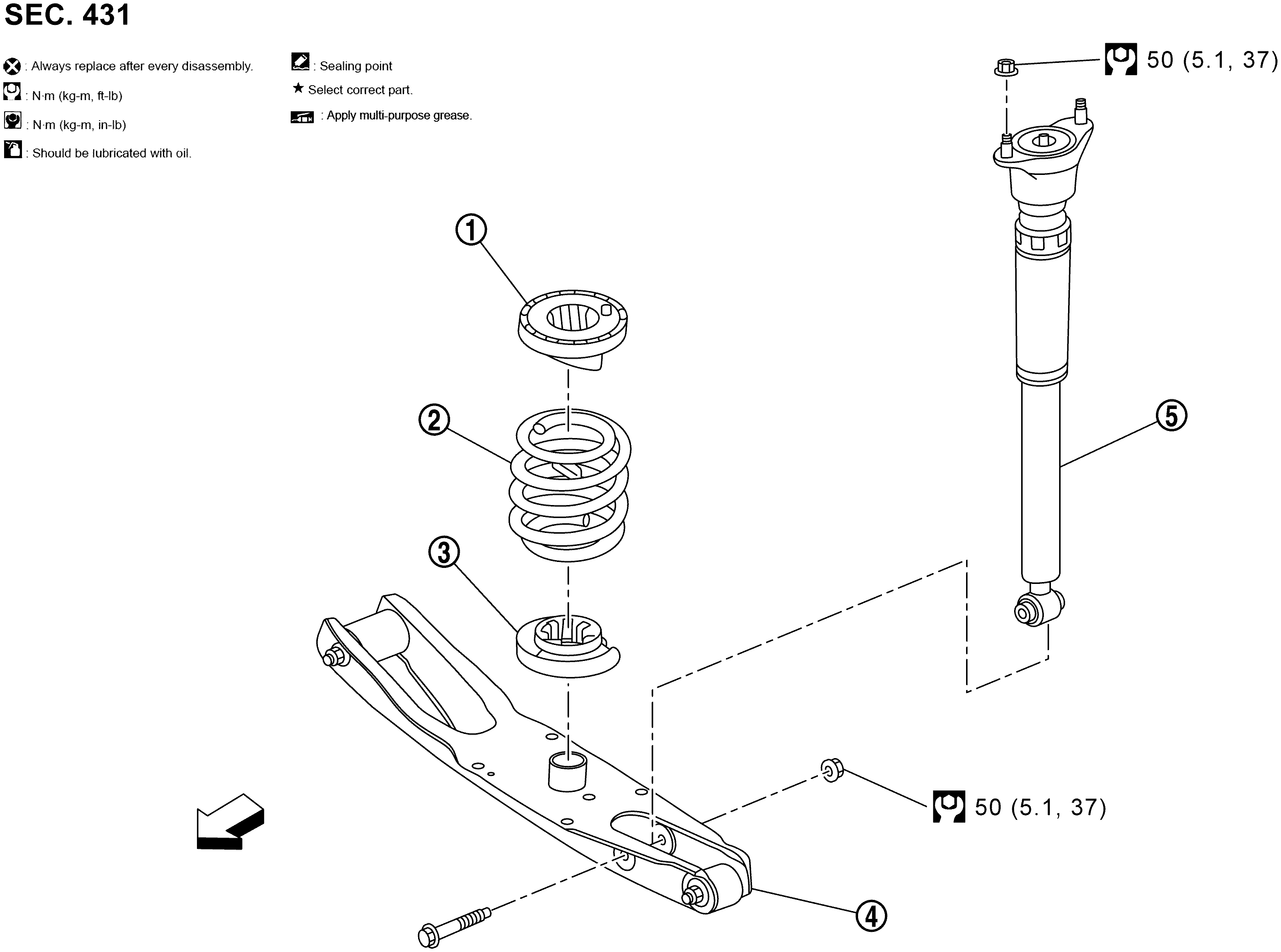

Fig 1: Rear Coil Spring And Shock Absorber Replacement Components With Torque Specifications
GNSJSEIA1421GB-421Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Upper rubber seat

SYMBOL

Coil spring

SYMBOL

Lower rubber seat

SYMBOL

Rear lower link

SYMBOL

Shock absorber

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)
