System Description
>>
System
>>
System Description
>>

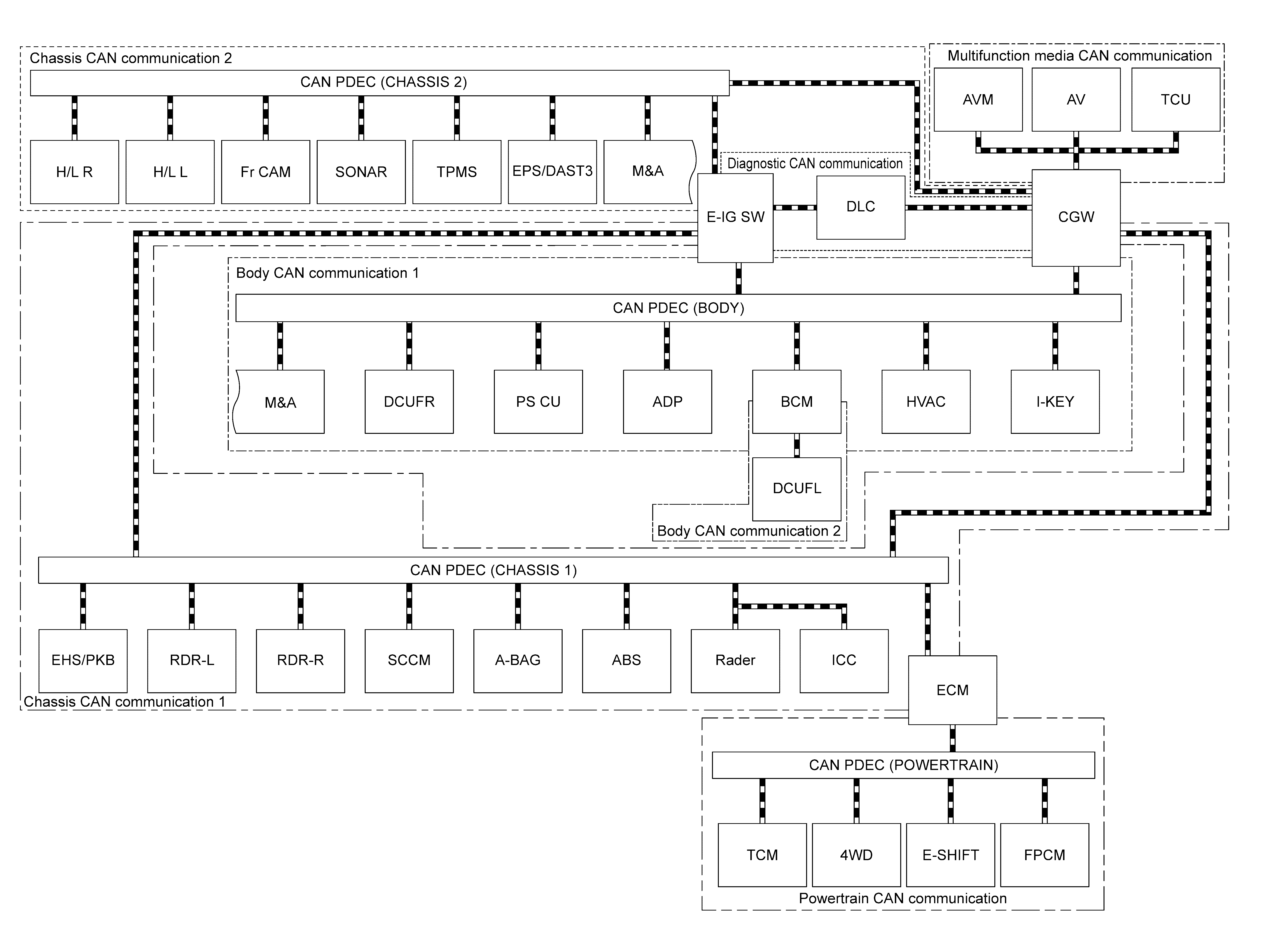

System Diagram
System Diagram
NOTE:
Refer to
Abbreviation List
for the abbreviations.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
