CAN Potential Distributor Electrical Connector

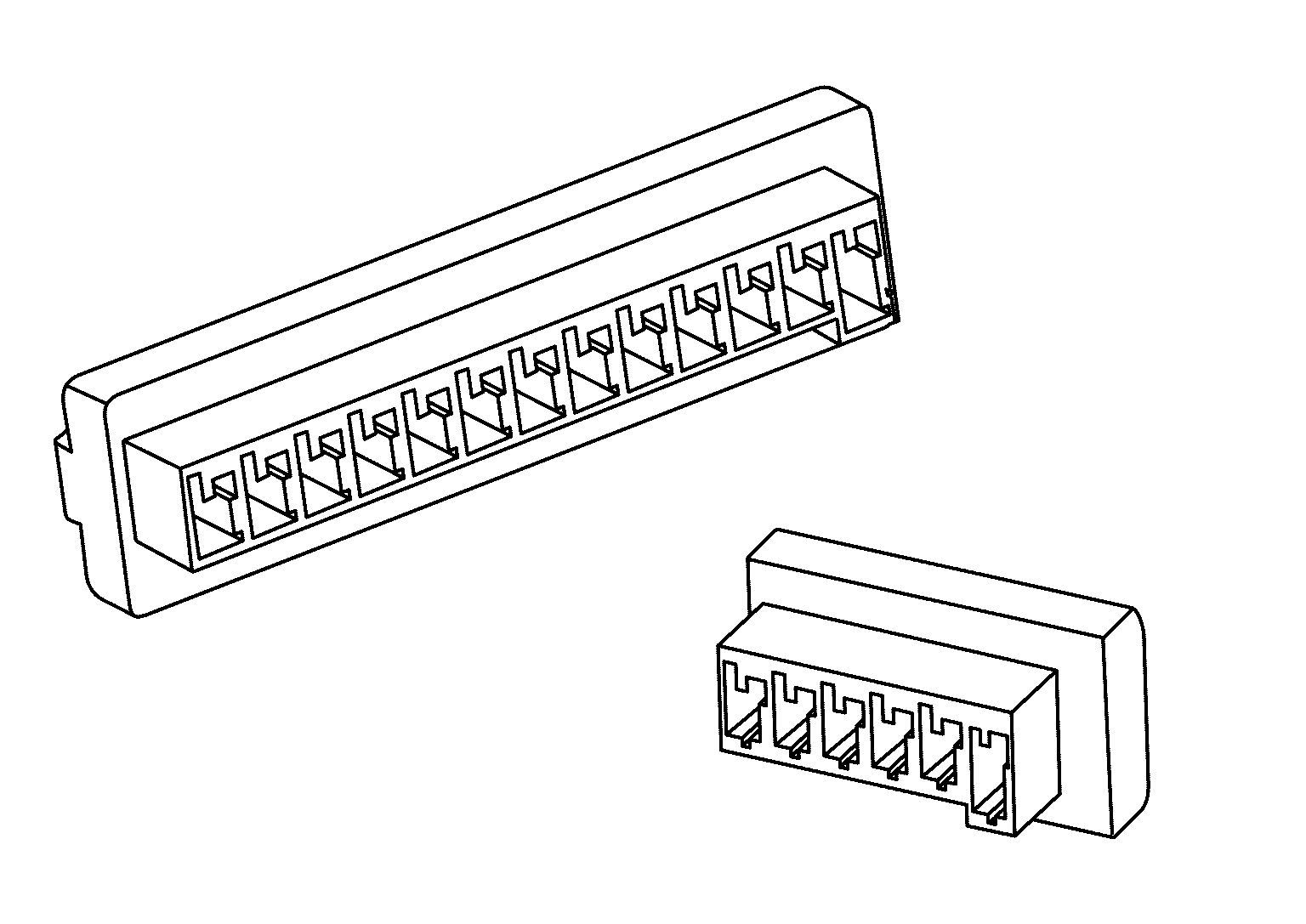

Each ECU is joined with CAN potential distributor electrical connector that distributes CAN communication signal.

Courtesy of NISSAN NORTH AMERICA, INC.

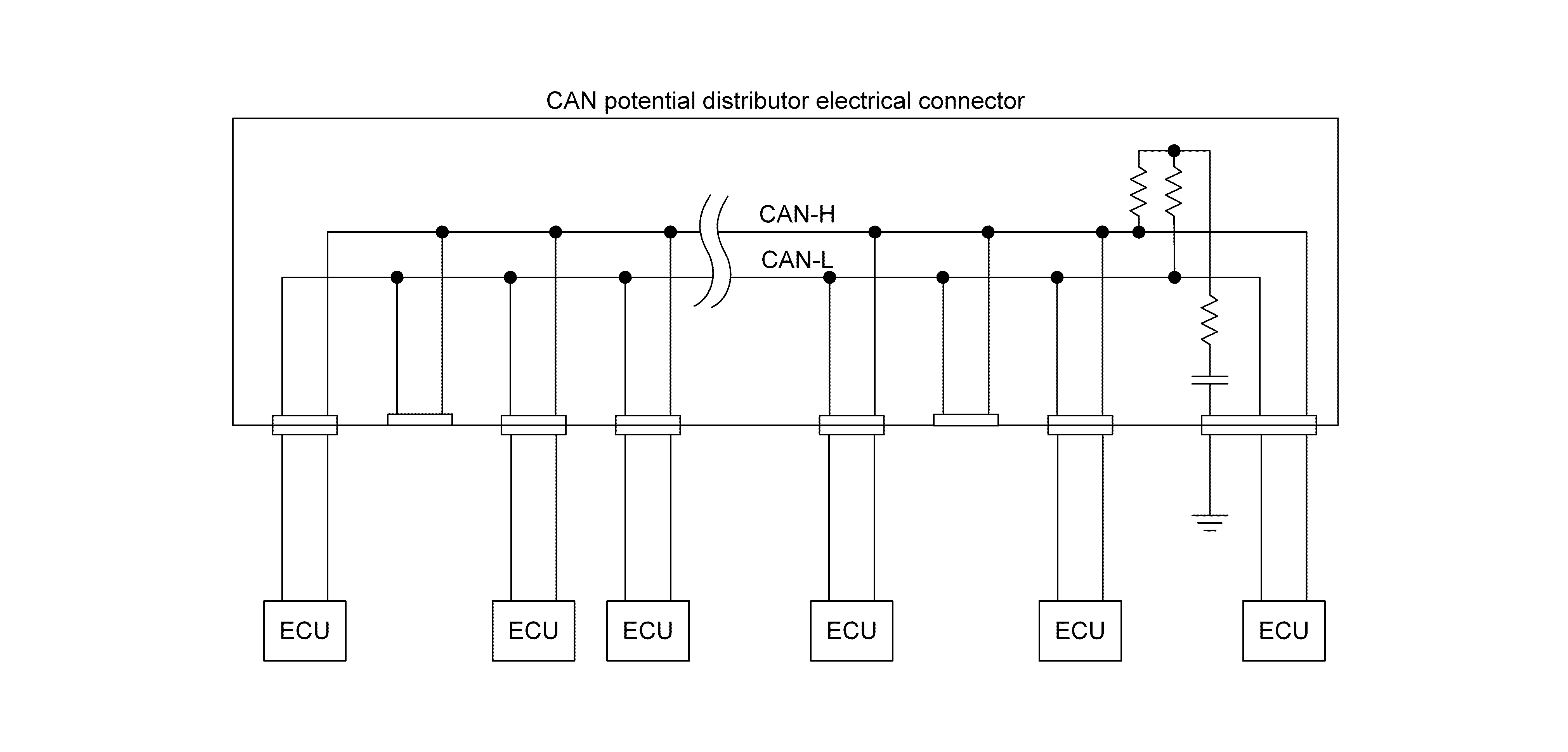

CAN potential distributor electrical connector has same shape connector (slot) in parallel and connects ECU on each network.

CAN potential distributor electrical connector	The number of slots (Connector)
Powertrain	6
Body	13
Chassis 1	13
Chassis 2	13

CAN potential distributor electrical connector has built-in resistance and condenser.

Courtesy of NISSAN NORTH AMERICA, INC.
