Exploded View

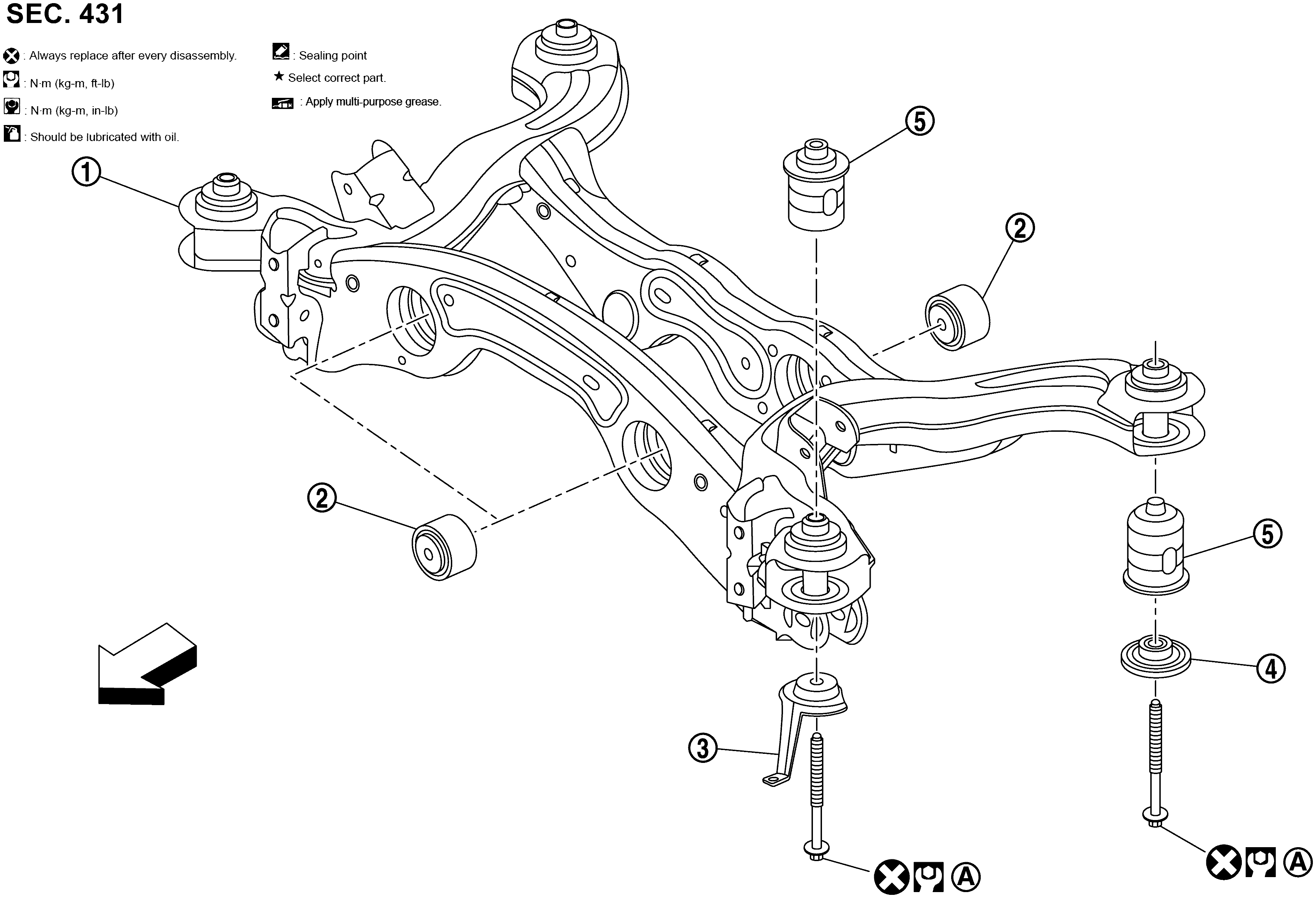

GNSJSEIA1427GB-427Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Rear suspension member

SYMBOL

Bushing (AWD)

SYMBOL

Mount stopper

SYMBOL

Mount stopper (AWD)

SYMBOL

Rear suspension member bushing (AWD)

SYMBOL : Tightening must be done following the installation procedure. Refer to Removal and Installation .

SYMBOL : Vehicle front

SYMBOL : Always replace after every disassembly.

SYMBOL : N.m (kg-m, ft-lb)
