Wheel Alignment: Adjustment: Toe-In

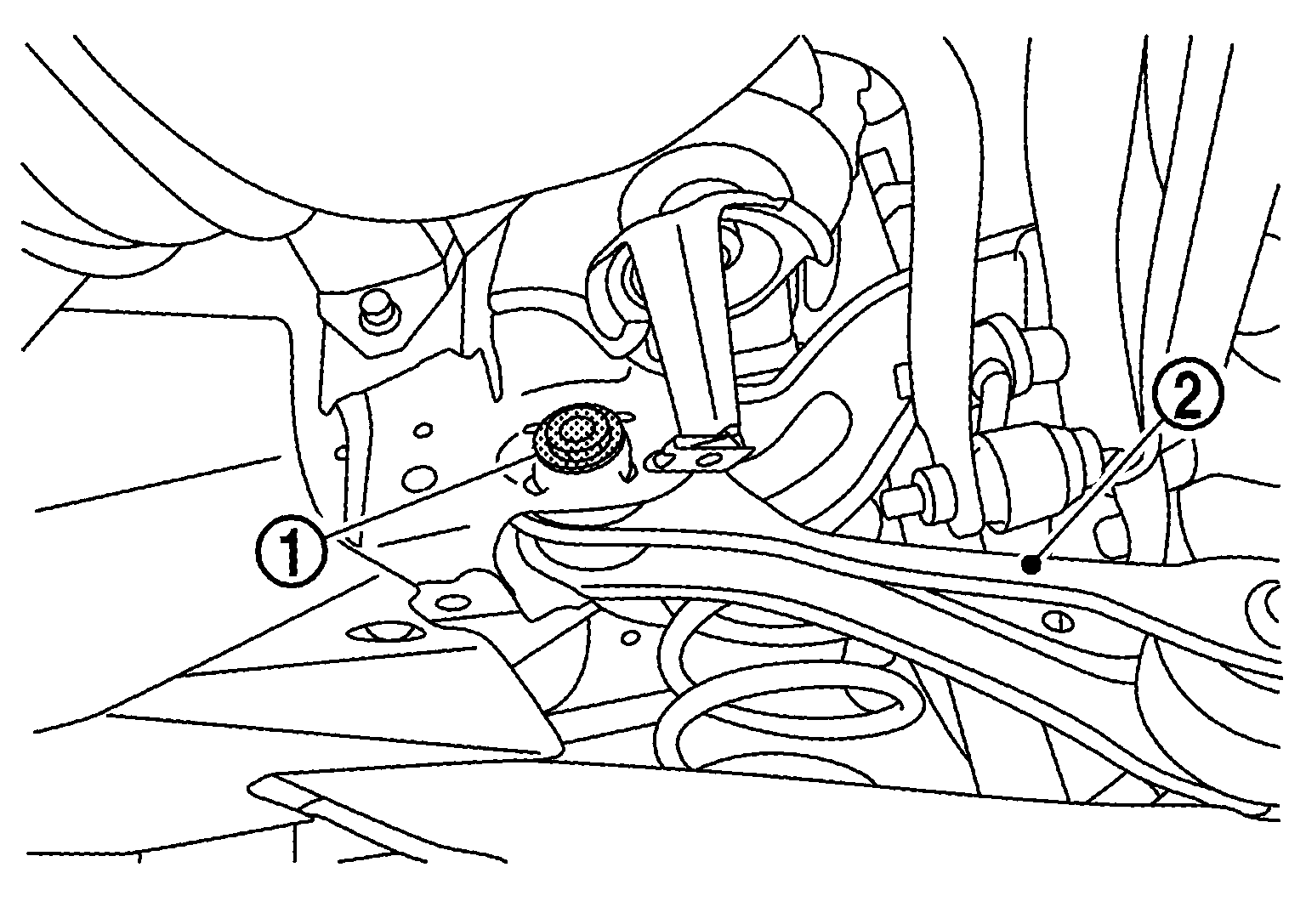

  1. Loosen the front lower link mounting nut, adjust with adjusting bolt SYMBOL in front lower link SYMBOL .
    GNSJSEIA1714Z-714Courtesy of NISSAN NORTH AMERICA, INC.

    Toe-In: Refer to Wheel Alignment .
    NOTE: If toe-in is not still within the specification, the front lower link must be replaced.
  2. Tighten front lower link mounting nut.
  3. After toe-in adjustment, perform test drive. Refer to Description .
