Physical Values

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

Terminal No. (wire color)		Description		Condition		Voltage
+	-	Signal name	Input/Output
1 (Y)	Ground	Tilt switch up signal	Input	Tilt switch	Operate (up)	0 - 1 V
					Other than the above	4 - 6 V
2 (LG)	Ground	Changeover switch RH signal	Input	Changeover switch position	RH	0 - 1 V
					Neutral or LH	4 - 6 V
3 (G)	Ground	Mirror switch up signal	Input	Mirror switch	Operate (up)	0 - 1 V
					Other than the above	4 - 6 V
4 (Y)	Ground	Mirror switch left signal	Input	Mirror switch	Operate (left)	0 - 1 V
					Other than the above	4 - 6 V
5 (R)	Ground	Door mirror sensor (passenger side) up/down signal	Input	Door mirror RH position		Change between 3.4 (close to peak) 0.6 (close to valley)
6 (GR)	Ground	Door mirror sensor (driver side) up/down signal	Input	Door mirror LH position		Change between 3.4 (close to peak) 0.6 (close to valley)
7 (GR)	Ground	Telescopic switch forward signal	Input	Telescopic switch	Operate (forward)	0 - 1 V
					Other than the above	4 - 6 V

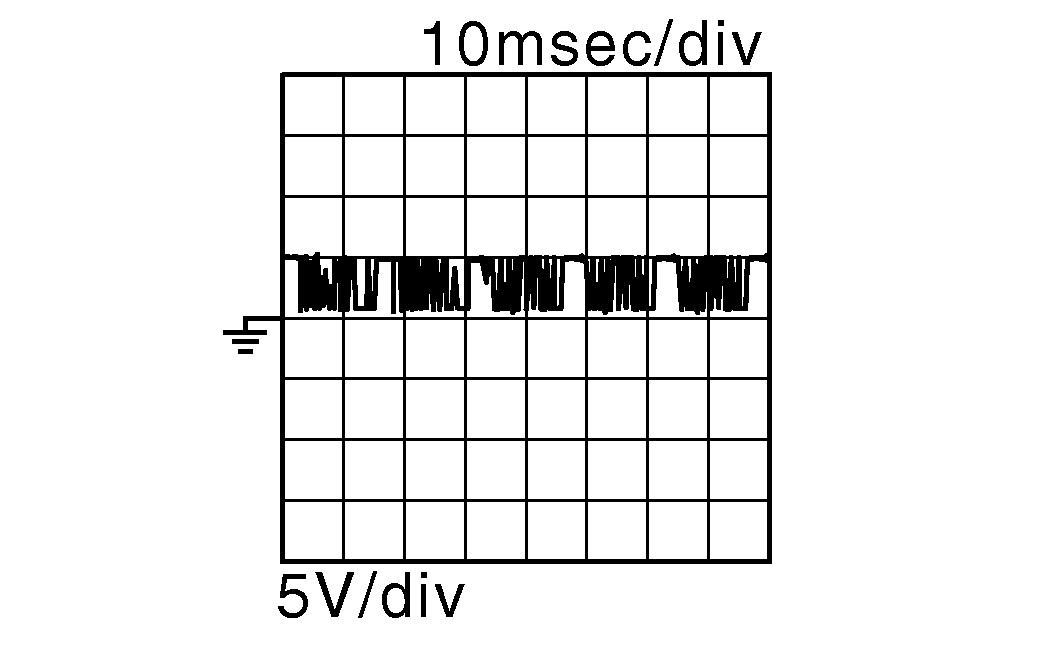

8 (V)	Ground	UART communication (TX/RX)	Input/Output	Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC.
10 (W/B)	Ground	Door mirror motor (passenger side) up output signal	Output	Door mirror RH	Operate (up)	9 - 16 V
					Other than the above	0 - 1 V
11 (BR)	Ground	Door mirror motor (passenger side) left output signal	Output	Door mirror RH	Operate (left)	9 - 16 V
					Other than the above	0 - 1 V
12 (Y)	Ground	Door mirror motor (driver side) down/right output signal	Output	Door mirror (LH)	Operate (down/right)	9 - 16 V
					Other than the above	0 - 1 V
13 (LG)	Ground	Tilt switch down signal	Input	Tilt switch	Operate (down)	0 - 1 V
					Other than the above	4 - 6 V
14 (W)	Ground	Changeover switch LH signal	Input	Changeover switch position	LH	0 - 1 V
					Neutral or RH	4 - 6 V
15 (SB)	Ground	Mirror switch down signal	Input	Mirror switch	Operate (down)	0 - 1 V
					Other than the above	4 - 6 V
16 (L)	Ground	Mirror switch right signal	Input	Mirror switch	Operate (right)	0 - 1 V
					Other than the above	4 - 6 V
17 (L)	Ground	Door mirror sensor (passenger side) left/right signal	Input	Door mirror RH position		Change between 3.4 (close to left edge) 0.6 (close to right edge)
18 (B)	Ground	Door mirror sensor (driver side) left/right signal	Input	Door mirror LH position		Change between 0.6 (close to left edge) 3.4 (close to right edge)
19 (G)	Ground	Telescopic switch backward signal	Input	Telescopic switch	Operate (backward)	0 - 1 V
					Other than the above	4 - 6 V
20 (Y)	Ground	Ground (sensor)	--	--		0 - 1 V
21 (W)	Ground	Door mirror motor sensor power supply	Input	--		4 - 6 V
22 (SB)	Ground	Door mirror motor (passenger side) down/right output signal	Output	Door mirror (RH)	Operate (down/right)	9 - 16 V
					Other than the above	0 - 1 V
23 (P)	Ground	Door mirror motor (driver side) up output signal	Output	Door mirror (LH)	Operate (up)	9 - 16 V
					Other than the above	0 - 1 V
24 (W/B)	Ground	Door mirror motor (driver side) left output signal	Output	Door mirror (LH)	Operate (left)	9 - 16 V
					Other than the above	0 - 1 V
25 (SB)	Ground	Battery power supply	Input	--		9 - 16 V
26 (G)	Ground	Telescopic motor backward output signal	Output	Steering telescopic	Operate (backward)	9 - 16 V
					Other than the above	0 - 1 V
27 (W)	Ground	Tilt & telescopic sensor power supply	Output	--		9 - 16 V
28 (BR)	Ground	Tilt motor down output signal	Output	Steering tilt	Operate (down)	9 - 16 V
					Other than the above	0 - 1 V
29 (L)	Ground	Tilt motor up output signal	Output	Steering tilt	Operate (up)	9 - 16 V
					Other than the above	0 - 1 V
		Telescopic motor forward output signal		Steering telescopic	Operate (forward)	9 - 16 V
					Other than the above	0 - 1 V
30 (B)	Ground	Ground (power)	--	--		0 - 1 V
