Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

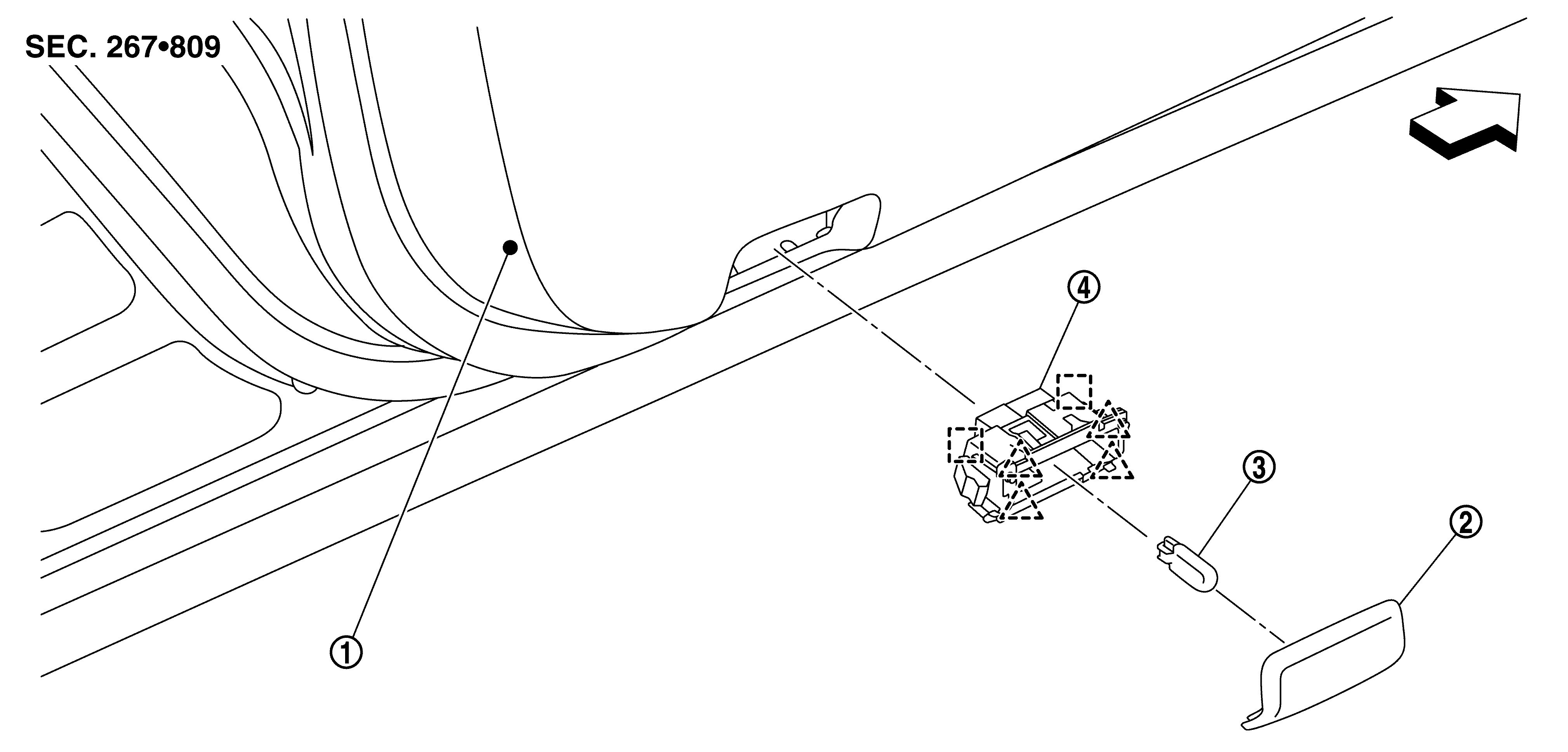

GNSJMLIA4271Z-271Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Front door finisher

SYMBOL

Lens

SYMBOL

Bulb

SYMBOL

Step lamp base

SYMBOL

: Pawl

SYMBOL

: Metal clip

SYMBOL

: Vehicle front
