Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

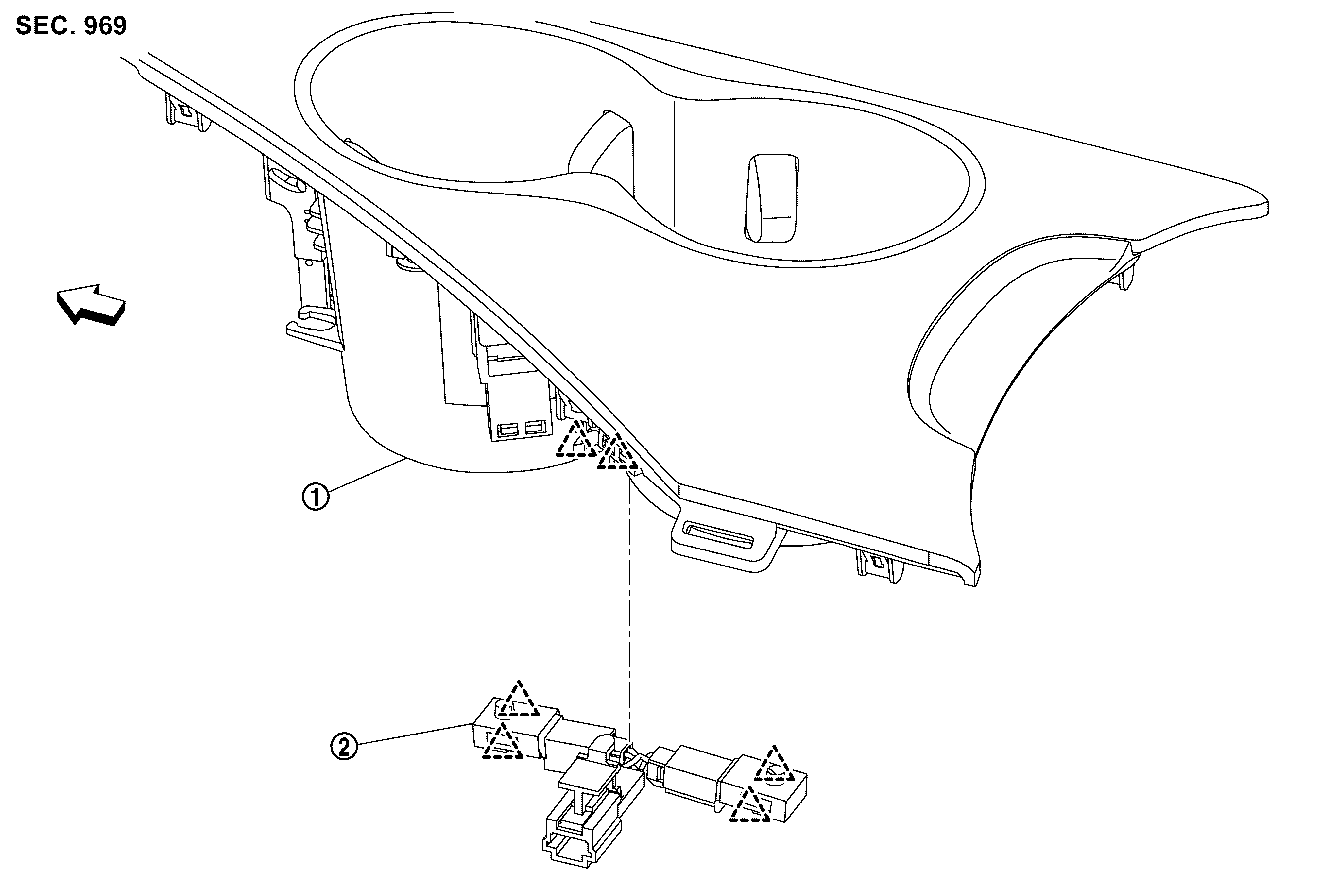

GNSJMLIA7589Z-589Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Console upper finisher

SYMBOL

Cup holder illumination

SYMBOL

: Pawl

SYMBOL

: Vehicle front
