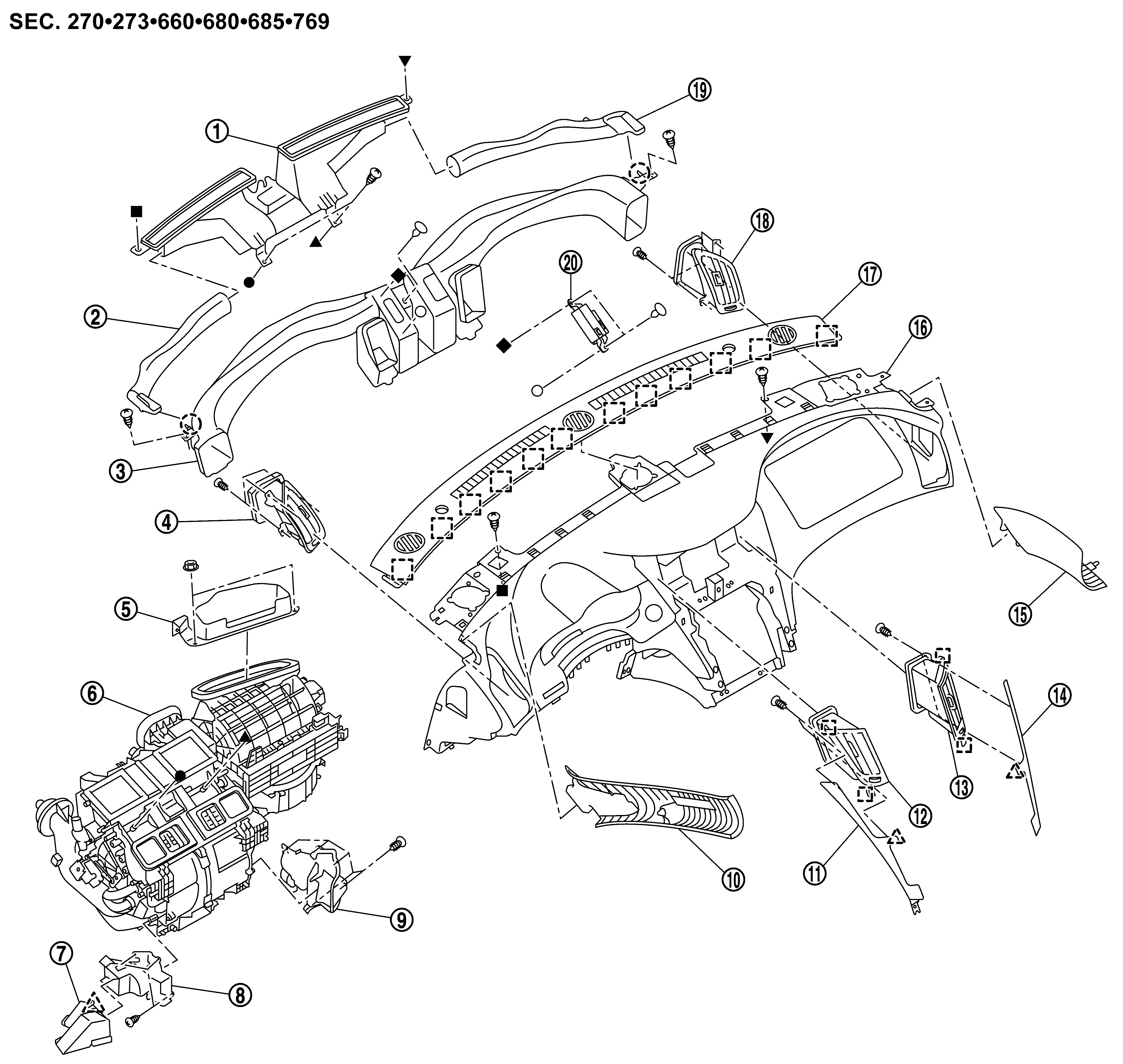

Exploded View: Front
WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Front defroster nozzle |
|
Side defroster nozzle LH |
|
Ventilator duct |
|
|
Side ventilator grille LH |
|
Intake cover |
|
A/C unit assembly |
|
|
Heater duct |
|
Foot duct LH |
|
Foot duct RH |
|
|
Side defroster duct (front pillar garnish) LH |
|
Instrument finisher D |
|
Center ventilator grille LH |
|
|
Center ventilator grille RH |
|
Instrument finisher C |
|
Side defroster duct (front pillar garnish) RH |
|
|
Instrument panel assembly |
|
Front speaker grille |
|
Side ventilator grille RH |
|
|
Side defroster nozzle RH |
|
Ionizer |
||
|
|
: Clip |
||||
|
|
: Pawl |
||||
|
|
: Metal clip |
||||
|
|
|||||
