Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front bumper fascia. Refer to Removal and Installation .
  2. Disconnect ICC sensor connector.

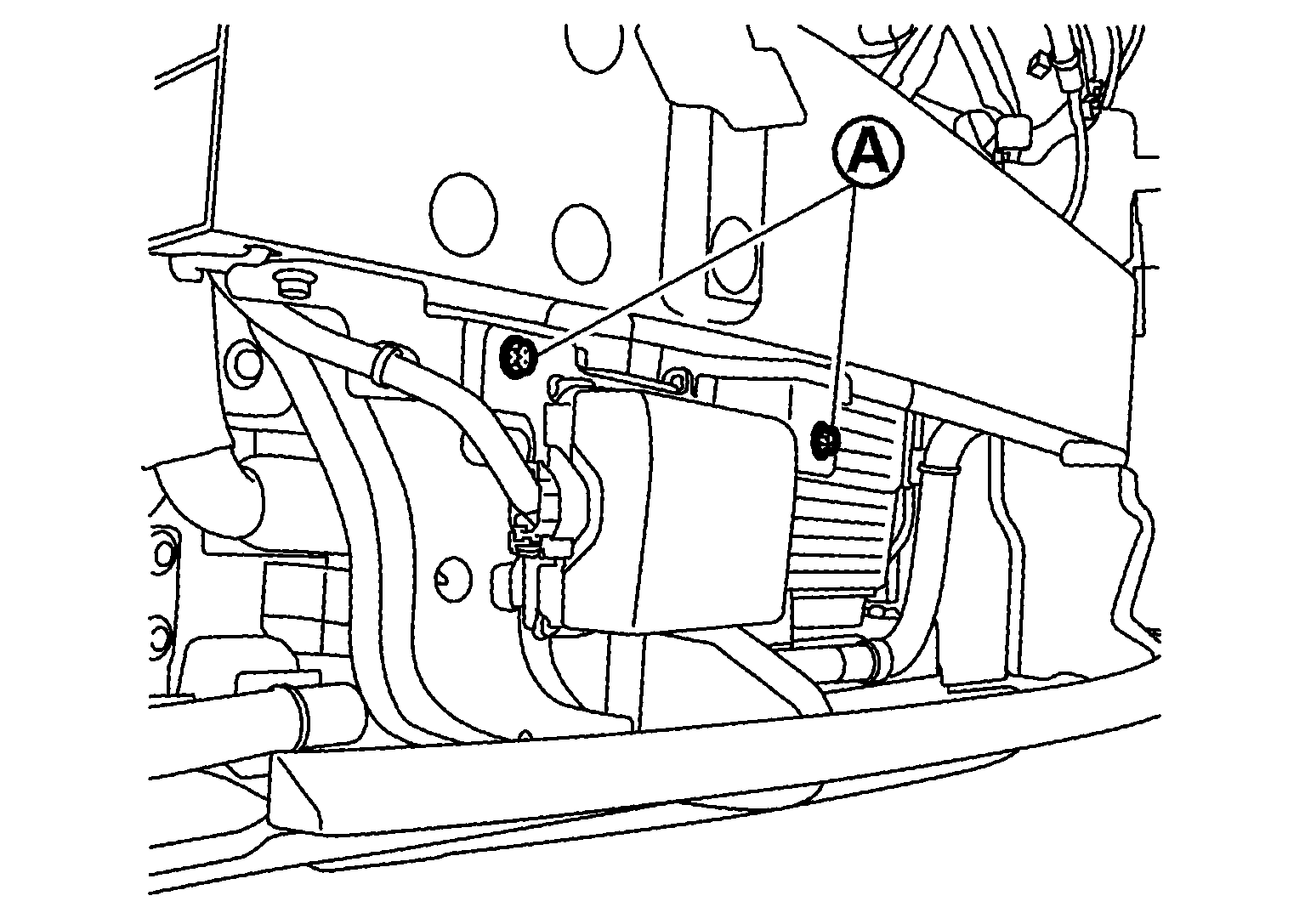

  3. Remove mounting bolts SYMBOL of bracket A to remove ICC sensor with bracket A.
    GNSJSOIA0884Z-884Courtesy of NISSAN NORTH AMERICA, INC.

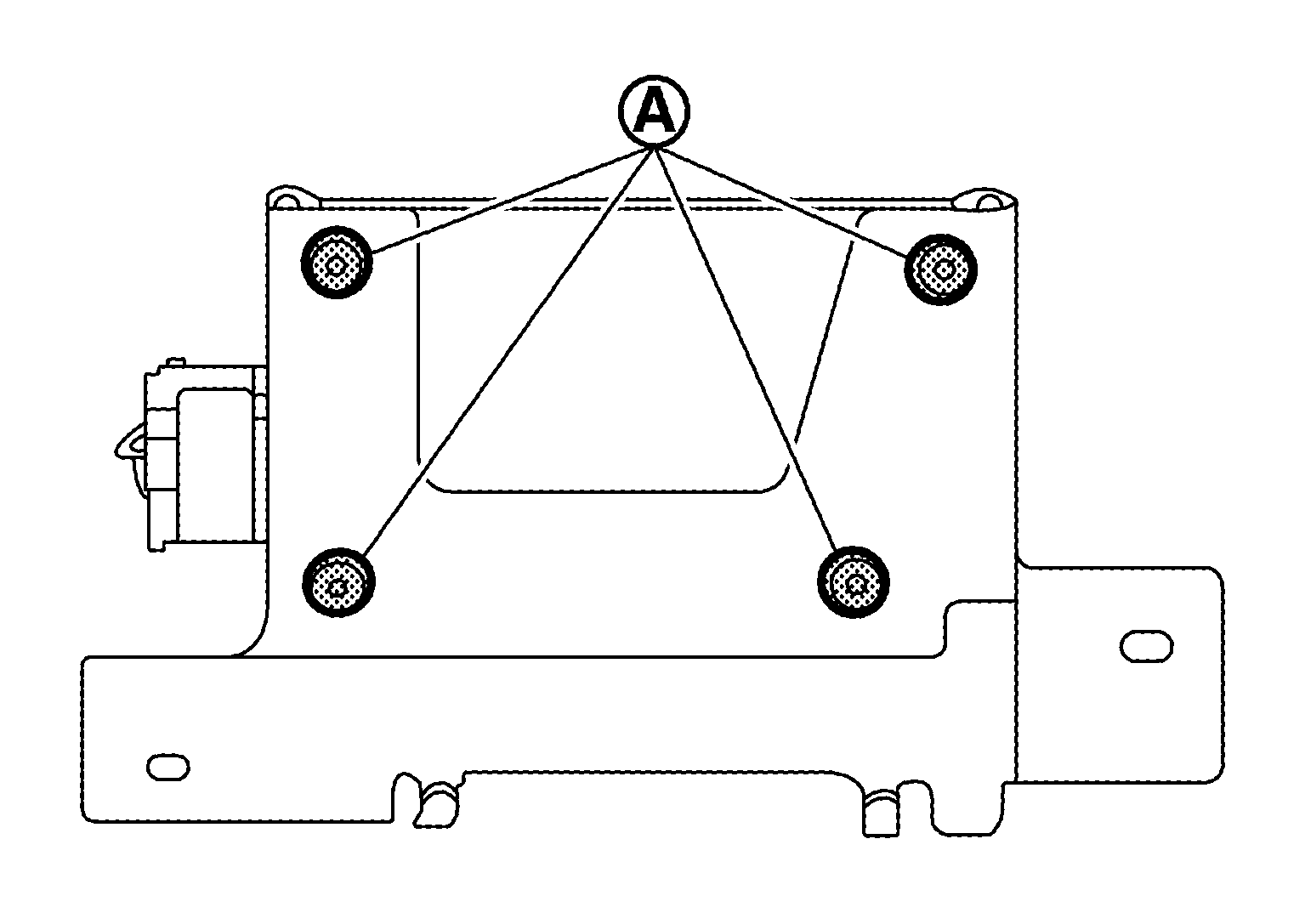

  4. Remove mounting nuts SYMBOL of ICC sensor.
    GNSJSOIA0885Z-885Courtesy of NISSAN NORTH AMERICA, INC.
  5. Remove ICC sensor.
  6. Remove mounting bolts of bracket B to remove bracket B from front bumper reinforcement.
