Method Of Starting

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Turn the audio system OFF.

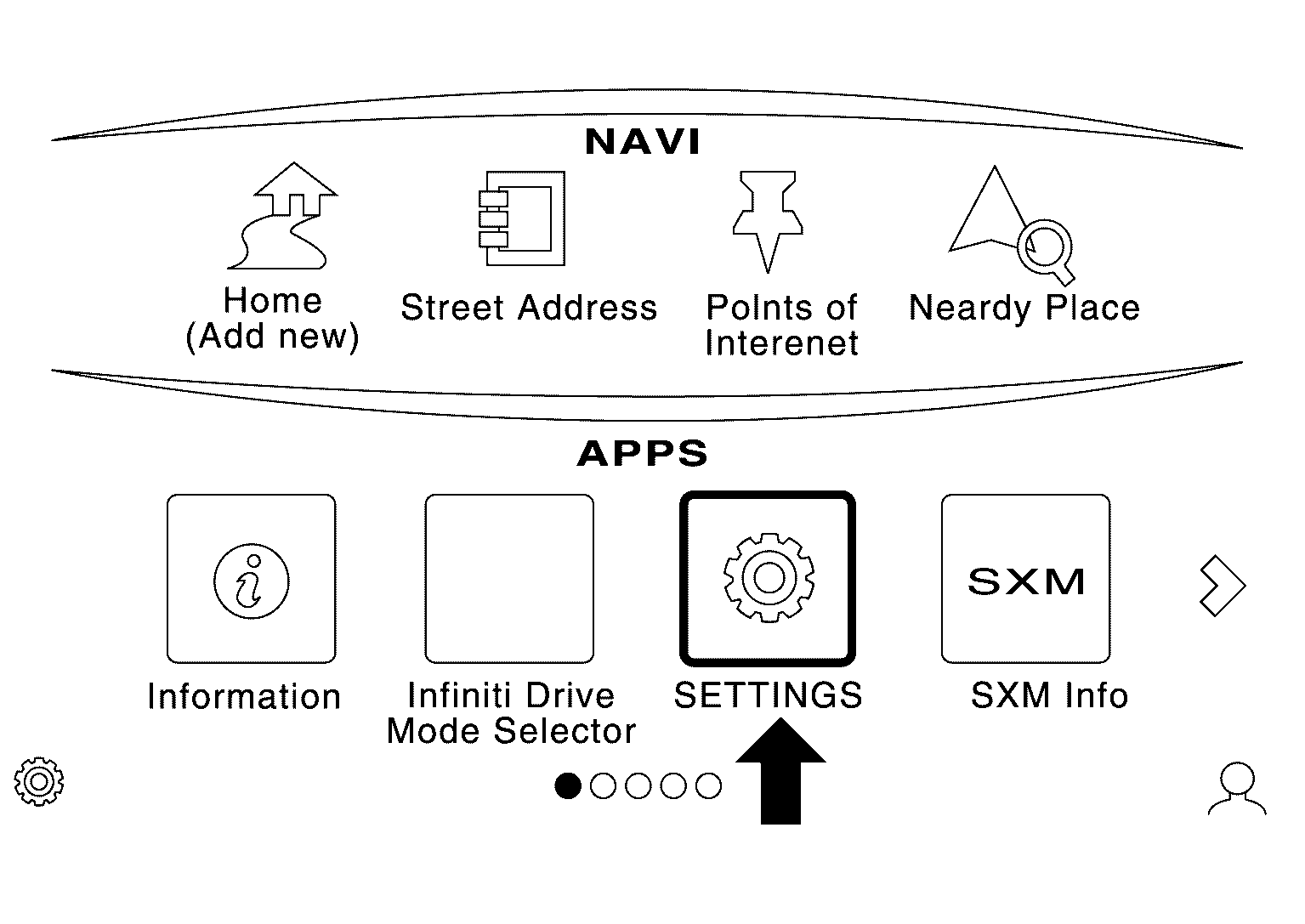

  3. Touch the "SETTINGS" icon and display a settings menu screen.
    GNSJSNIA6148Z-148Courtesy of NISSAN NORTH AMERICA, INC.

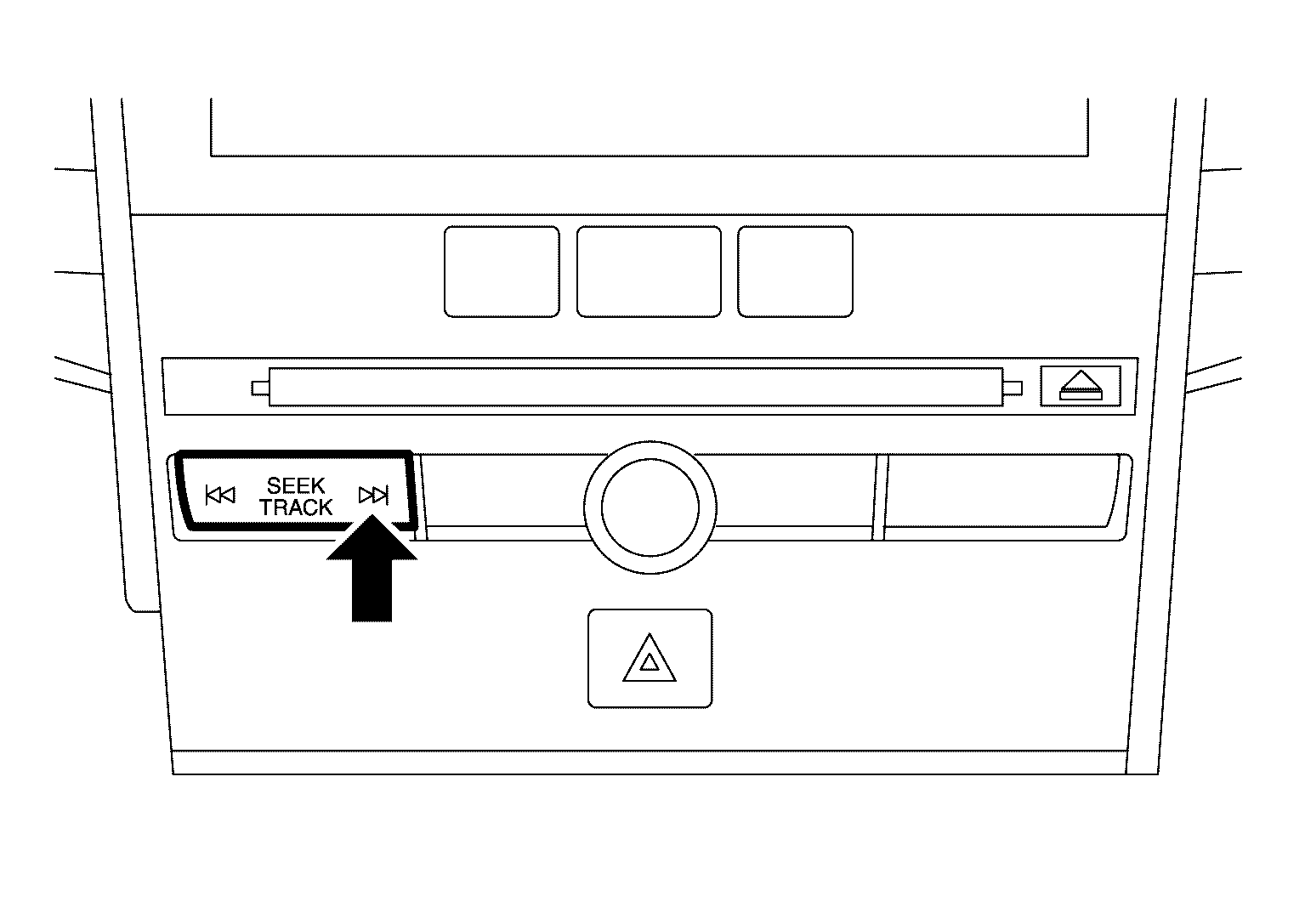

  4. Press the "Seek/Track Up" switch at least 3 times. (Within 15 seconds after the settings menu screen display.)
    GNSJSNIA6149Z-149Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: When press the "Seek/Track Up" switch more than 4 times, a self-diagnosis mode is not started. press the "MENU" switch again.

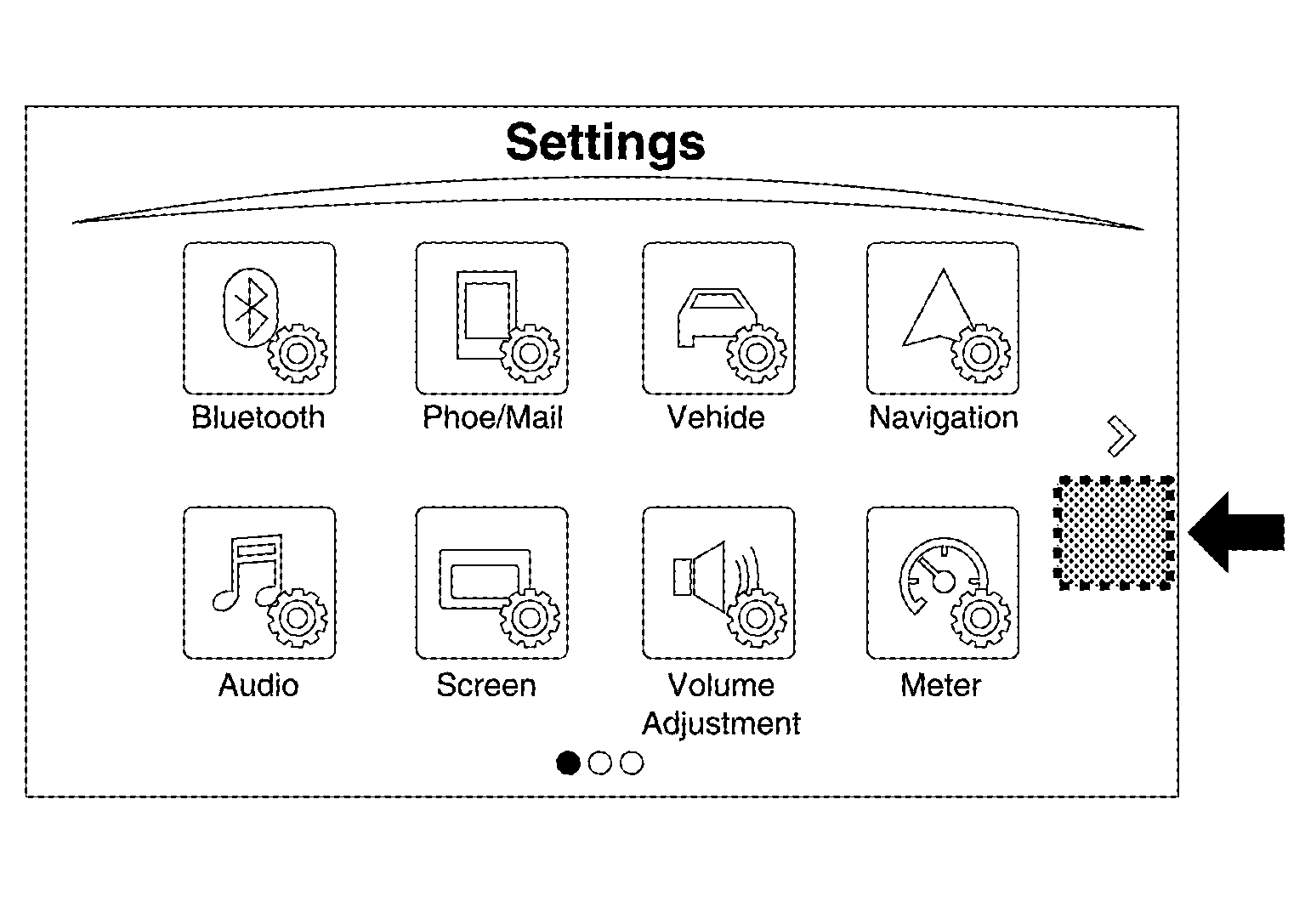

  5. Touch the screen (area of the figure) for 3 seconds.
    GNSJSNIA6196Z-196Courtesy of NISSAN NORTH AMERICA, INC.
  6. The trouble diagnosis initial screen is displayed, and then the items of "Self Diagnosis" and "Confirmation/Adjustment" can be selected.
NOTE: When a diagnostic screen is not displayed, press the "MENU" switch. And then, restart from the procedure of Step 3.
